4-OPERATINGINSTRUCTIONS

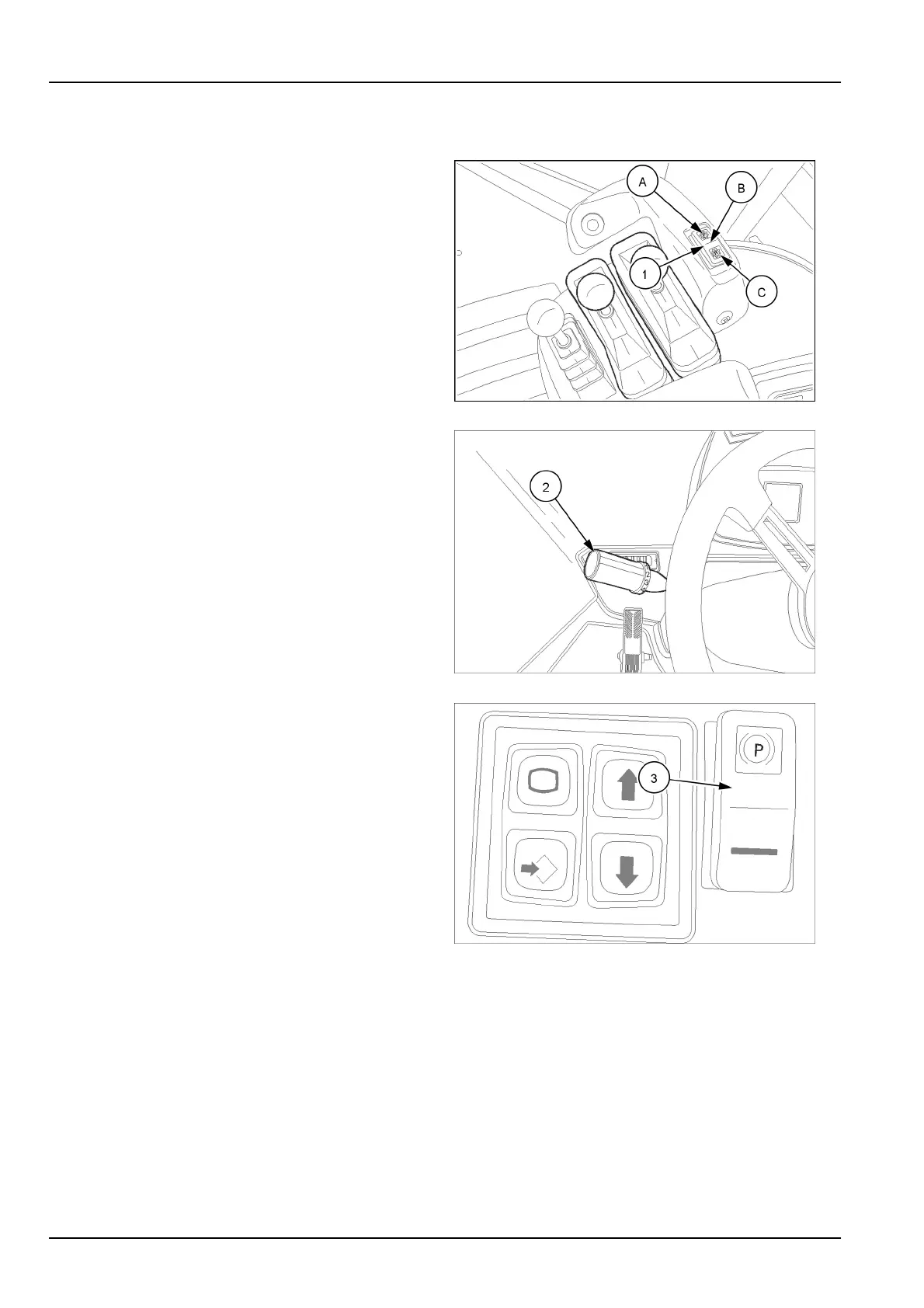

Auxiliaryforward,neutral,reverse(F-N-R)
switchwiththreefunctionvalvethreelevers
1.ThreeLeverAuxiliaryF-N-Rswitch
A.Forward
B.Neutral
C.Reverse
RCPH10WHL110BAL5
ToactuatetheauxiliaryF-N-Rswitchthefollowing
conditionsMUSTbemet:
1.Themachinemustbestopped.
2.Theenginemustberunning.
3.TheauxiliaryF-N-RSwitch(1)mustbeinNeutral(B).
4.Thestandardtransmissioncontrollever(2)mustbein
neutral.
RCPH10WHL116BAL6
5.Theparkingbrakemustbereleased(3).
RCPH10WHL019BAL7
4-22
