Case 1121F - Page 333

8-SPECIFICATIONS
LEEN11T0120FA5
1021FXRSpecications-3.6m³(4.75yd³)Bucket
Bolt-onEdgeBucket
w/TeethBucket
ISOBucketSpecications
Struck3.11m³(4.07yd³)2.96m³(3.87yd³)
Heaped
3.63m³(4.75yd³)3.49m³(4.56yd³)
Bucketwidth(maximumouter)3195mm(1258in)3195mm(125.8in)

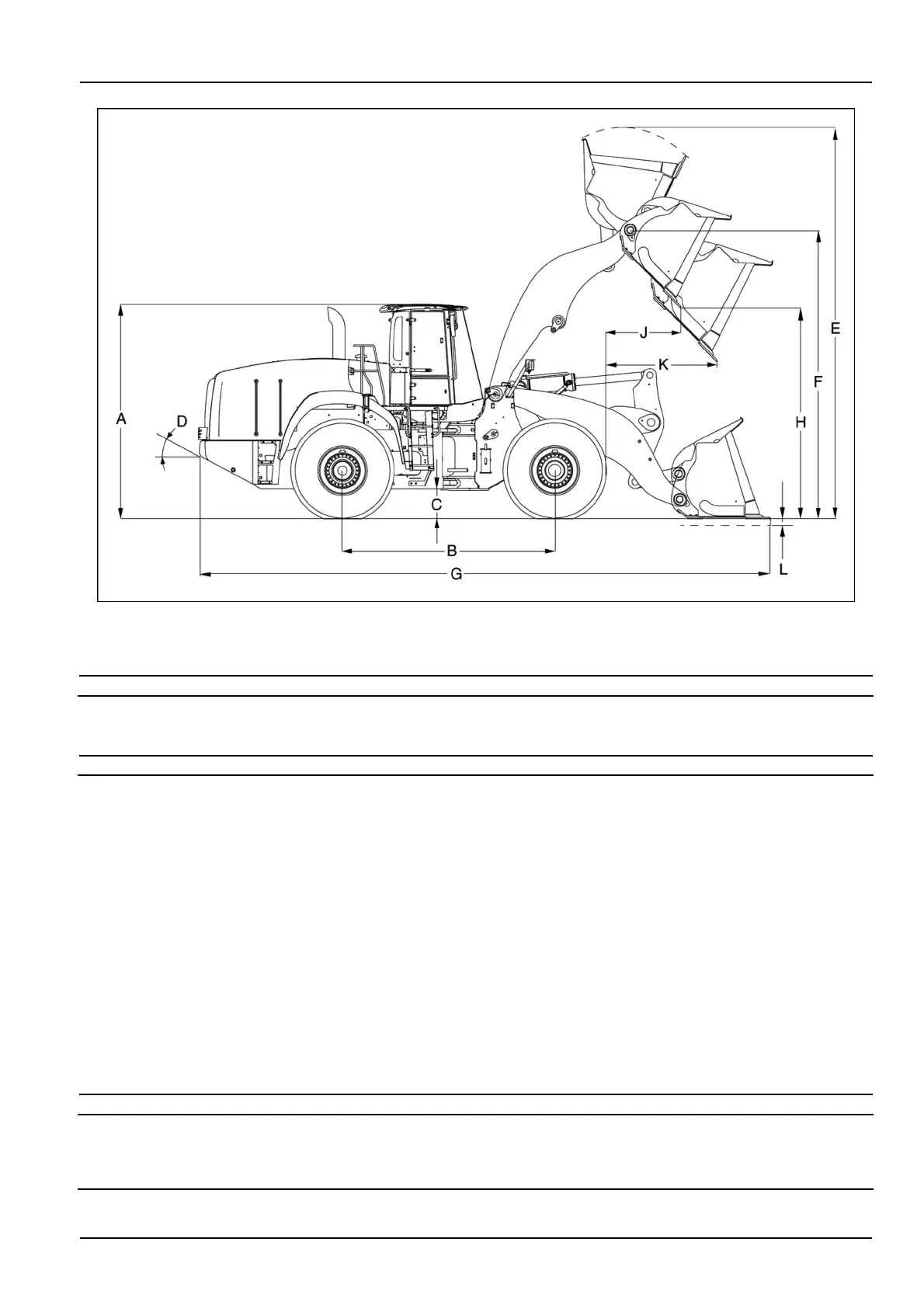

DimensionalOutlineSpecications
A(topofcabheight)3573mm(140.6in)3573mm(140.6in)
B(wheelbase)3550mm(139.8in)3550mm(139.8in)
C(groundclearance)509.4mm(20.1in)509.4mm(20.1in)
D(rearangleofdeparture)34°34°
Overallwidthwithbucketguard2990mm(117.7in)2990mm(117.7in)
Centerlinetreadwidth2250mm(88.6in)2250mm(88.6in)
Turningradius(outsideoftires)6372mm(250.9in)6372mm(250.9in)
Turninganglefromcenter40°40°
Totalturningangle
80°80°
E(fullyraisedwithspillguard)6258mm(246.4in)6258mm(246.4in)
F(hingepin-fullyraised)4825mm(190in)4825mm(190in)
G(overall-bucketlevelonground)9292mm(365.8in)9473mm(372.9in)
H(dump-fullyraised,45°dump)3733mm(147in)3617mm(142.4in)
J(reach-fullyraised,45°dump)1187mm(46.7in)1326mm(52.2in)
K(reach-2.13m(7.0ft),45°dump)2294mm(90.3in)2391mm(94.1in)
L(digdepth)129mm(5.1in)129mm(5.1in)
ISOLoadSpecications
Operatingload6817kg(15028lb)6868kg(15142lb)
Tippingload
Machinestraight
40°turn
16369kg(36087lb)
13633kg(30057lb)
16492kg(36358lb)
13737kg(30285lb)
8-23
