Case 1121F - Page 81

3-CONTROLSANDINSTRUMENTS
Hydrauliccontroltransmission
Forward-Neutral-Reverse(FNR)operation
TheF-N-Rfunctionofthetransmissioncontrollevermay
bemovedtotheloadercontrolleverforoperatingef-
ciency.
Allthefollowingstepsarerequiredtousethecontrollever
transmissionshiftfunctions:
1.Servicebrakepressuremustbeatoperatingtemper-
ature.
2.LeftsideF-N-Roftransmissioncontrollevermustbe
inneutral.
3.RightsideF-N-Rswitchmustbeinneutral.
4.Machinespeedmustbezero.
5.Enginemustberunning.
RCPH10WHL109BAL2

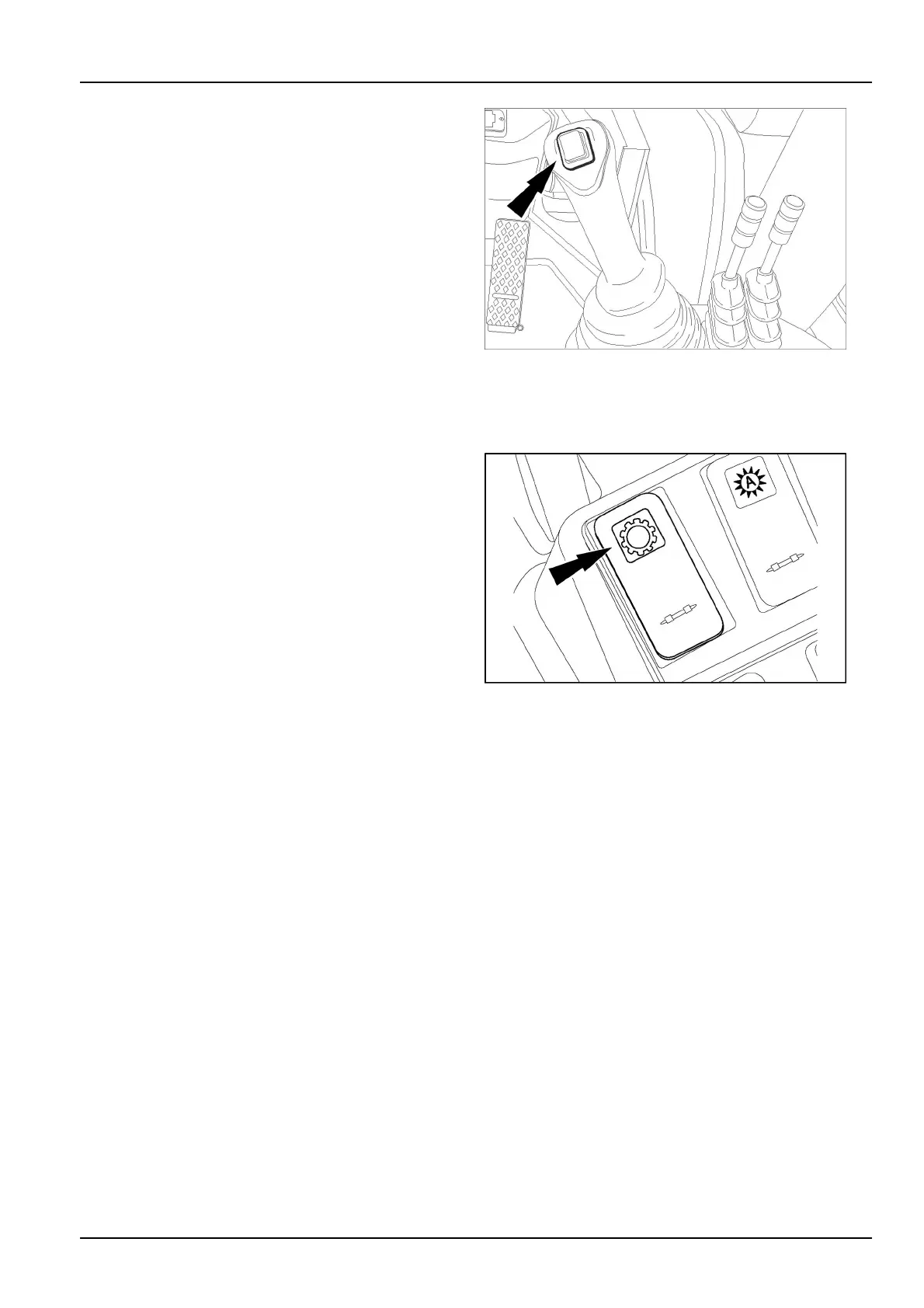

6.Pushdownonthetopofthetransmissionenable
switchlocatedonthesideconsole.Theindicator
lightonthebottomoftheenableswitchwillilluminate
whenactivated.
7.Pushdownonthebottomoftheparkingbrakeswitch
toreleasetheparkingbrake.Thismustoccurwithin8
secondsofenable.(IftheparkingbrakewasNOTset
whenthemachinewasturnedoff,theparkingbrake
switchmustbecycledatthisstep).
8.PlacetherightsideF-N-RswitchineitherForwardor
Reversetomovethemachine.Thismustoccurwithin
8secondsofenable.
RCIL10WHL177BAL3
3-15
