Case 1121F - Page 88

3-CONTROLSANDINSTRUMENTS
Twofunctionvalve-twocontrollevers

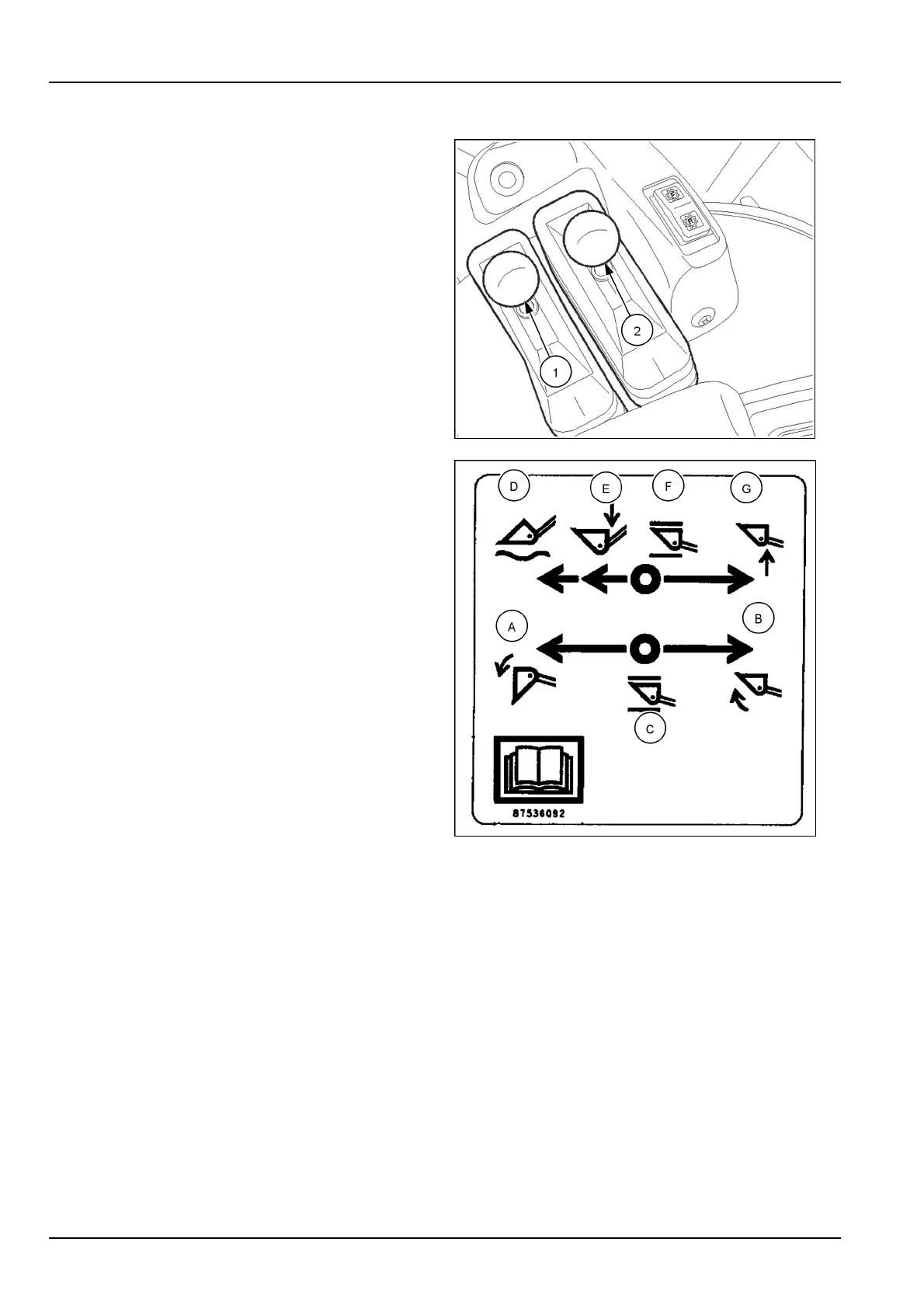

1.BUCKETCONTROL
A.DUMP
B.ROLLBACK
C.HOLD-Theloaderarmsandbucketwillnotmove
whenthecontrolleverisintheHOLDposition.
Whenreleased,thecontrolleverwillautomatically
returntotheHOLDposition.Youmustmanually
movethecontrolleverfromtheFLOATpositionto
theHOLDposition
2.LIFTARMCONTROL
D.FLOAT(Detent)Thisisadetentposition.Whenin
theFLOAT(Detent)position,theloaderbucketcan
followthelevelofthegroundwithoutmovementof
thecontrollever.
E.LOWER
F.HOLD
G.RAISE
