3-CONTROLSANDINSTRUMENTS

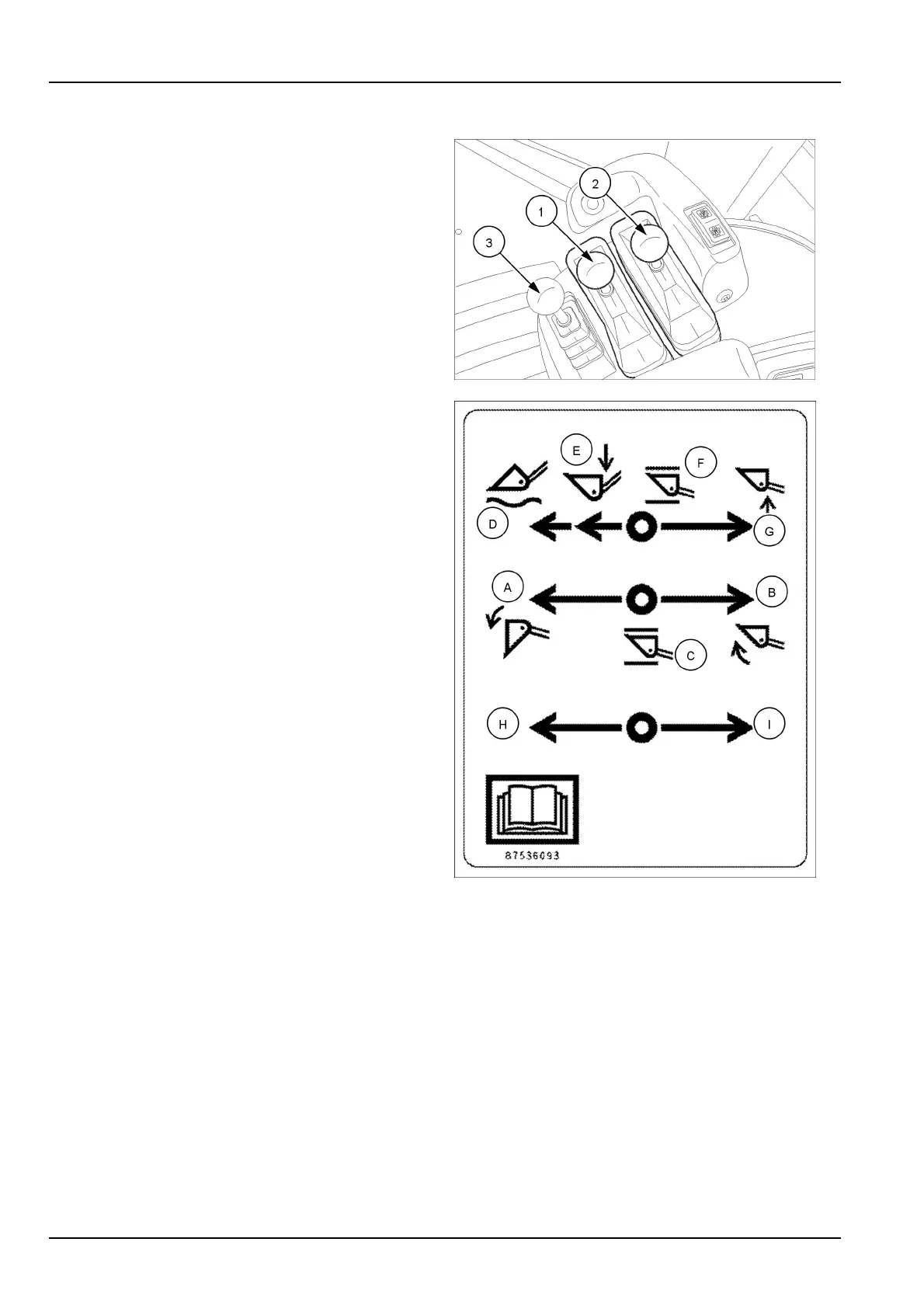

Threefunctionvalve-threecontrollevers
1.BUCKETCONTROL
A.DUMP
B.ROLLBACK
C.HOLD-Theloaderarmsandbucketwillnotmove
whenthecontrolleverisintheHOLDposition.
Whenreleased,thecontrolleverwillautomatically
returntotheHOLDposition.Youmustmanually
movethecontrolleverfromtheFLOATpositionto
theHOLDposition.
2.LIFTARMCONTROL
D.FLOAT(DETENT)-Thisisadetentposition.
WhenintheFLOAT(detent)position,theloader
bucketcanfollowthelevelofthegroundwithout
movementofthecontrollever
E.LOWER
F.HOLD-Theloaderarmsandbucketwillnotmove
whenthecontrolleverisintheHOLDposition.The
controlleverwillautomaticallyreturntotheHOLD
positionwhenreleased.Youmustmanuallymove
thecontrolleverfromtheFLOATpositiontothe
HOLDposition.
G.RAISE
3.AUXILIARYCONTROL
H.AUXILIARYFUNCTION
I.AUXILIARYFUNCTION
