M-Series Operator’s Manual 4/9/2015 10-31
Thread Milling (F8 in the Canned Cycle Menu)

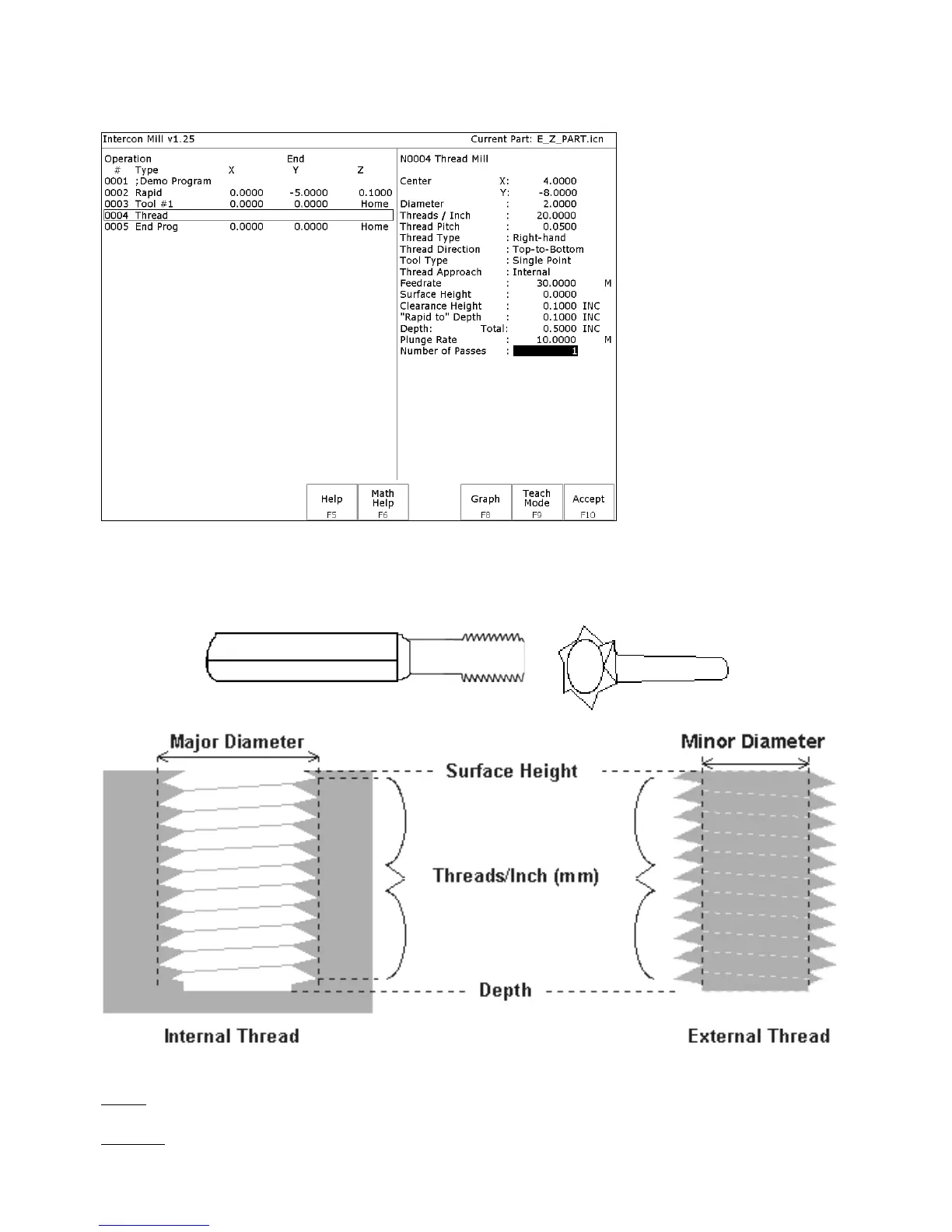

When you press F8 - Thread from the canned cycle menu, the following screen is displayed:
Multiple Thread Mill Single Thread Mill
The parameters on the screen correspond to the following:
Where:
Center: X and Y coordinates of the center of the thread mill operation.
Diameter: Major diameter of thread for internal thread milling and minor diameter for external thread milling.
To Next Page
