Intercon Tutorial #1
This is a step-by-step instructional example of going from blueprint to part with Intercon. The tool path to be created
is for the part shown in Figure 1. For instructional purposes, this part will be programmed to cut into stock held in 3
fixtures, 6 inches apart along the X-axis.

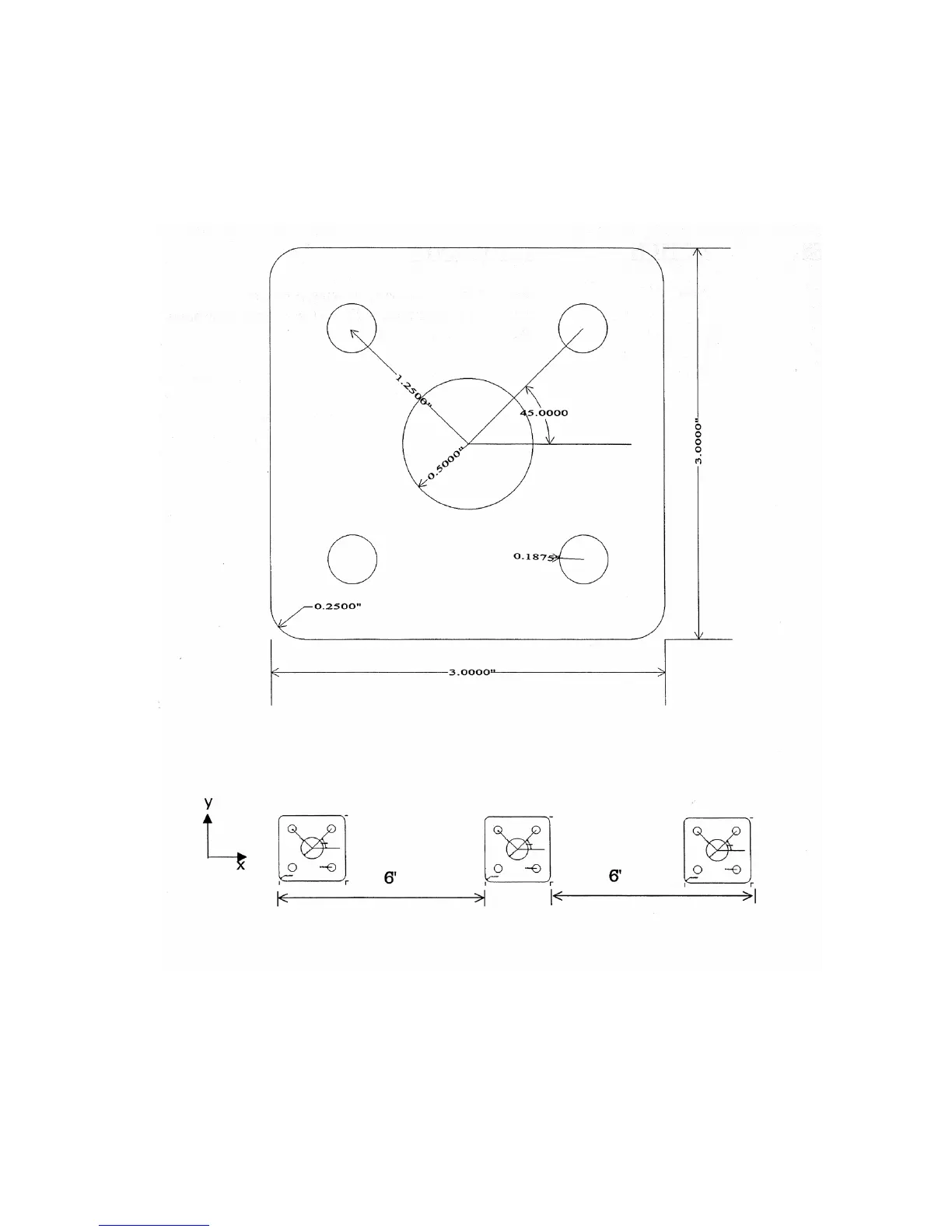

FIG. 1 Blueprint of flange part and the 3 fixtures.
