M-Series Operator’s Manual 4/9/15
G84 Feed Spindle CCW, then Dwell
(Set with the P parameter)
Feed Tapping (Right-hand
thread)
G85 Feed ---------- Feed Boring cycle
G89 Feed Dwell (Set with the P
parameter)
Feed Boring cycle
Table 1. Canned drilling, boring and tapping cycles

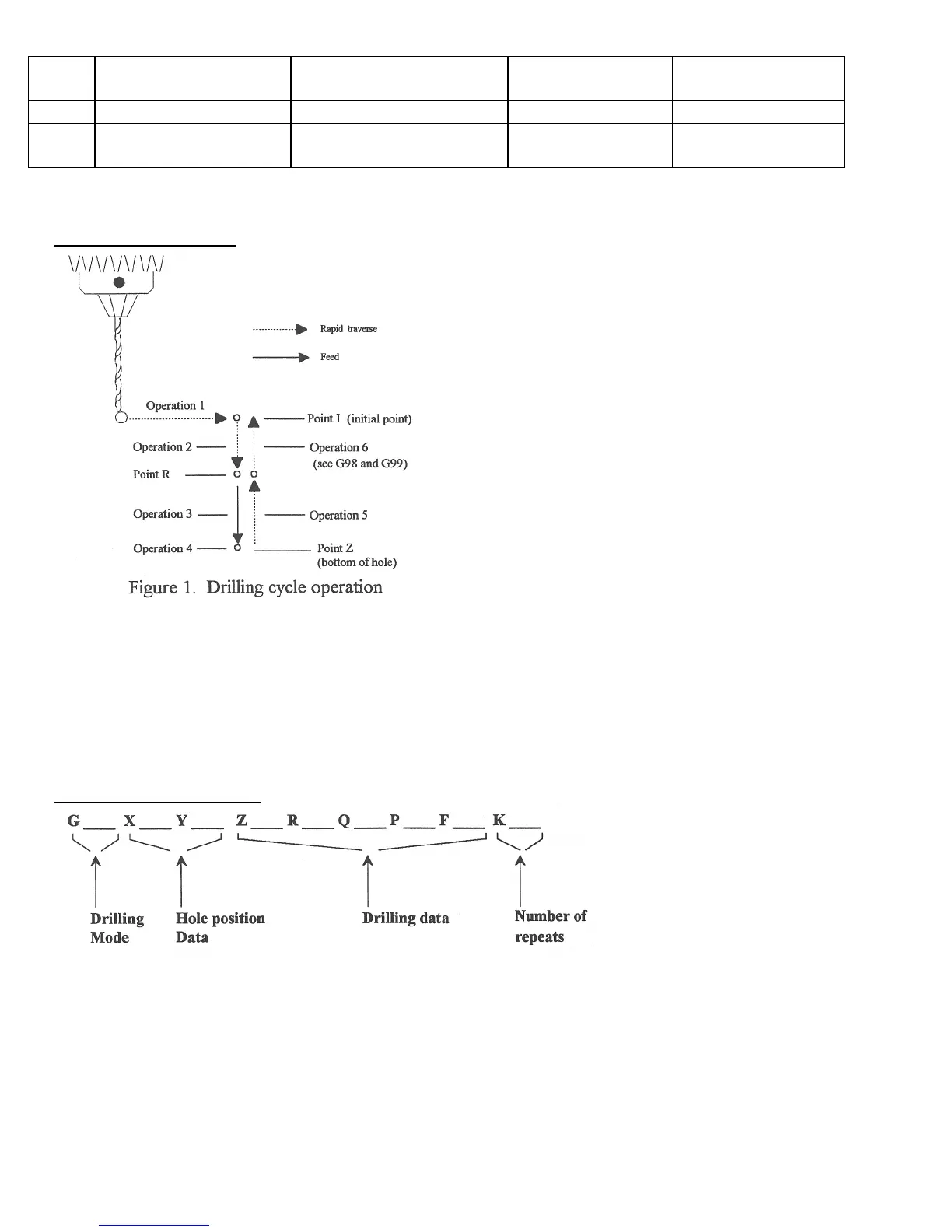

Canned Cycle Operation
Operation 1: Position the X, Y axes.
Operation 2: Rapid traverse to the position labeled R.
Operation 3: Machine hole.
Operation 4: Bottom hole operation.
Operation 5: Return to point R.
Operation 6: Rapid traverse to initial point.
Canned cycle G-code syntax
(Cycle codes do not have to be on the same line)
G ____ Canned cycle G-code from table 1.
X ____ X position of the hole to be drilled.
Y ____ Y position of the hole to be drilled.
