1. When entering into the Calibration page, be sure to check the
interface connection on the rear panel is correct.
2. Calibration points will be different for other models, please operate
it following the instructions displayed.
1. When in APG I MEAS page and the wires are correctly connected, tap “START” next to I
source point 1 to calibrate the first point current. The system will set the output voltage
on the rear panel to -9V (TP110). Use DVM1 to measure the Power Supply. Enter the
measured current to position [1] and tap “SEND” to confirm.
2. Next, tap “START” next to I source point 2 to calibrate the second point current. The
system will set the output voltage on the rear panel to 9V (TP110). Use DVM1 to
measure the Power Supply. Enter the measured current to position [2] and tap “SEND”
to confirm.

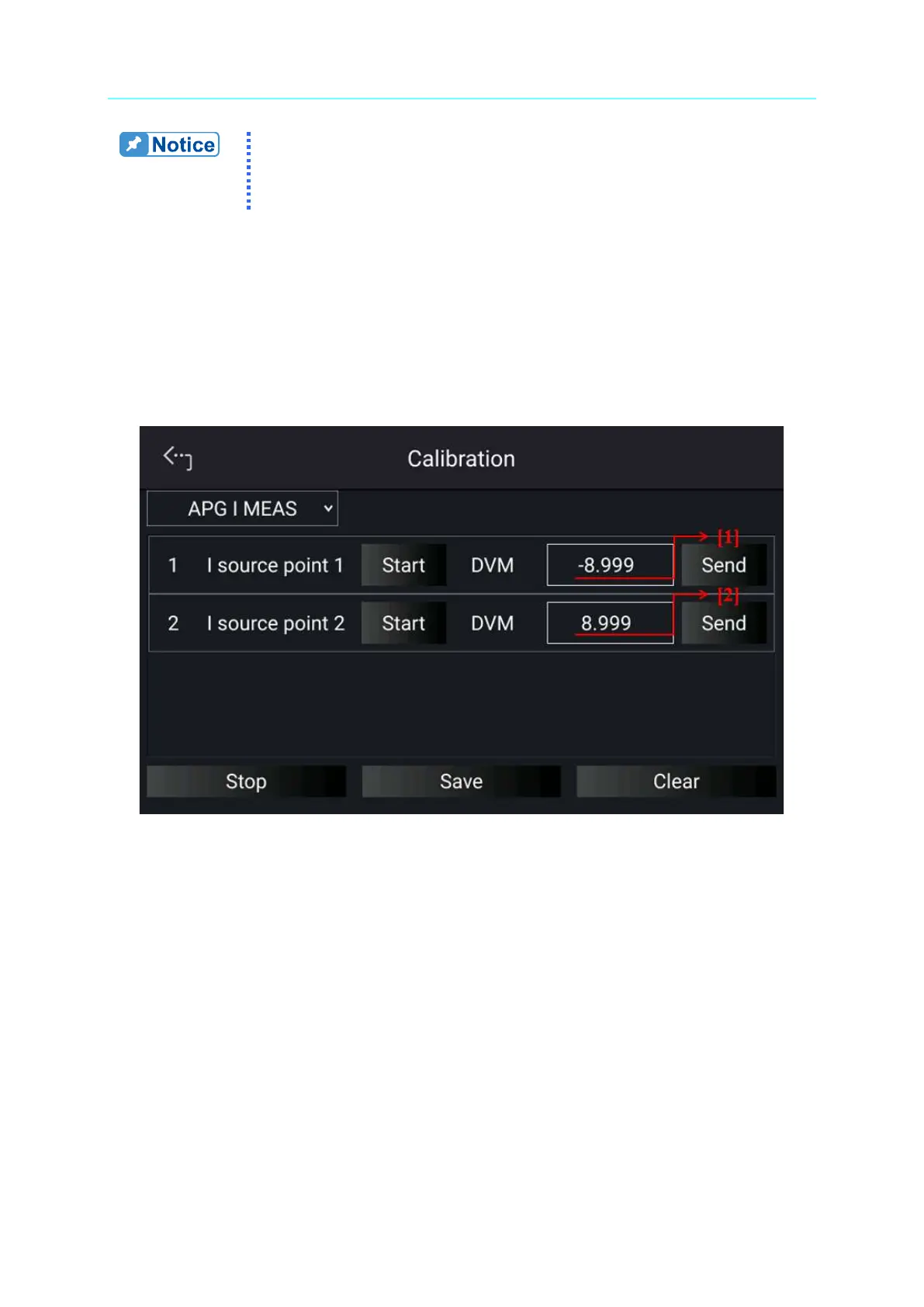

Figure 3-81
3. When the APG current calibrations are done, tap “STOP” to exit the calibration
procedure. To save the calibration data, tap “SAVE”, and tap “CLEAR” to delete the
calibration parameters if there is no need to save them as Figure 3-81 shows.
To Next Page
