4.
For 0-100% load variation with constant nominal line voltage.
5.
Current mode ripple is measured from 10% to 100% of rated output voltage full
current.
6.
Efficiency at 480Vac input Voltage and Full load output (Vo Max).
7.
Maximum drift over 30 minutes with constant line, load, and temperature after
power on.
8.
Maximum drift over 8 hours with constant line, load, and temperature after 30
minute warm-up.
9.
Change in output per 0C change in ambient temperature with constant line and
load.
10.
The fall rate will be affected by the discharge rate of the output capacitors
especially under no load condition. (For 220Vac No load VS.R(max) = 50V/ms,
Full load VS.R(max) = 25V/ms)
11.
From 20 Hz to 20 MHz for peak-to-peak noise; from 20 Hz to 300 kHz for rms
noise. (* 62180D-100
、
62180D-600 Measured across a 44nF & 104.7μF capacitor
at the output terminal.) (Reference TN board Capacitor)
12.

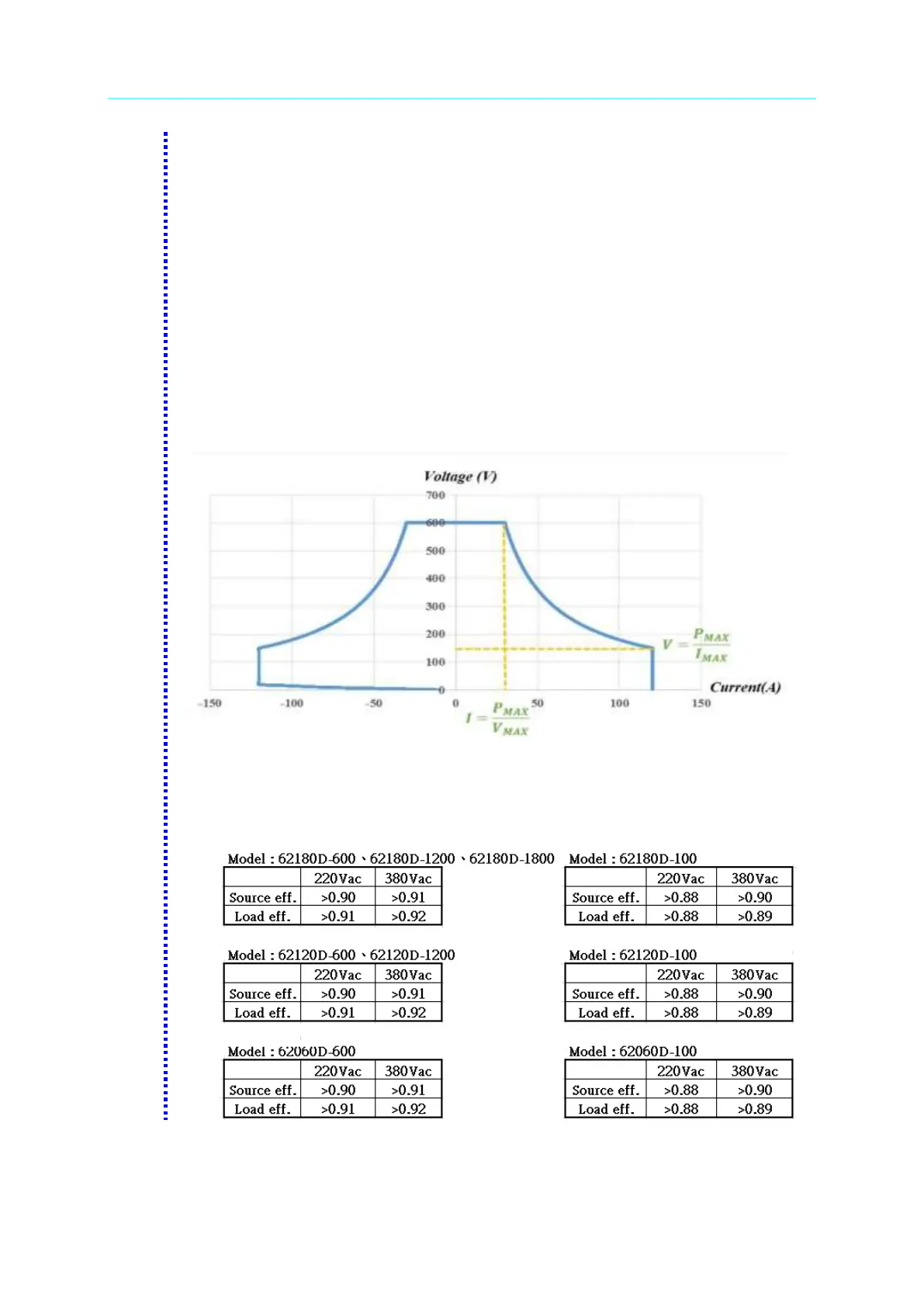

VO & IO Output range(ex: 62180D-600)
Constant Power: Equipped with wide voltage and wide current range for use
13.
Efficiency at 220Vac & 380Vac input Voltage and Full load output (Vo Max).
14.
Use SCPI Commands to get values.
15.
Transient Response Time < 0.5ms at ≥
450Vdc output Voltage.
