Configuring VMPS
VMPS Configuration Example
Figure 10-5 shows a network with a VMPS server switch and VMPS client switches with
dynamic-access ports. In this example, these assumptions apply:
• The VMPS server and the VMPS client are separate switches.
• The Catalyst 6500 series Switch A is the primary VMPS server.
• The Catalyst 6500 series Switch C and Switch J are secondary VMPS servers.
• End stations are connected to the clients, Switch B and Switch I.
• The database configuration file is stored on the TFTP server with the IP address 172.20.22.7.

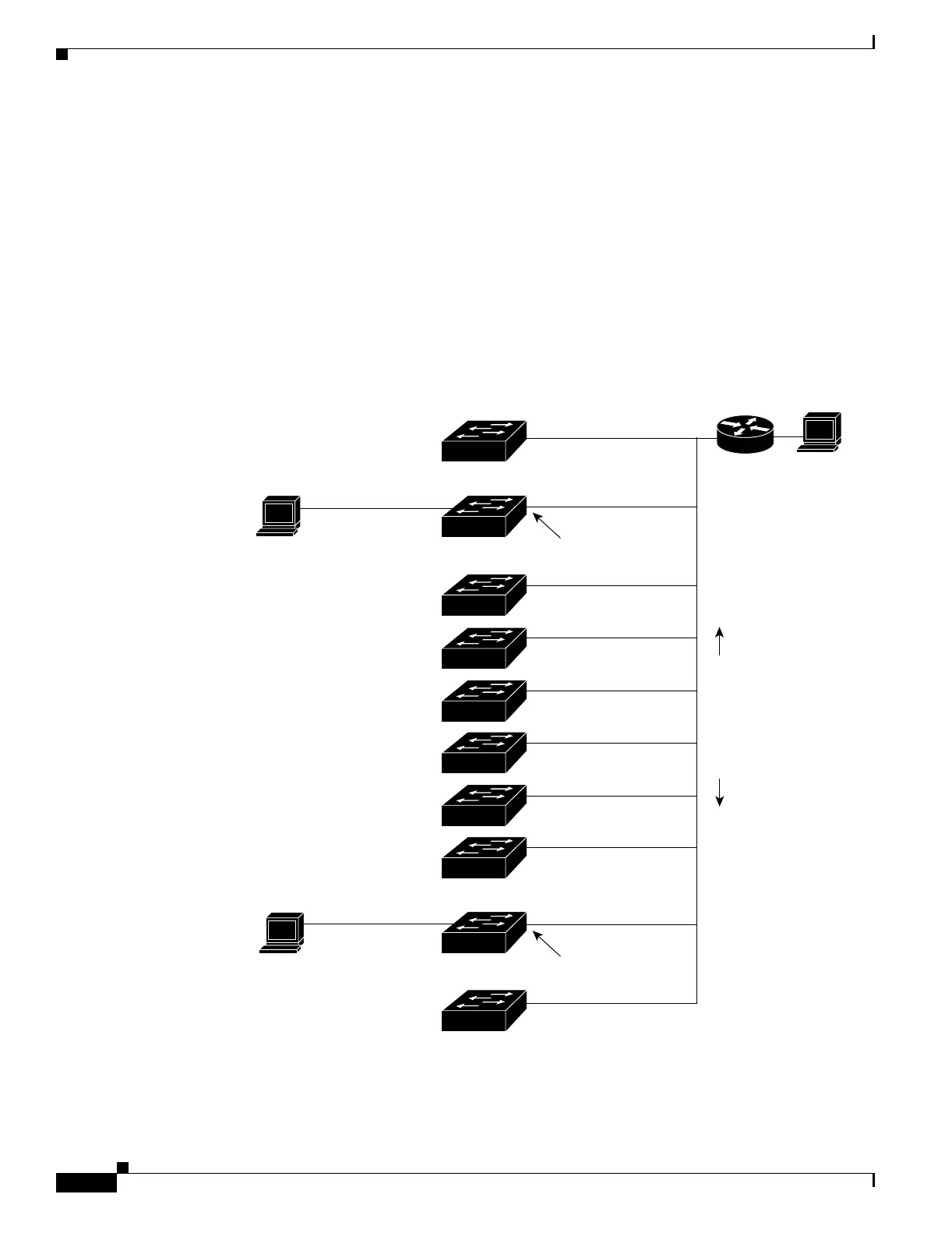

Figure 10-5 Dynamic Port VLAN Membership Configuration
Primary VMPS
Server 1
Catalyst 6500 series
Secondary VMPS
Server 2
Catalyst 6500 series
Secondary VMPS
Server 3
172.20.26.150
172.20.26.151
Catalyst 6500 series switch A
172.20.26.152
Switch C
Ethernet segment
(Trunk link)
172.20.26.153
172.20.26.154
172.20.26.155
172.20.26.156
172.20.26.157
172.20.26.158
172.20.26.159
Client switch I
Client switch B
End
station 2
End
station 1
TFTP server
Dynamic-access port
Dynamic-access port
Switch J
Switch D
Switch E
Switch F
Switch G
Switch H
172.20.22.7
101363t
Trunk port
Trunk port
Router
