Chapter 26 Configuring QoS
Understanding QoS

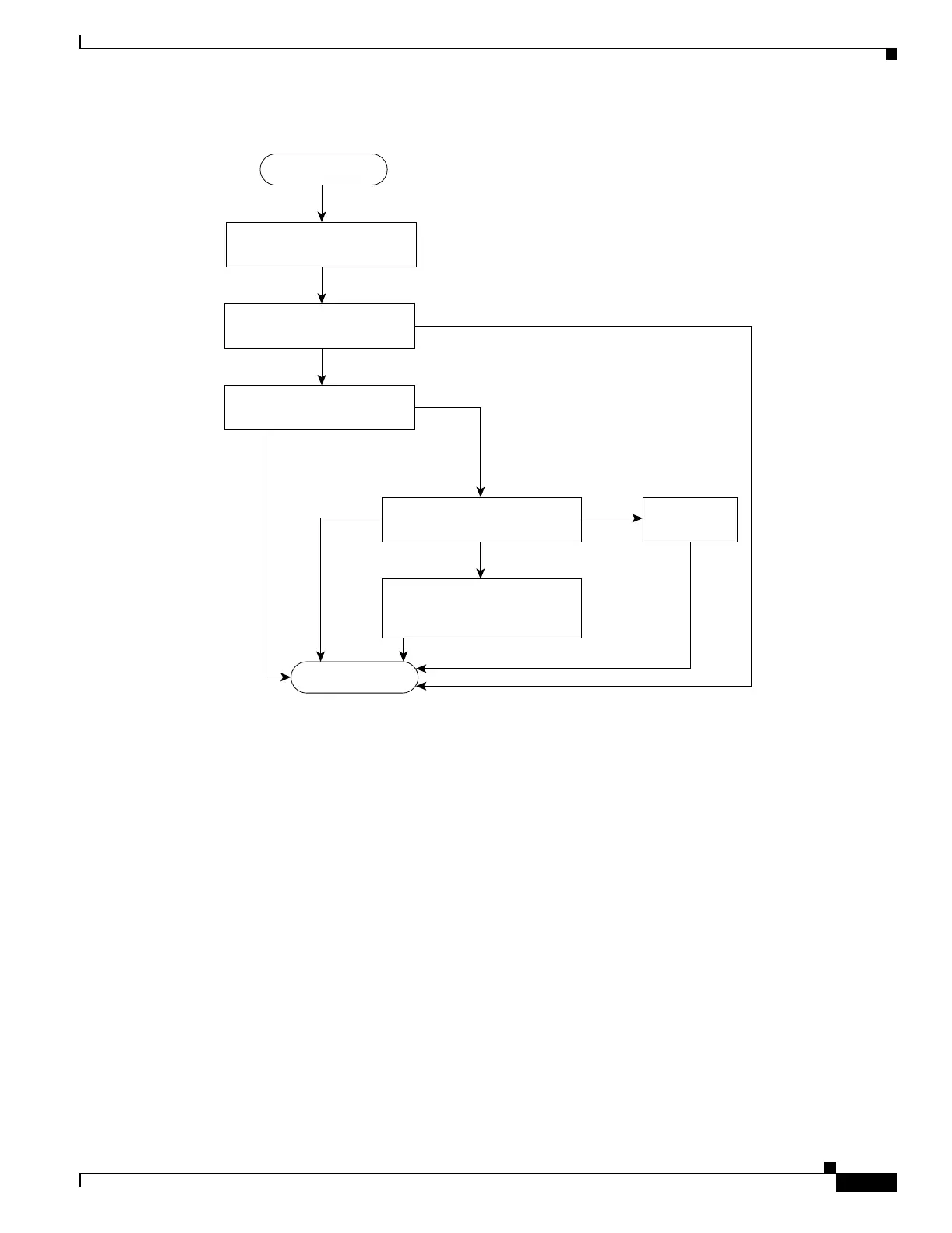

Figure 26-4 Ingress, Single-Rate Policing and Marking Flowchart
Mapping Tables
During QoS ingress processing, the switch represents the priority of all traffic (including non-IP traffic)
with an QoS label based on the DSCP or CoS value from the classification stage:
• During ingress classification, QoS uses configurable mapping tables to derive a corresponding
DSCP or CoS value from a received CoS, DSCP, or IP precedence value. These maps include the
CoS-to-DSCP map and the IP-precedence-to-DSCP map. You configure these maps by using the mls
qos map cos-dscp and the mls qos map ip-prec-dscp global configuration commands.
On an ingress port configured in the DSCP-trusted state, if the DSCP values are different between
the QoS domains, you can apply the configurable DSCP-to-DSCP-mutation map to the port that is
on the boundary between the two QoS domains. You configure this map by using the mls qos map
dscp-mutation global configuration command.
• During ingress policing, QoS can assign another DSCP value to an IP or a non-IP packet (if the
packet is out of profile and the policer specifies a marked-down value). This configurable map is
called the policed-DSCP map. You configure this map by using the mls qos map policed-dscp
global configuration command.
86835
Ye s
Ye s
No
No
Pass
through Drop
Mark
Get the clasification
result for the packet.
Is a policer configured
for this packet?
Check if the packet is in
profile by querying the policer.
Check out-of-profile action
configured for this policer.
Drop packet.
Modify DSCP according to the
policed-DSCP map. Generate
a new QoS label.
Start
Done
