Cisco CRS-1 Series Carrier Routing System Getting Started Guide
Chapter 7 RP Redundancy and Hardware Administration on Cisco IOS XR Software
Configure Routing Interfaces

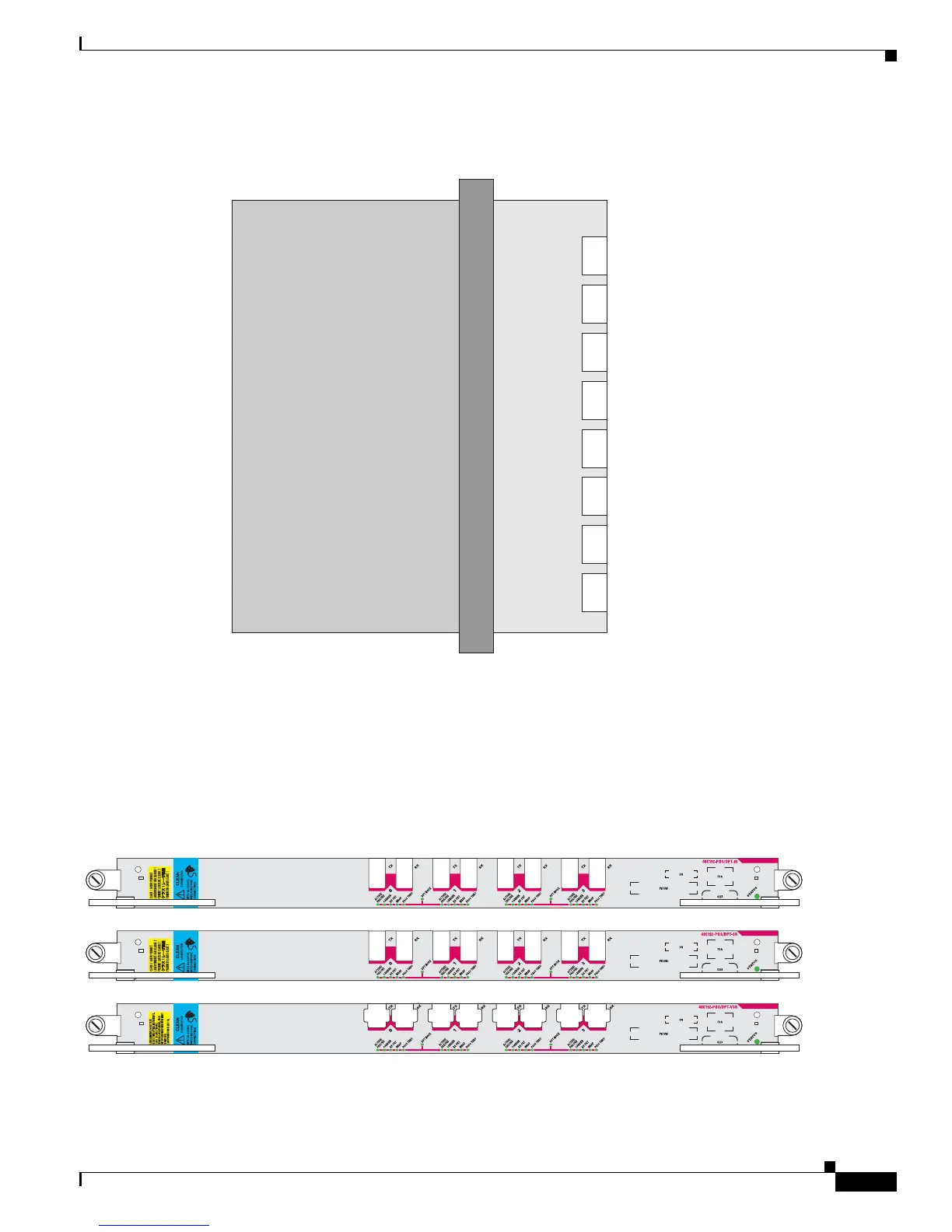

Figure 7-4 MSC and PLIM Connected at the Chassis Midplane
Supported PLIMs
This release of the Cisco IOS XR software supports the following PLIM types:
• Quad OC-192 packet-over-SONET (POS)/Dynamic Packet Transport (DPT) PLIM (see Figure 7-5)
• 16 x OC-48 POS/DPT PLIM (see Figure 7-6 and Figure 7-7)
Figure 7-5 Quad OC-192 POS/DPT Very Short Reach (VSR), Short Reach (SR), and Intermediate Reach (IR) Front Panels
101830
Midplane
Modular Services Card
(Layer 3 line card)
PLIM card
Slots 0–15 Slots PL0–PL15
Physical
interface
"ports"
111852
