Cisco RV120W Administration Guide

Introduction
Product Overview
Cisco RV120W Administration Guide 3
1
Security
The Cisco RV120W implements WPA2-PSK, WPA2-ENT, and WEP encryption,
along with other security features including the disabling of SSID broadcasts,
MAC-based filtering, and allowing or denying “time of day” access per SSID.
Quality of Service
The Cisco RV120W supports Wi-Fi Multimedia (WMM) and Wi-Fi Multimedia
Power Save (WMM-PS) for wireless Quality of Service (QoS). It supports 802.1p,
Differentiated Services Code Point (DSCP), and Type of Service (ToS) for wired
QoS, which can improve the quality of your network when using delay-sensitive
Voice over IP (VoIP) applications and bandwidth-intensive video streaming
applications.

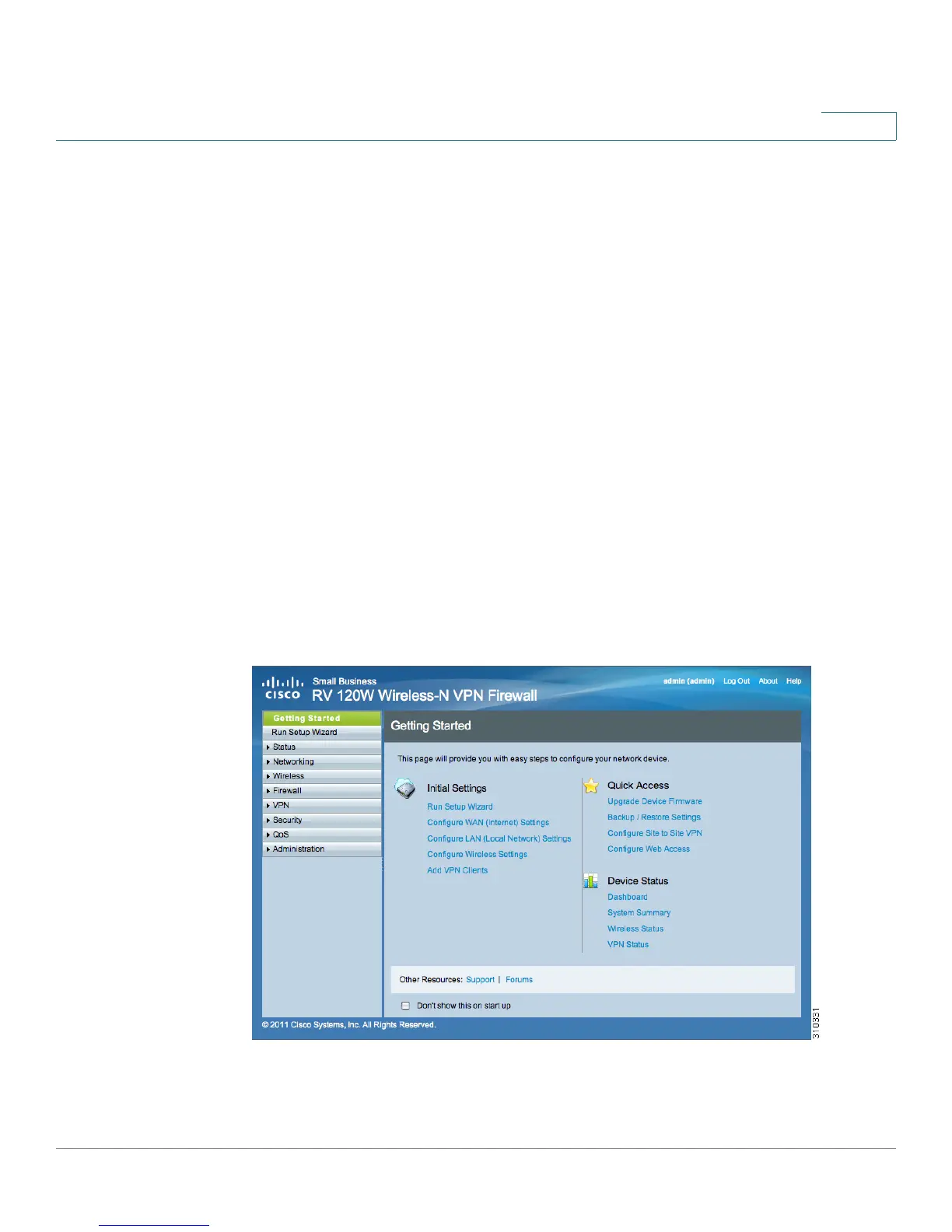

Configuration and Administration
With the Cisco RV120W’s embedded web server, you can configure the firewall’s
settings using the browser-based Device Manager. The Cisco RV120W supports
Internet Explorer, Firefox, and Safari web browsers.

Cisco RV120W Specifications

General

Ethernet LAN	Yes
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
VPN tunnels quantity	10
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Channels quantity	13 channels
WLAN data transfer rate (max)	300 Mbit/s
Input current	1 A
Input voltage	12 V
xDSL connection	No
Dimensions (WxDxH)	150 x 150 x 34 mm
Networking features	Fast Ethernet, WLAN, WAN
Operating temperature (T-T)	32 - 104 °F
Security algorithms	802.1x RADIUS, EAP, WPA2
Antennas quantity	2
Antenna gain level (max)	1.8 dBi
Ethernet LAN (RJ-45) ports	4
Certification	FCC B, CE, IC, Wi-Fi
Product color	Black
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 85 %

Weight and Dimensions

Weight	500 g
