Cisco RV120W Administration Guide

Introduction
Viewing the Help Files
Cisco RV120W Administration Guide 18
1

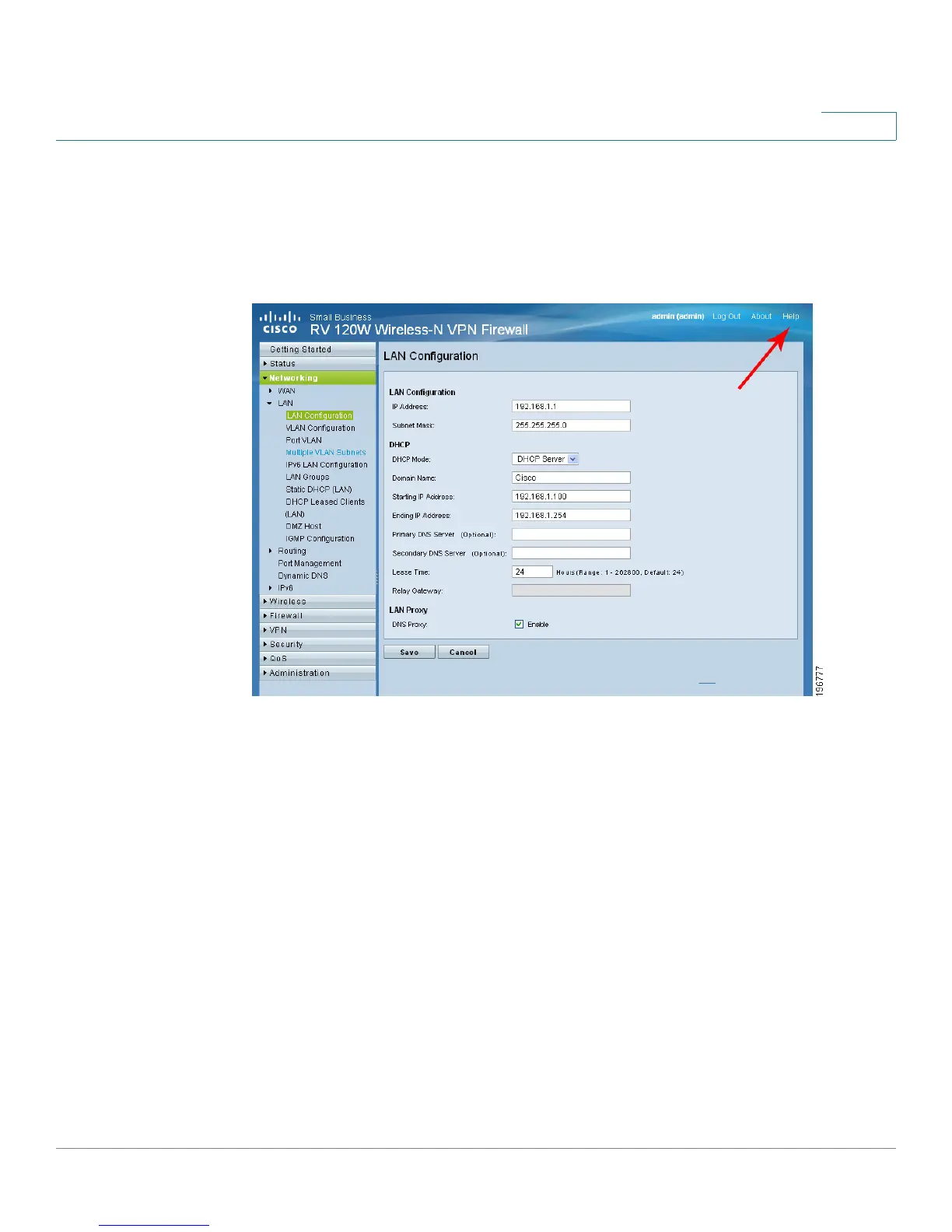

Viewing the Help Files
To view more information about a configuration page, click the Help link near the
top right corner of the page.
Connecting Devices to Your Wireless Network
To connect a device such as a PC or printer to your wireless network, you must
configure the wireless connection on the device using the security information you
configured for the Cisco RV120W:
• Network name or Service Set Identifier (SSID). The default SSID is
ciscosb-1.
• If applicable, the encryption type and security key.

Cisco RV120W Specifications

General

Ethernet LAN	Yes
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
VPN tunnels quantity	10
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Channels quantity	13 channels
WLAN data transfer rate (max)	300 Mbit/s
Input current	1 A
Input voltage	12 V
xDSL connection	No
Dimensions (WxDxH)	150 x 150 x 34 mm
Networking features	Fast Ethernet, WLAN, WAN
Operating temperature (T-T)	32 - 104 °F
Security algorithms	802.1x RADIUS, EAP, WPA2
Antennas quantity	2
Antenna gain level (max)	1.8 dBi
Ethernet LAN (RJ-45) ports	4
Certification	FCC B, CE, IC, Wi-Fi
Product color	Black
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 85 %

Weight and Dimensions

Weight	500 g
