Cisco RV120W Administration Guide

Introduction
Getting to Know the Cisco RV120W
Cisco RV120W Administration Guide 4
1
The Cisco RV120W also provides a setup wizard. The setup wizard allows you to
easily configure the Cisco RV120W’s basic settings.
Getting to Know the Cisco RV120W

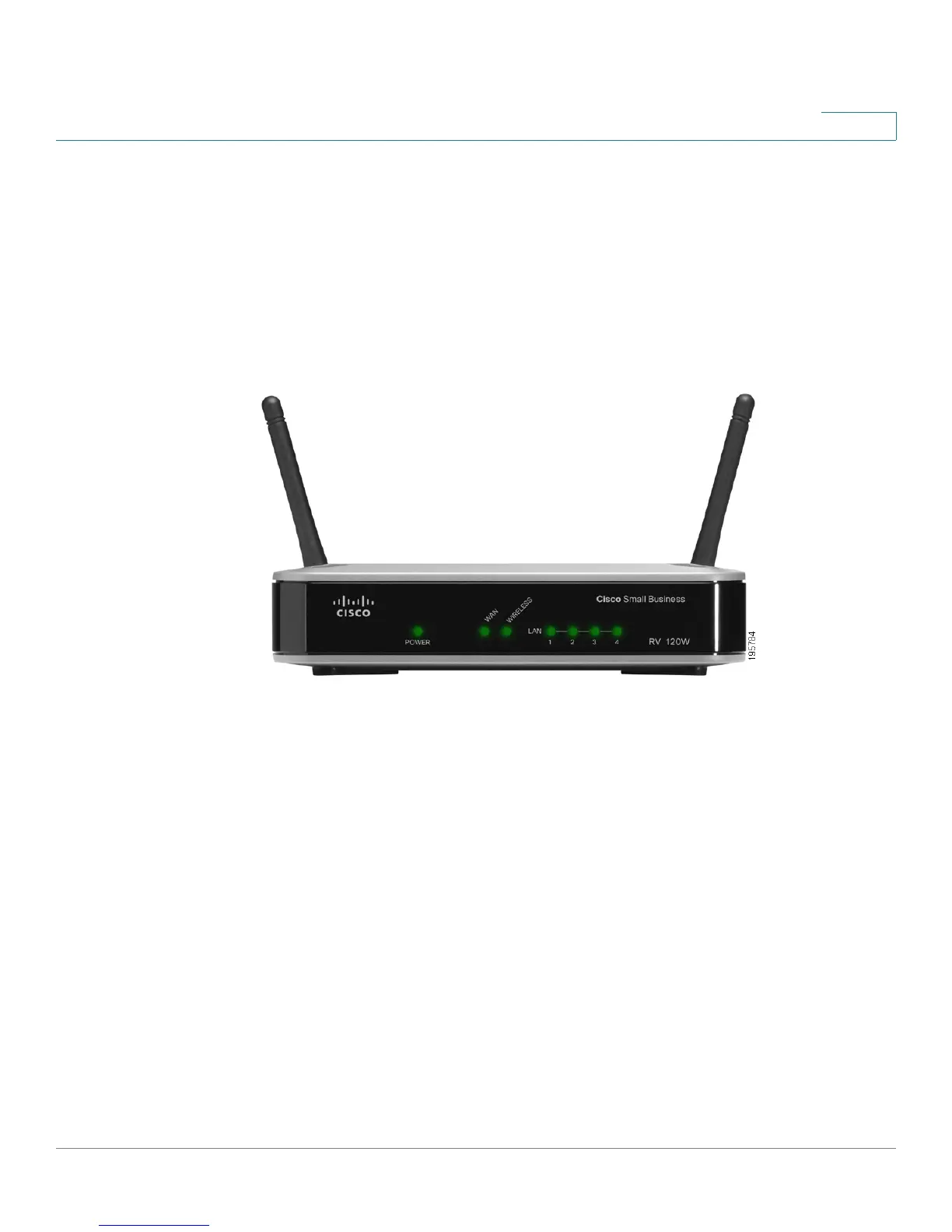

Front Panel
POWER—The Power LED lights up green to indicate the device is powered on.
Flashes green when the power is coming on or software is being upgraded.
WAN LED—The WAN (Internet) LED lights up green when the device is connected
to your cable or DSL modem. The LED flashes green when the device is sending
or receiving data over the WAN port.
WIRELESS—The Wireless LED lights up green when the wireless module is
enabled. The LED is off when the wireless module is disabled. The LED flashes
green when the device is transmitting or receiving data on the wireless module.
LAN—These four LEDs correspond to the four LAN (Ethernet) ports of the Cisco
RV120W. If the LED is continuously lit green, the Cisco RV120W is connected to a
device through the corresponding port (1, 2, 3, or 4). The LED for a port flashes
green when the Cisco RV120W is actively sending or receiving data over that port.

Cisco RV120W Specifications

General

Ethernet LAN	Yes
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
VPN tunnels quantity	10
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Channels quantity	13 channels
WLAN data transfer rate (max)	300 Mbit/s
Input current	1 A
Input voltage	12 V
xDSL connection	No
Dimensions (WxDxH)	150 x 150 x 34 mm
Networking features	Fast Ethernet, WLAN, WAN
Operating temperature (T-T)	32 - 104 °F
Security algorithms	802.1x RADIUS, EAP, WPA2
Antennas quantity	2
Antenna gain level (max)	1.8 dBi
Ethernet LAN (RJ-45) ports	4
Certification	FCC B, CE, IC, Wi-Fi
Product color	Black
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 85 %

Weight and Dimensions

Weight	500 g
