Cisco RV120W Administration Guide

Introduction
Getting to Know the Cisco RV120W
Cisco RV120W Administration Guide 5
1

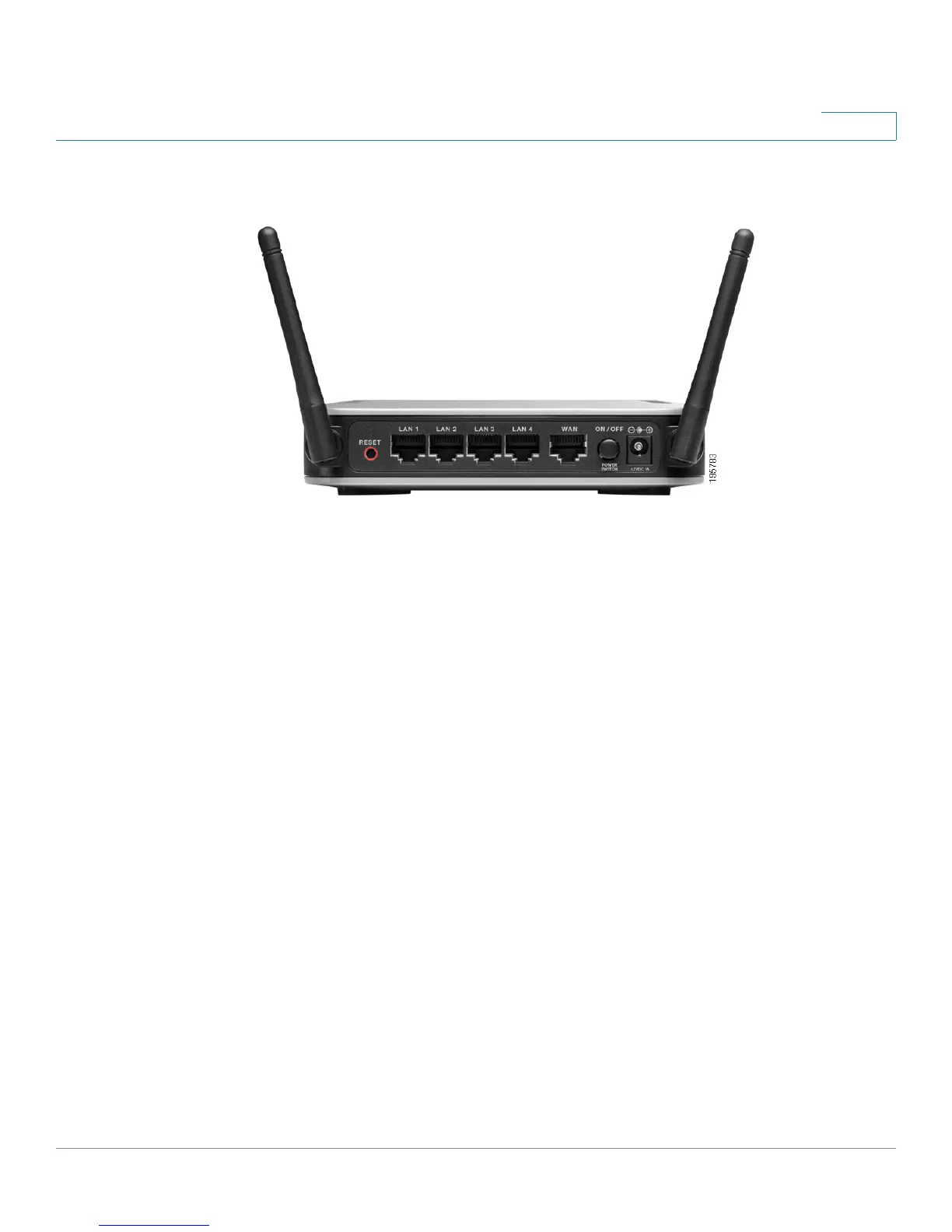

Back Panel
RESET Button—The Reset button has two functions:
• If the Cisco RV120W is having problems connecting to the Internet, press
the RESET button for less than five seconds with a paper clip or a pencil tip.
This is similar to pressing the reset button on your PC to reboot it.
• If you are experiencing extreme problems with the Cisco RV120W and have
tried all other troubleshooting measures, press and hold in the RESET
button for 10 seconds. This will restore the factory defaults and clear all of
the Cisco RV120W settings.
LAN Ports (1-4)—These ports provide a LAN connection to network devices,
such as PCs, print servers, or additional switches.
WAN Port—The WAN port is connected to your Internet device, such as a cable or
DSL modem.
ON/OFF Power Switch—Press this button to turn the Cisco RV120W on and off.
When the button is pushed in, power is on.
Power Port—The power port is where you connect the AC power cable.

Cisco RV120W Specifications

General

Ethernet LAN	Yes
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
VPN tunnels quantity	10
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Channels quantity	13 channels
WLAN data transfer rate (max)	300 Mbit/s
Input current	1 A
Input voltage	12 V
xDSL connection	No
Dimensions (WxDxH)	150 x 150 x 34 mm
Networking features	Fast Ethernet, WLAN, WAN
Operating temperature (T-T)	32 - 104 °F
Security algorithms	802.1x RADIUS, EAP, WPA2
Antennas quantity	2
Antenna gain level (max)	1.8 dBi
Ethernet LAN (RJ-45) ports	4
Certification	FCC B, CE, IC, Wi-Fi
Product color	Black
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 85 %

Weight and Dimensions

Weight	500 g
