6-26 ES45 Owner's Guide

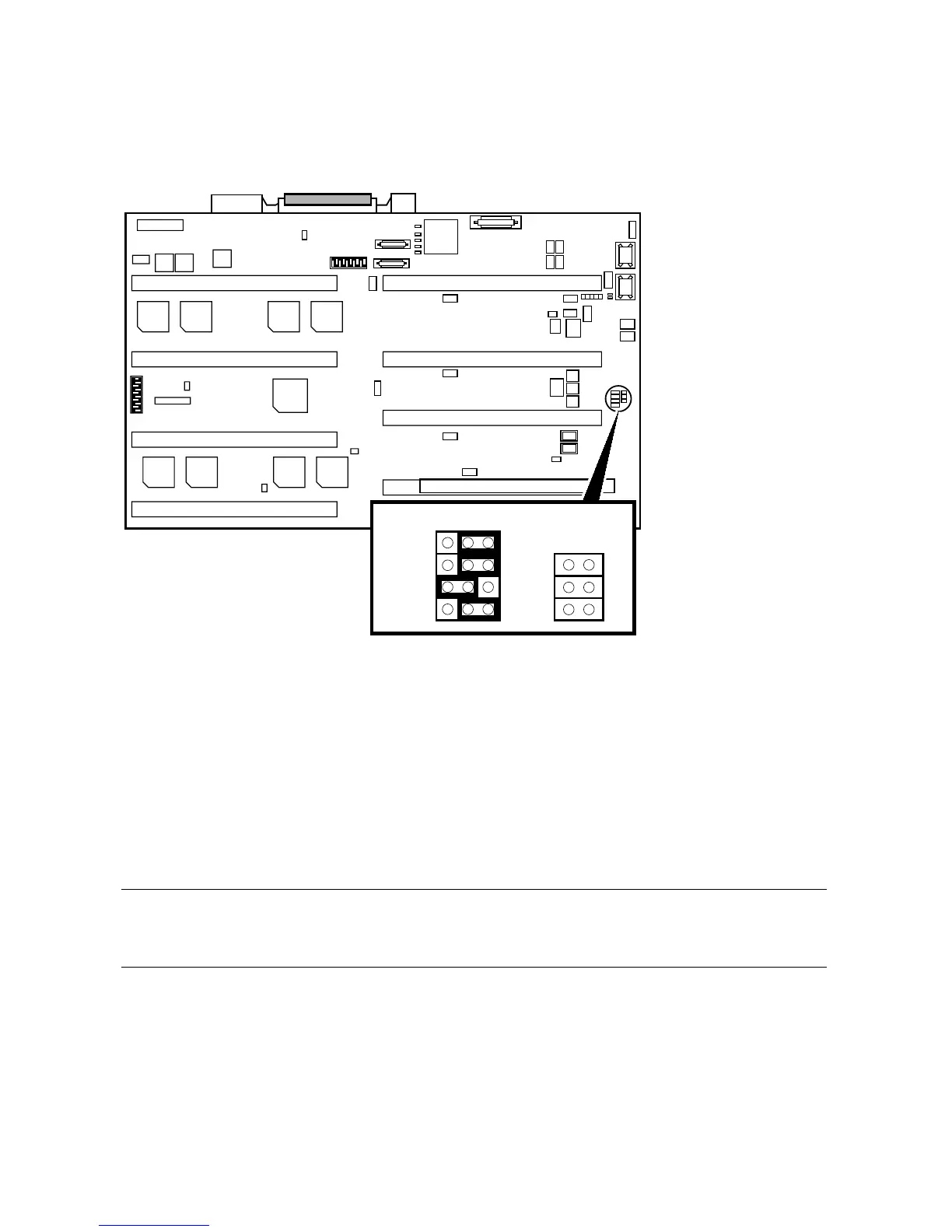

Figure 6–4 RMC Jumpers (Default Positions)
PK0211A
1 2 3
1 2
J7
J6
J5
J4
J3
J2
J1
7. Plug a power cord into one power supply, and then wait until the control
panel displays the message “System is down.”
8. Unplug the power cord. Wait until the +5V Aux LED on the power supply
goes off before proceeding.
9. Install jumper J6 over pins 2 and 3.
10. Reinstall CPU1, the card cage cover and fan cover and the enclosure panels.
11. Plug the power cord into each of the power supplies.
NOTE: After the RMC has been reset to defaults, perform the setup procedures
to enable remote dial-in and call-out alerts. See Section 6.6.4.
