1.8 I/O Backplane
The ES45 server has three I/O versions: Models 1B, 2B, and 3B.
1.8.1 Model 1B
Model 1B has six PCI slots with four at 66 MHz, two at 33 MHz, and one AGP
4x slot.

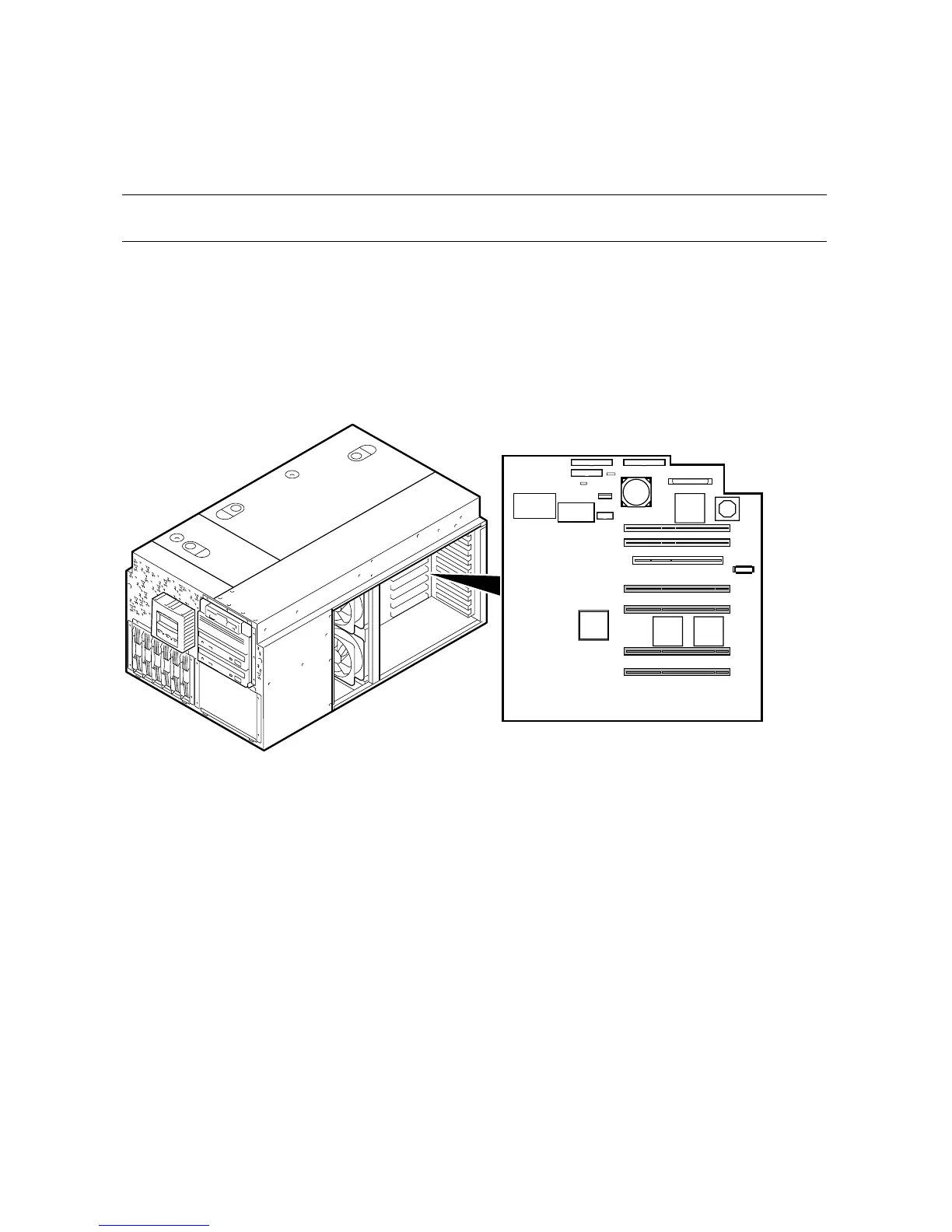

Figure 1–7 Location of I/O Slots: Model 1B
MR0262A
123 4 5 6 7 8 910
