4-30 ES45 Owner's Guide
7. To install the DIMM, align the notches on the gold fingers with the connec-
tor keys as shown in Figure 4–14.
8. Secure the DIMM with the clips

on the MMB slot.

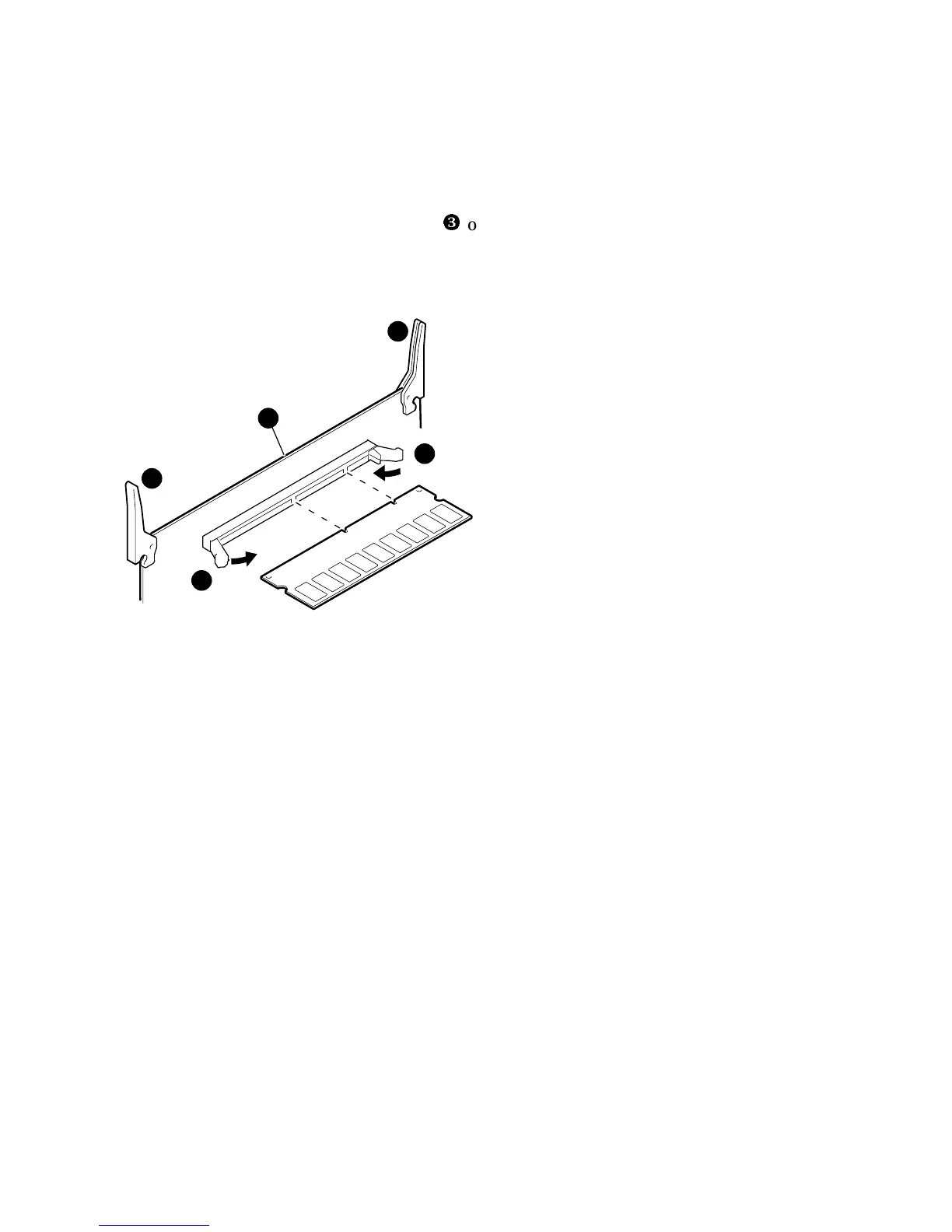

Figure 4–14 Aligning DIMM in MMB
PK0953A
3
3
2
1
1
9. Reinstall the MMB.
10. Replace the system card cage cover and enclosure covers.
11. Reconnect the power cords.
Verification
1. Turn on power to the system.
2. During power-up, observe the screen display for memory. The display
shows how much memory is in each array.
3. Issue the show memory command to display the total amount of memory
in the system.
