Setup Setting Up the Reader
6
Touch TD1100

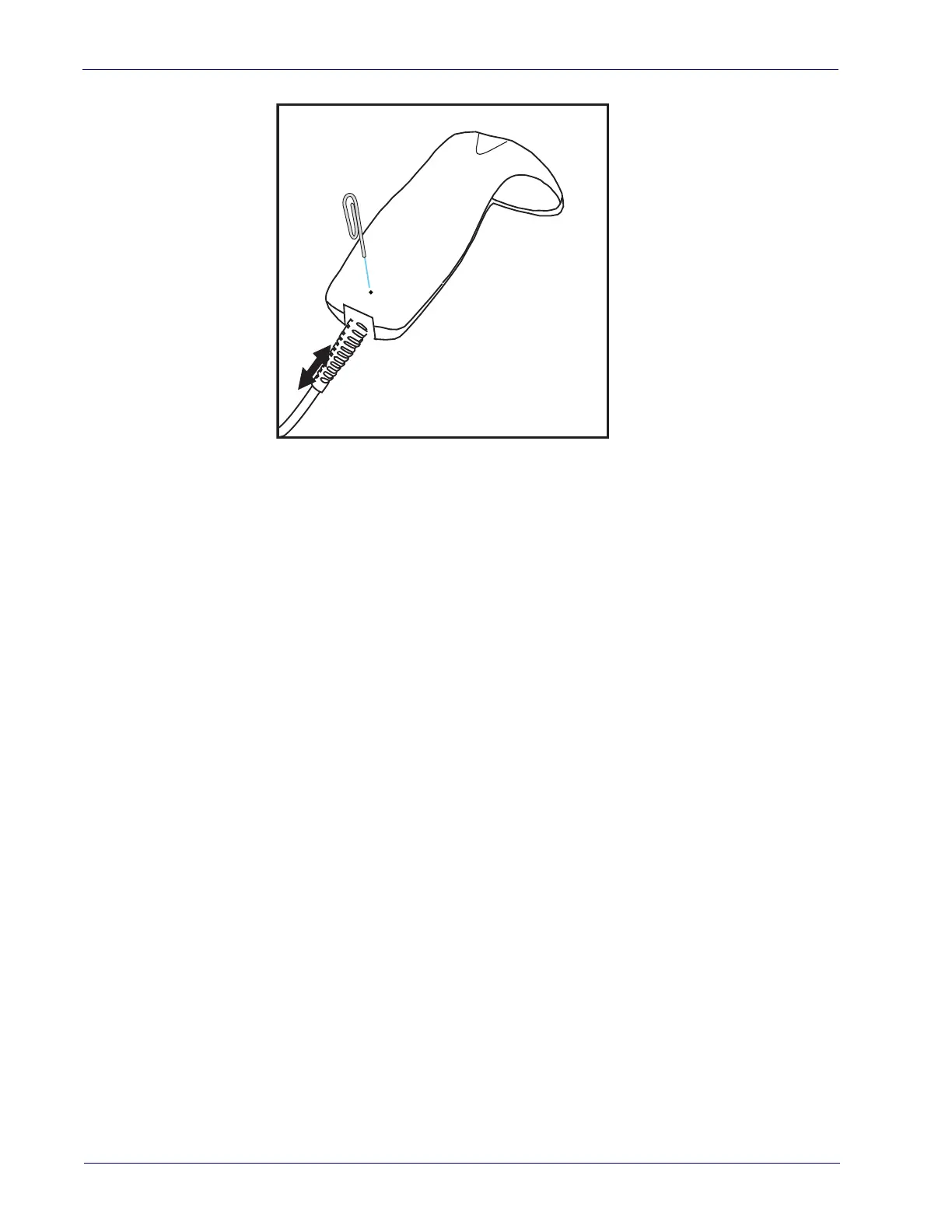

Figure 1. Connecting/Disconnecting the Interface Cable to the Reader
Depending on the model, the reader can communicate using the following interfaces:
RS-232:
The reader can communicate with a standard or Wincor-Nixdorf (W-N) RS-232 host.
RS-232 OPOS:
This interface is used for OPOS/UPOS/JavaPOS systems.
Keyboard Wedge (KBW) :
When connected using this interface, the host interprets scanned data
as keystrokes and supports several international keyboards (for the Windows
®
environment).
See
"Country Mode" on page 35
for a full listing.
Wand:
The Touch 65/90 Pro can be set to use the Wand Emulation interface.
USB:
Select to communicate either by USB OEM, USB COM STD, or USB Keyboard
interface types by scanning the appropriate interface type bar codes available in this manual.
The default interface is USB-KBD (Touch Lite USB and Touch Pro), or RS232-STD (Touch
Lite RS232).
