Installing the storage tray for Intel GPU configurations
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. Remove the cable cover.
4. Observe and disconnect the intrusion switch cable from the storage tray that is connected from the system board.
Disconnect the drive backplane cables, BOSS power and signal cables, fan board cables from the connectors of the storage
tray and keep the cables away from the storage tray.
Steps
1. Align and insert the storage tray on the guiding slots of the chassis.
2. For tray installation, press down the handle and slide the tray into the chassis toward the rear of the system until it is firmly
seated.
3. Using a Phillips 1 screwdriver, tighten the screws to secure on the drive cage.
NOTE: There is label to show the Storage tray lock and unlock on the left side of the chassis.
NOTE: The numbers on the image do not depict the exact steps. The numbers are for representation of sequence.

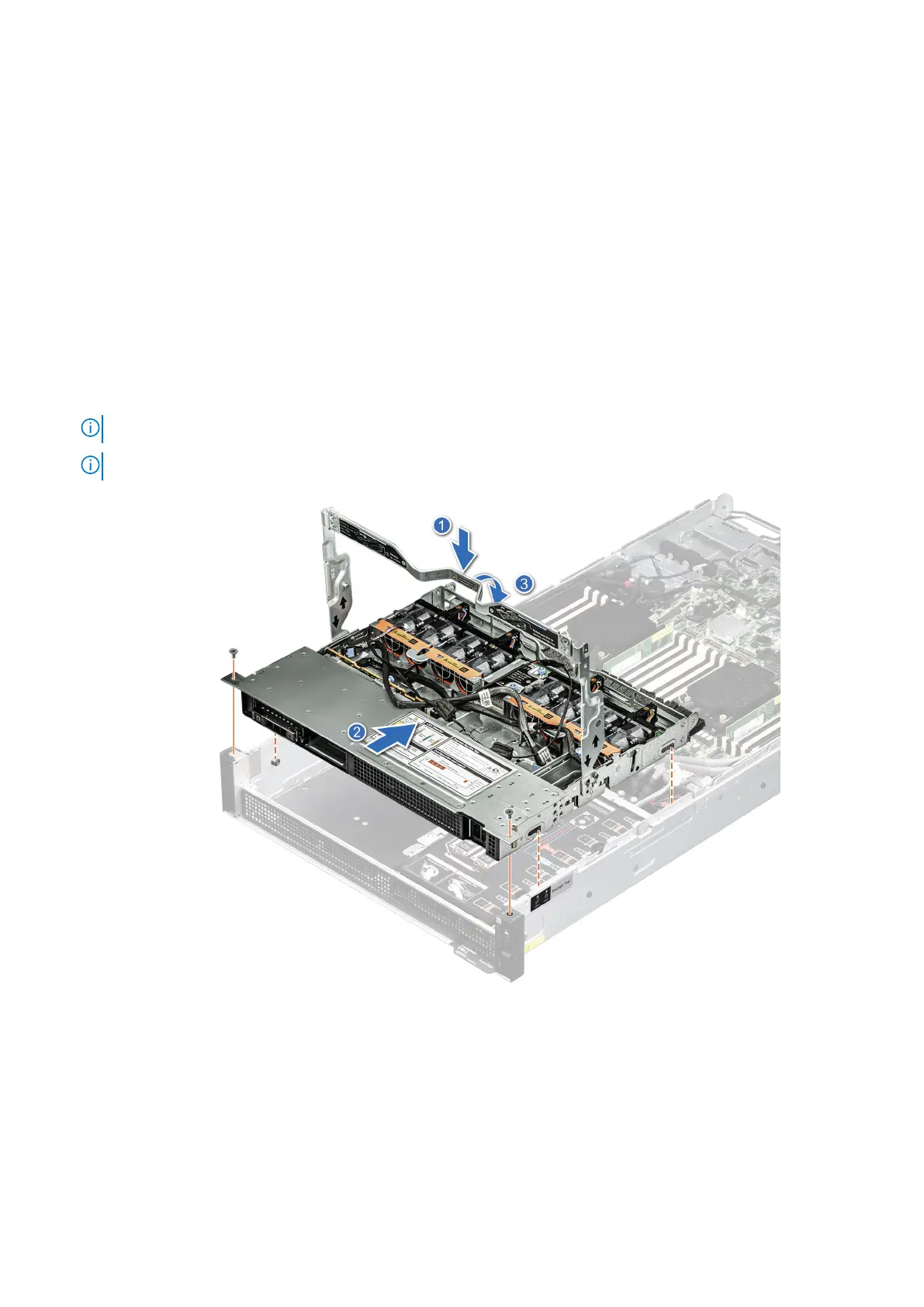

Figure 68. Installing the storage tray
Next steps
1. Reconnect the intrusion switch bridge cable from the storage tray that is connected from the system board. Reconnect the
drive backplane cables, BOSS power and signal cables, fan board cables from the connector of the storage tray.
2. Install the cable cover.
3. Follow the procedure listed in After working inside your system.
100
Installing and removing system components
