Table 62. Fan cable connections
Order From To
1 PDB-GFB_PWR1 (Power Distribution
Board (PDB) power connector)
FAN-FAN+PWR1 (System fan power
connector)
2 PDB-GFB_SIG1 (PDB signal cable) FAN-SIG4 (System fan signal cable)
3 PDB-GFB_SIG2 (PDB signal cable) FAN-SIG7 (System fan signal cable)
2. Align and insert the fan board into the slots until it is seated firmly. Using a Phillips 2 screwdriver, tighten the screws to
secure the fan board into the storage tray.

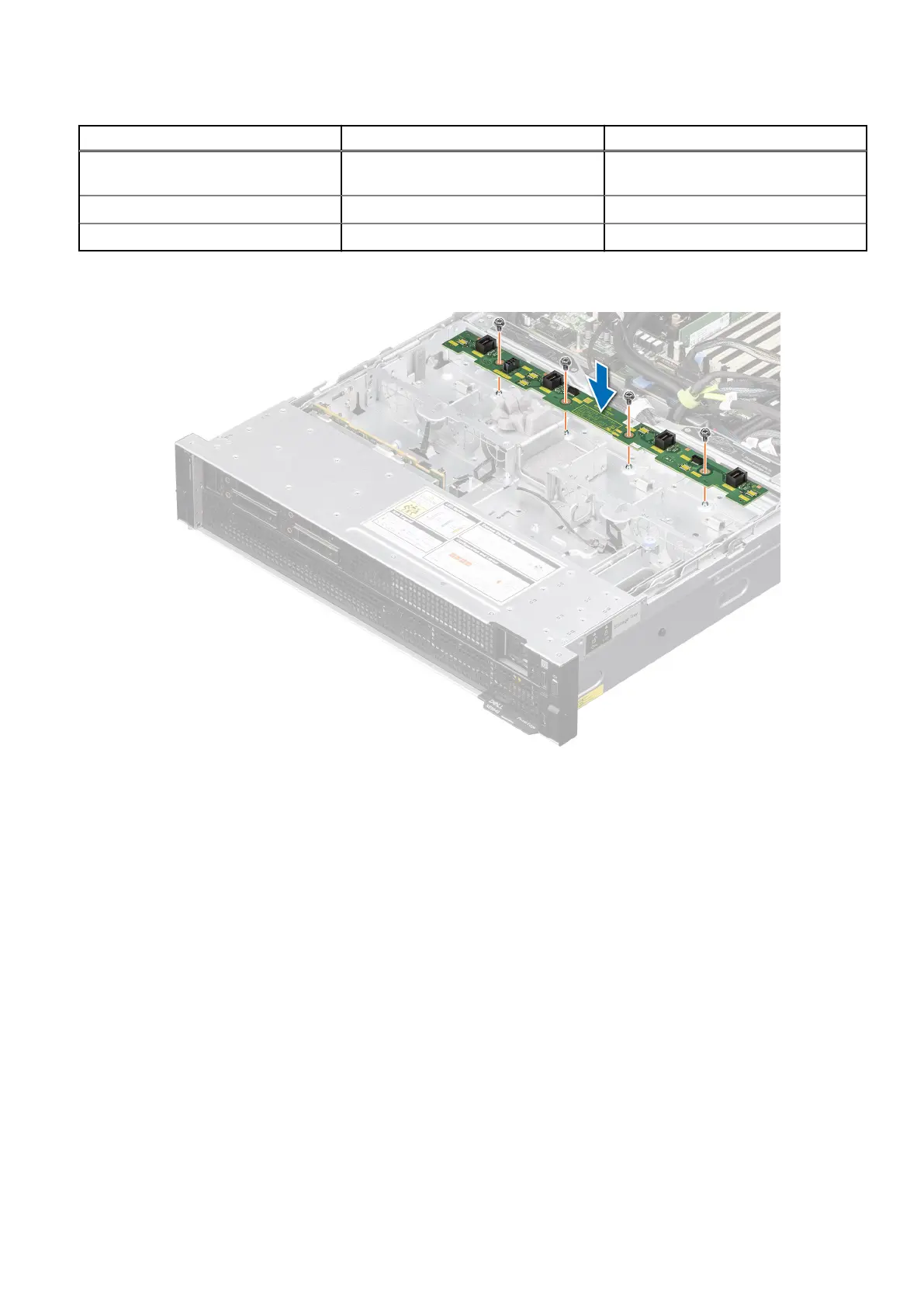

Figure 33. Installing the cooling fan board
Next steps
1. Reconnect the intrusion switch bridge cable from the storage tray that is connected from the system board. Reconnect the
drive backplane cables, BOSS power and signal cables, signal cable on the PDB2, fan board cables on the connector of the
storage tray. Reconnect the VSB power cables on the system board.
2. Install the cooling fan modules.
3. Install the cable cover.
4. Follow the procedure listed in After working inside your system.
Drives
Removing a drive blank
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. If installed, remove the front bezel.
Installing and removing system components
75
