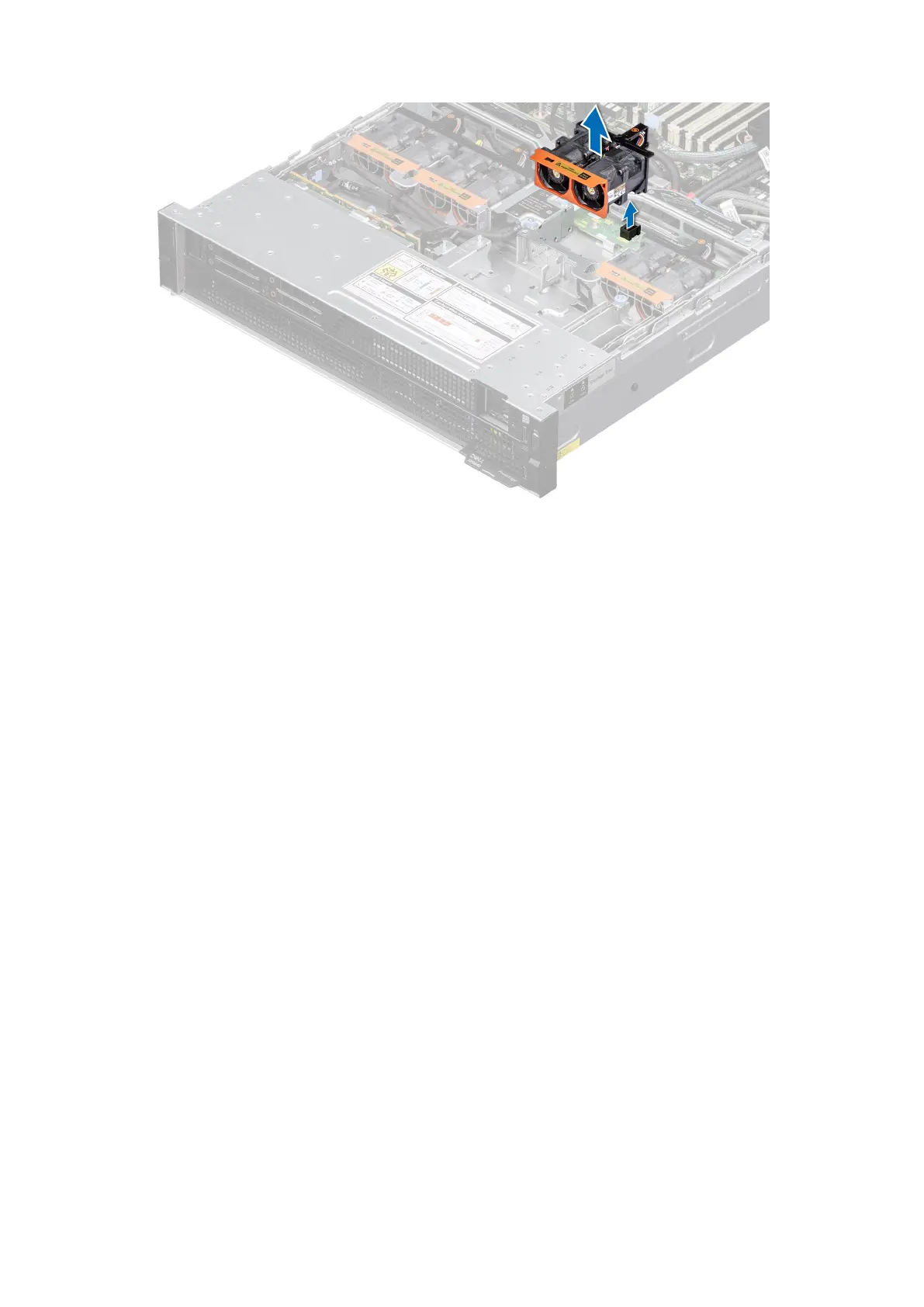

Figure 22. Removing a cooling fan module
Next steps
1. Replace a cooling fan.
Installing a cooling fan module
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
Steps
1. Align and place the fan module connector horizontally with the connector on the system board.
2. Press the orange touch point on the cooling fan module until firmly connected.
66
Installing and removing system components
