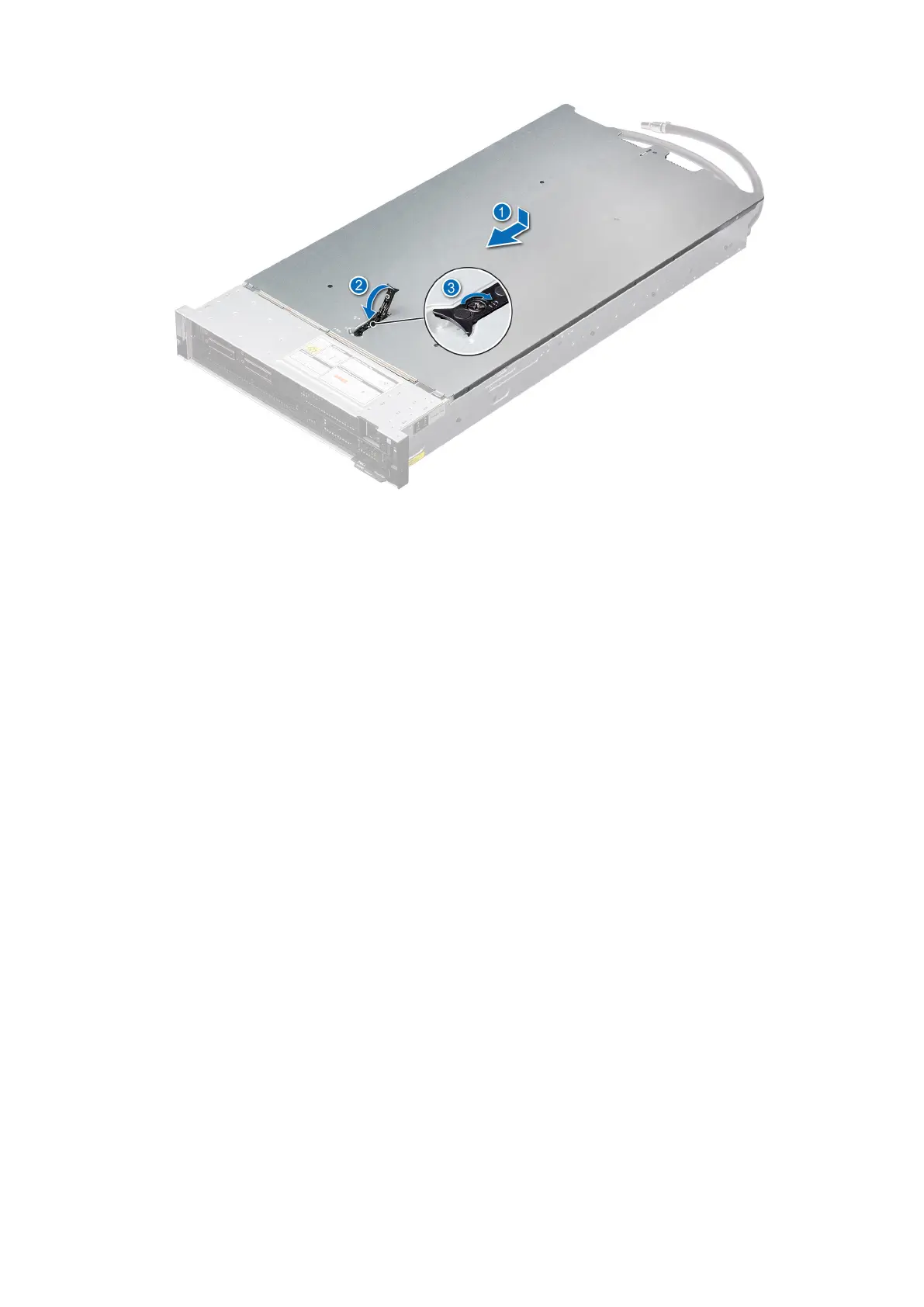

Figure 21. Installing the system cover
Next steps
1. Follow the procedure listed in After working inside your system.
Cooling fans
Removing a cooling fan module
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
Steps
Holding the orange (near the lable) and black (near the orange touch point) edges on the fan module, lift the cooling fan module
to disconnect from the connector on the fan board.
Installing and removing system components
65
