Versabay board (VSB)
This is a service technician replaceable part only.
Removing the VSB assembly and VSB
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. Remove the riser 1A and 4A for Intel GPU configurations or Remove the riser 1B and 4B for NVIDIA GPU configurations.
Steps
1. Using the Phillips 2 screwdriver, remove the screws to disengage the VSB cable from the VSB board connected to the
system board.
2. Disconnect the signal cable from the VSB.
3. Lift the plunger and slide the VSB tray to rear of the system.
4. Disengage the VSB tray from the system board and lift it out of the system.
NOTE: The procedure to remove the left and right VSB is similar.

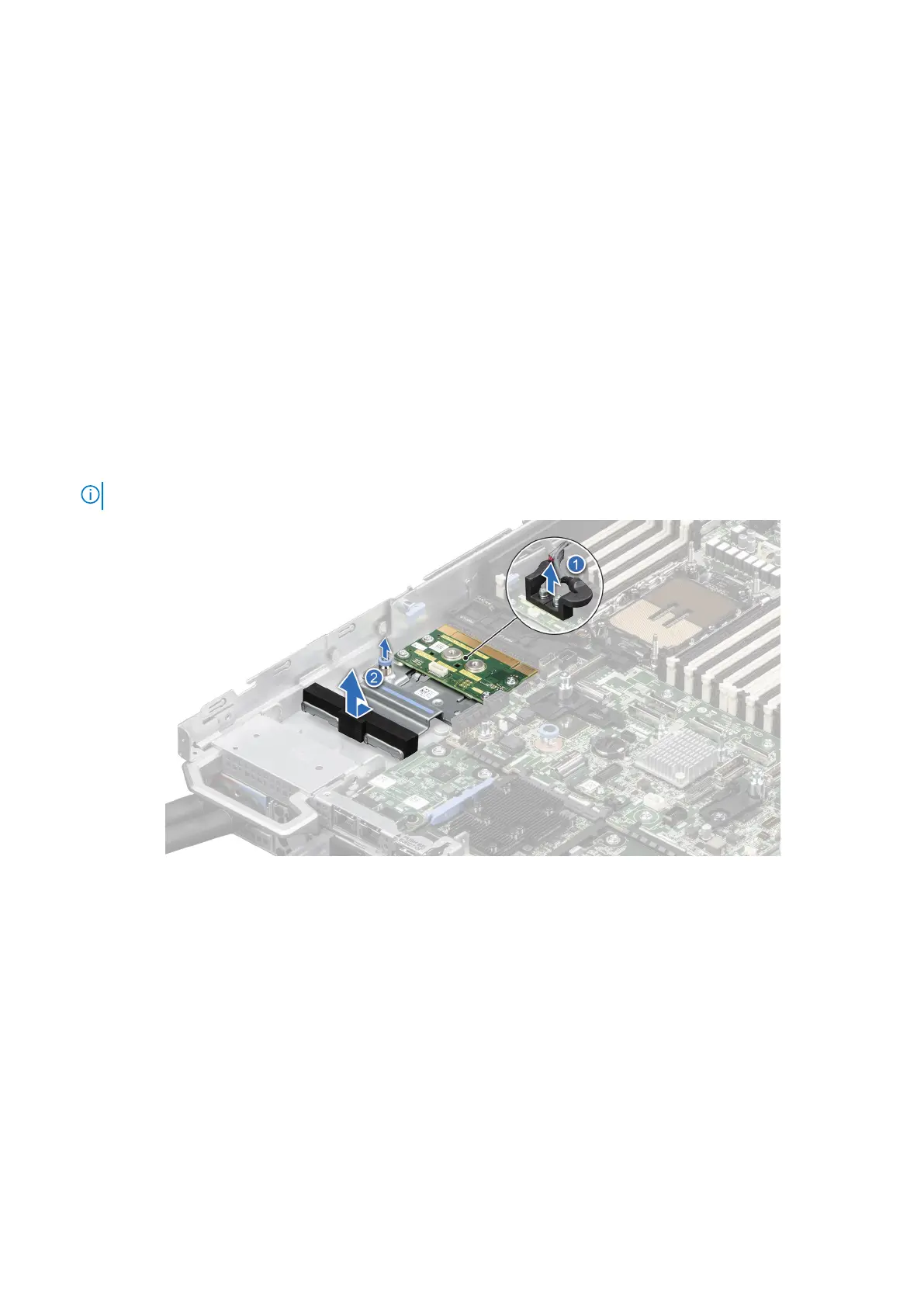

Figure 61. Removing the VSB assembly
5. For Intel GPU configurations, remove the storage tray, and then disconnect the VSB cables from the PDB of the bottom
layer and disconnect the VSB cables from the system board.
Installing and removing system components
95
