System configurations - inside view for PowerEdge
XE9640

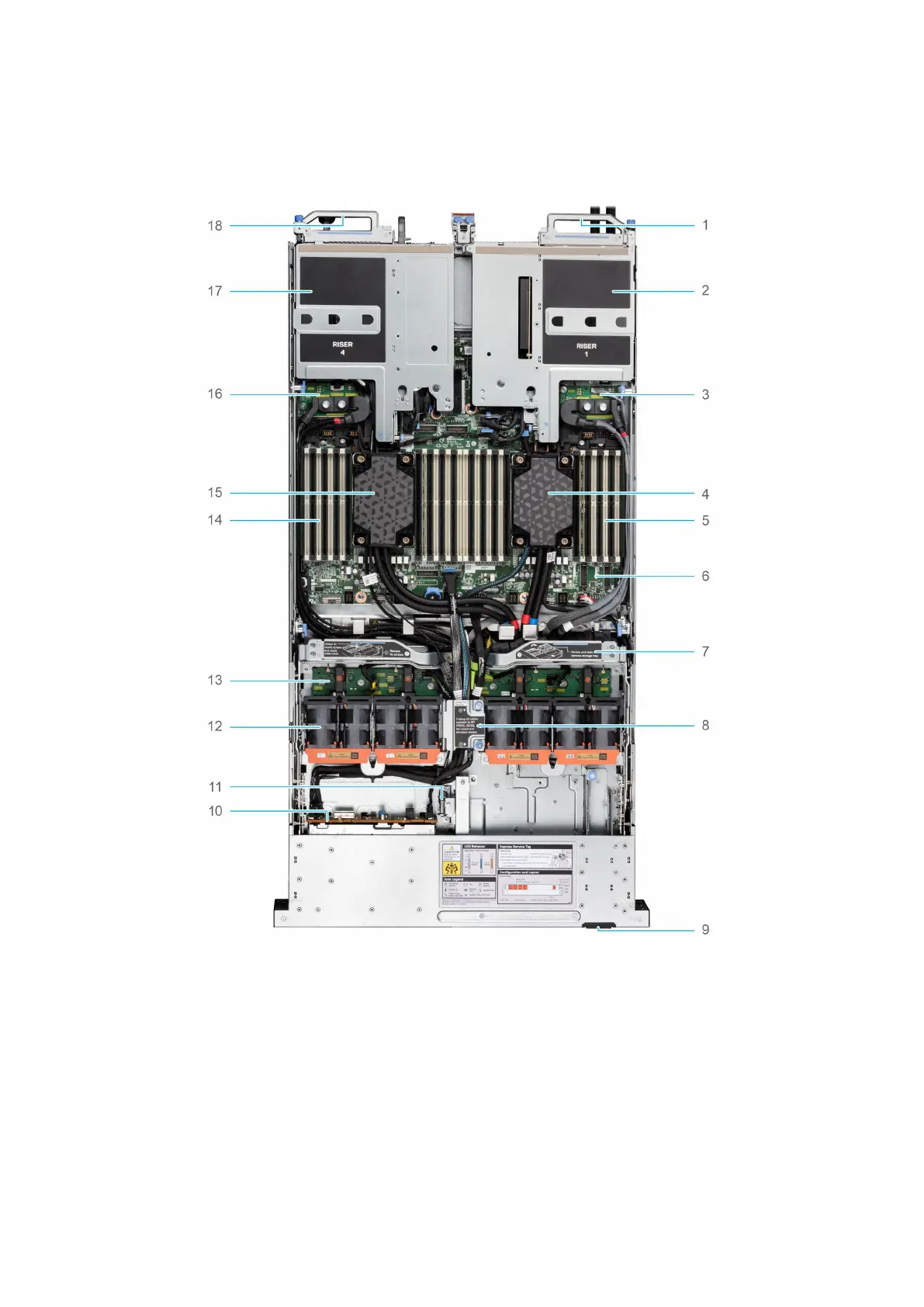

Figure 3. Top layer of the XE9640 system with Intel GPUs - inside the system
1.
System handle 2. Riser 1
3. VSB L (left) 4. Processor 1 with cold plate
5. Memory modules for processor 1 6. System board
7. Storage tray with handle 8. Cable cover
9. Express Service Tag 10. Backplane
11. Intrusion switch 12. Fan modules
13. Fan board 14. Memory modules for processor 2
15. Processor 2 with cold plate 16. VSB R (Right)
17. Riser 4 18. System handle
12 Dell PowerEdge XE9640 system configurations and features
