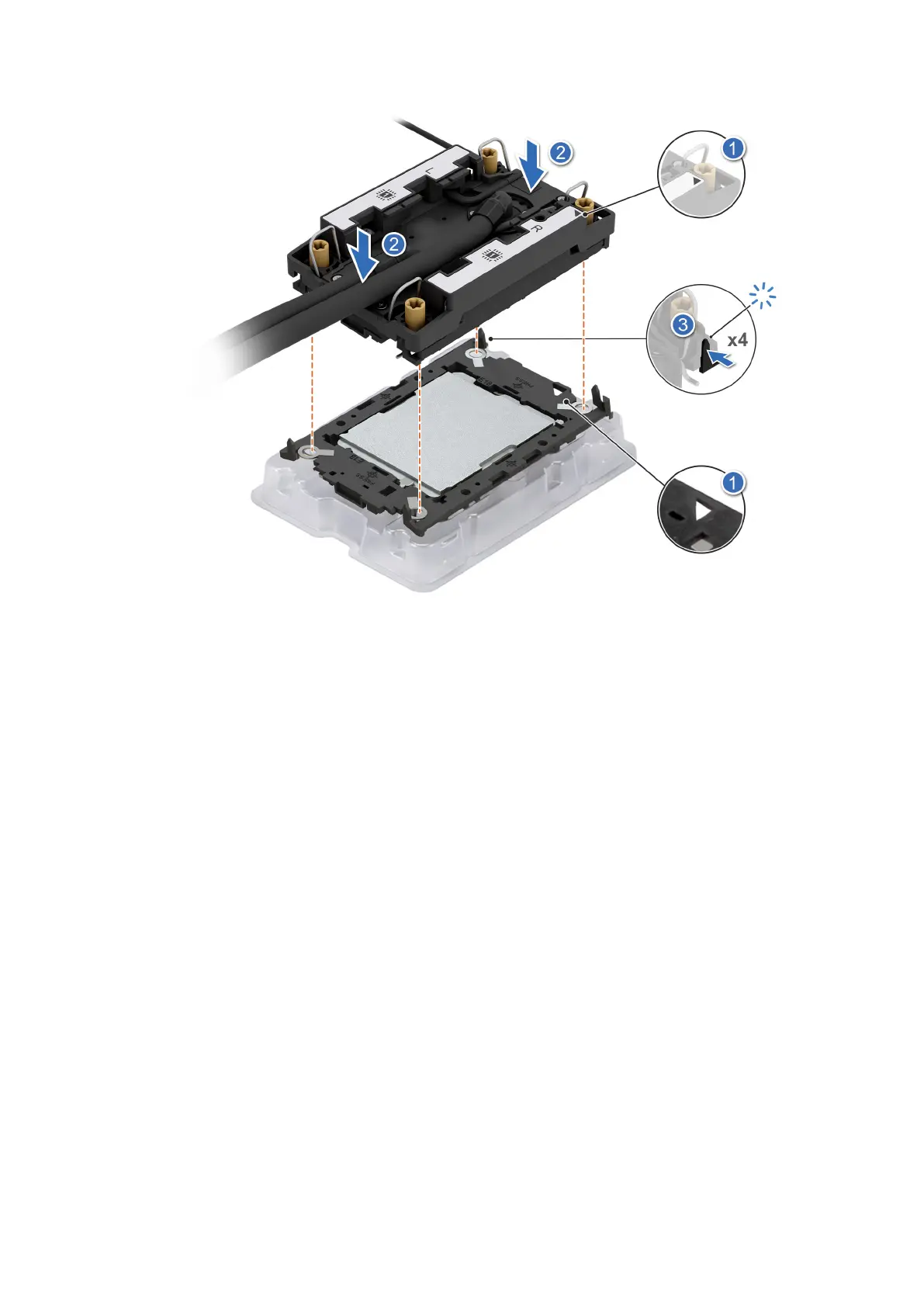

Figure 124. Installing the DLC module onto the processor
Next steps
1. Install the DLC module.
2. Install the lower brace cover for Intel GPU configurations or Install the lower brace cover for NVIDIA GPU configurations .
3. Install the storage tray for Intel GPU configurations or Install the storage tray for NVIDIA GPU configurations .
4. Follow the procedure listed in the After working inside your system.
Installing the Direct Liquid Cooling module
Prerequisites
Never uninstall the Direct Liquid Cooling (DLC) module from a processor unless you intend to replace the processor or system
board. The DLC module is necessary to maintain proper thermal conditions.
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. Remove the storage tray for Intel GPU configurations or Remove the storage tray for NVIDIA GPU configurations .
4. Remove the lower brace cover for Intel GPU configurations or Remove the lower brace cover for NVIDIA GPU
configurations .
Steps
1. Align the DLC module with the standoff screws on the system board.
2. Place the module on the processor slot and set all the anti-tilt wires to locked position (outward position).
3. Using the Torx T30 screwdriver, tighten the captive nuts (8 in-lbf) on the DLC module in the order below:
a. In a random order, tighten the first nut three turns.
b. Tighten the nut diagonally opposite to the nut that you tighten first.
c. Repeat the procedure for the remaining two nuts.
d. Return to the first nut to tighten it completely.
