CAUTION: Applying too much thermal grease can result in excess grease coming in contact with and
contaminating the processor socket.
NOTE: The thermal grease syringe is intended for single use only. Dispose the syringe after you use it.

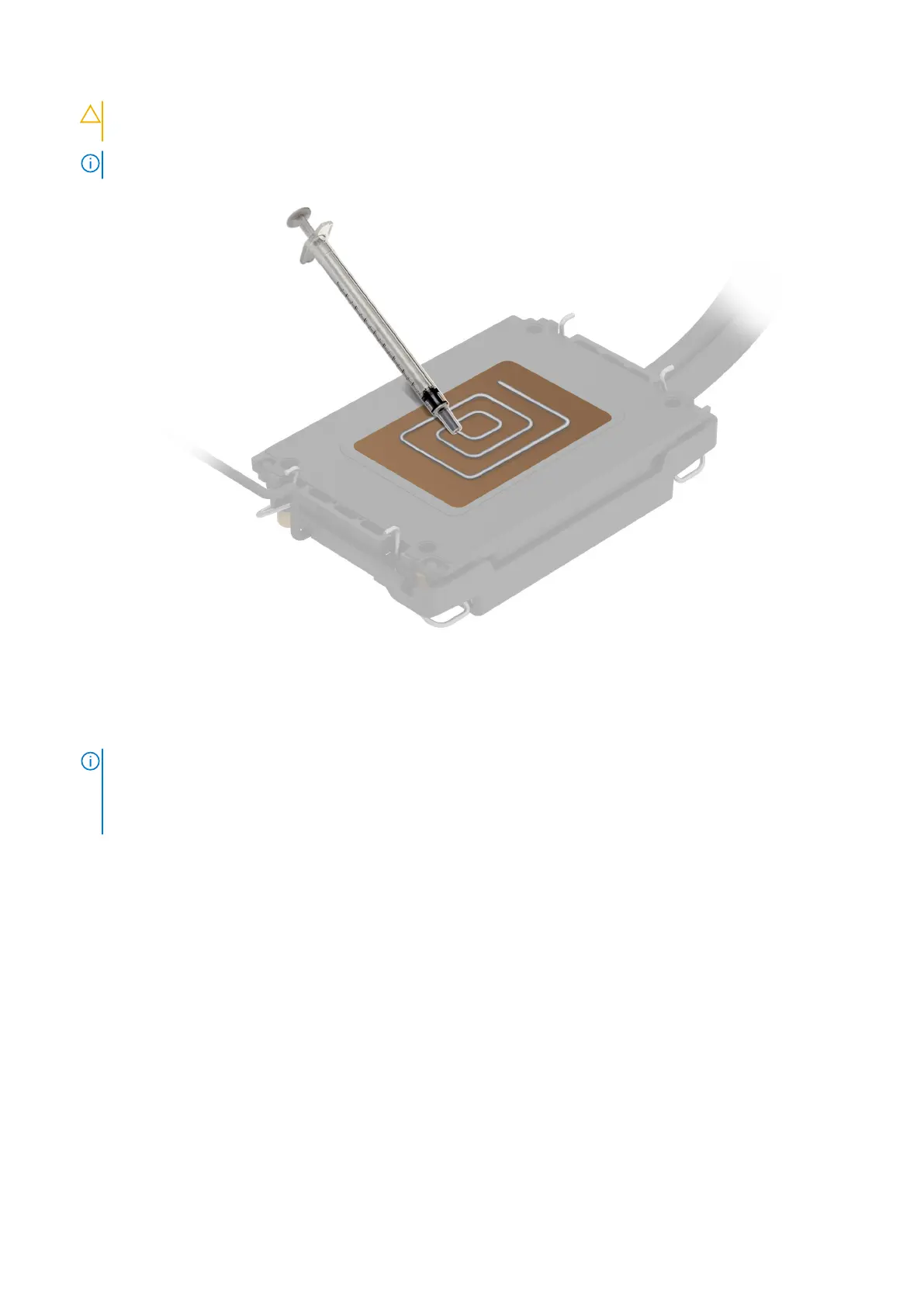

Figure 123. Applying thermal grease
6. Place the DLC module on the processor and press the base of the DLC module until the retaining clip locks onto the DLC
module at all the four corners.
NOTE:
● Ensure latching features on retaining clip, and DLC module are aligned during assembly.
● Ensure that the pin 1 indicator on the DLC module is aligned with the pin 1 indicator on the retaining clip before
placing the DLC module onto the retaining clip.
142 Installing and removing system components
