4. Release the plunger and rotate the metallic gate to open.

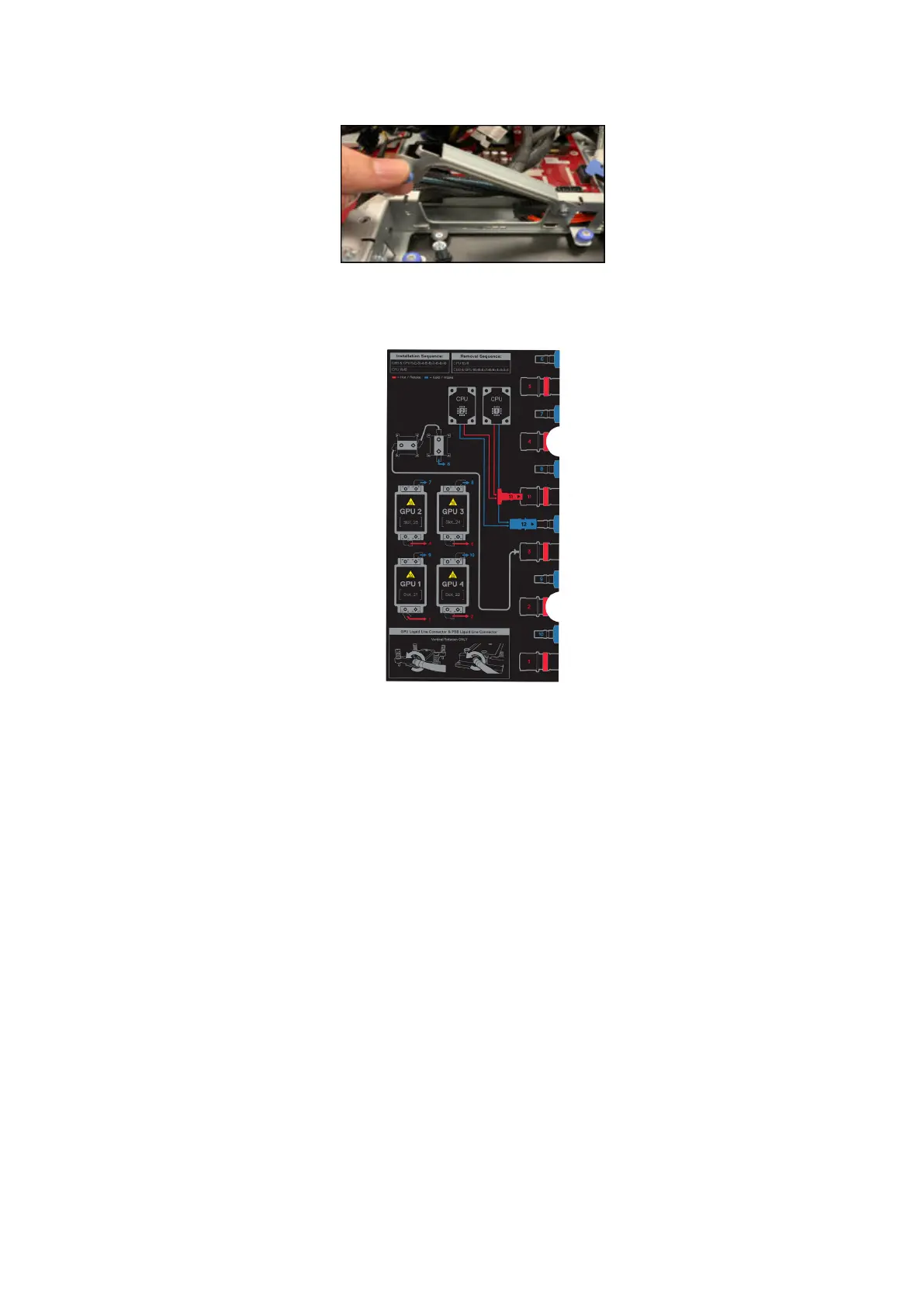

Figure 252.
5. Reconnect all the GPU cold plate tubes to the Manifold Liquid cooling module.
Figure 253.
6. Reconnect the sensor tray cable connector on the PDB.
7. Rotate the metallic gate to lock position and release the plunger.
Next steps
1. Slide in the system board tray.
2. Reconnect the liquid cooling tubes 11 and 12 from the Manifold for DLC module.
3. Install the lower brace bracket.
4. Reconnect all the cables onto the system board. For more information, see Cabling diagram.
5. Install the risers.
6. Install the storage tray .
7. Install the VSB cables on the system board.
8. Follow the procedure listed in the After working inside your system.
.
Removing the GPU with GPU cold plates for NVIDIA configurations
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system .
3. Disconnect the cables from the connector on the system board and the storage tray.
4. Remove the VSB from the system board and keep it on the storage tray and no need to disconnect from the PDB2.
232
Installing and removing system components
