Dell PowerEdge XE9640 - Page 231

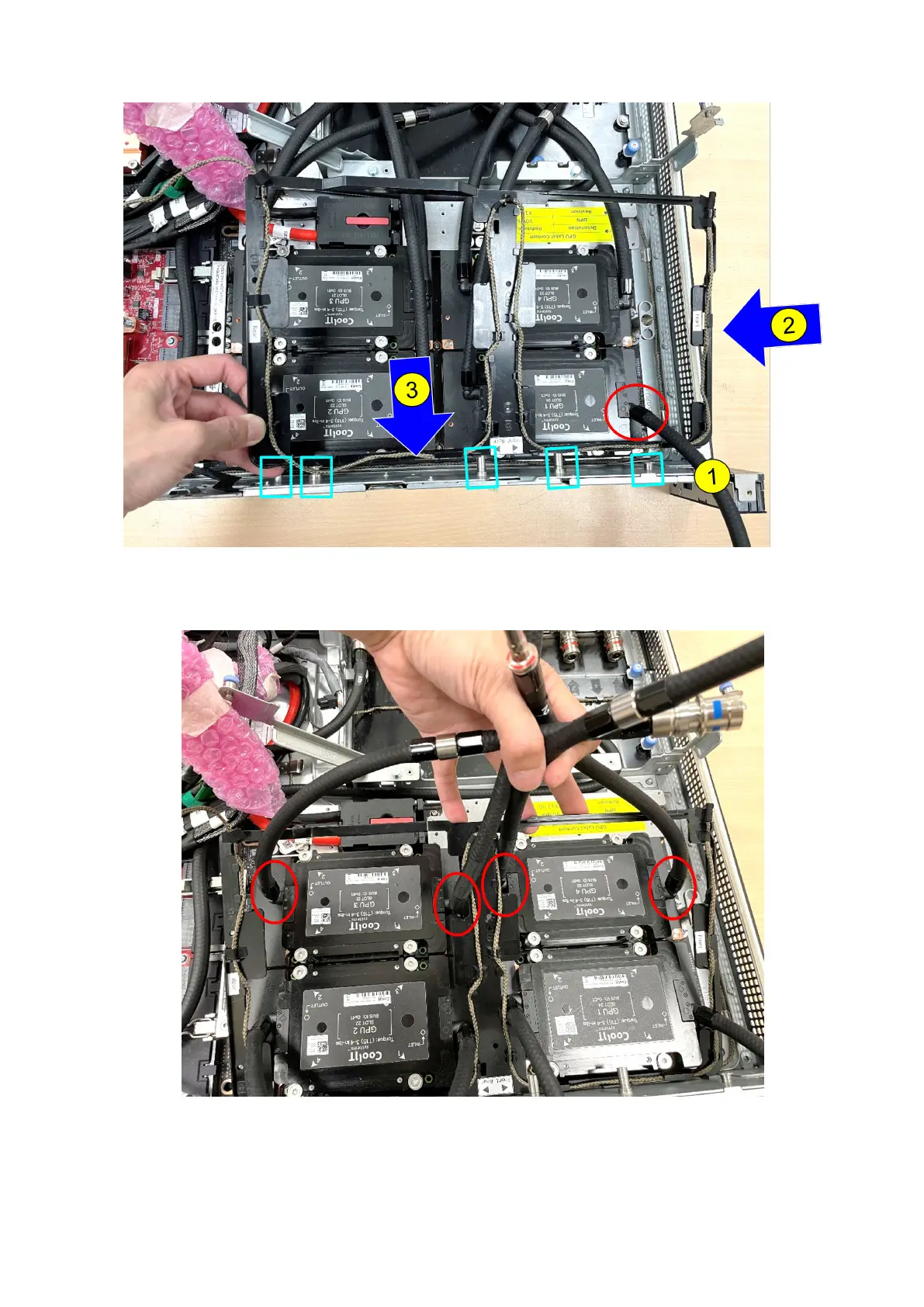

Figure 250.
2. Keep the cold plate tubes away and pass through the sensor tray along the GPU 1, GPU 2, GPU 3 and then the GPU 4.
Figure 251.
3. Hold the cold plate tubes and press the middle of the tray to install on to the GPU cold plates.
Installing and removing system components
231
