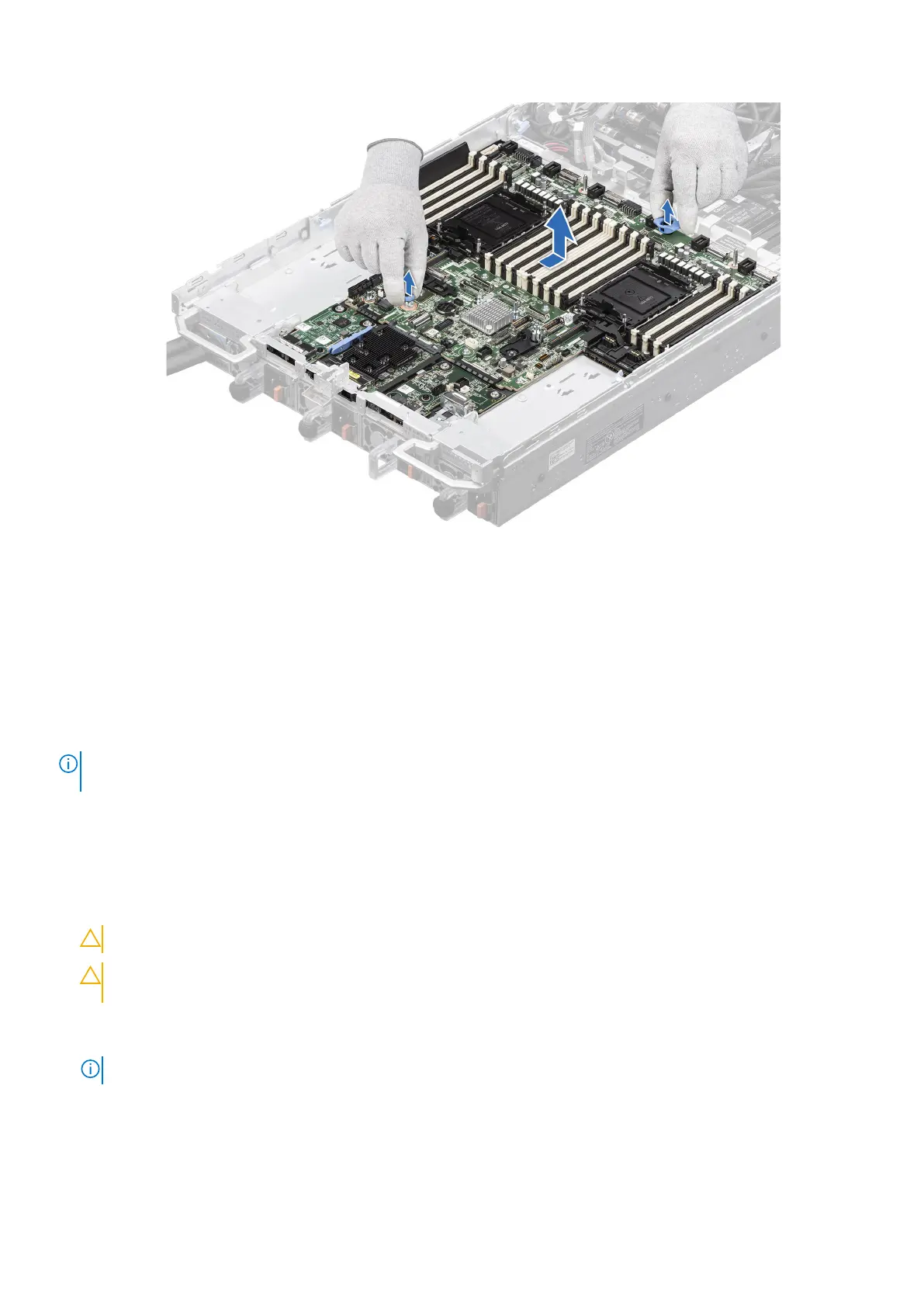

Figure 138. Removing the system board
Next steps
Install the system board.
Installing the system board
Prerequisites
NOTE:
Before replacing the system board, replace the old iDRAC MAC address label on the Express Service Tag with the
iDRAC MAC address label of the replacement system board.
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. If you are replacing the system board, remove all the components that are listed in the removing the system board section.
Steps
1. Unpack the new system board assembly.
CAUTION: Do not lift the system board by holding a memory module, processor, or other components.
CAUTION: Take care not to damage the system identification button while placing the system board into the
chassis.
2. Hold onto the blue plastic handle with one hand and use the other hand to push the plunger, sliding the system board
towards the rear of the chassis
NOTE: Ensure the plunger is locked.
Installing and removing system components 155
