Next steps
Replace the GPU with GPU cold plate for Intel GPU configurations.
Installing the GPU with GPU cold plate for Intel GPU
configurations
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system .
3. Remove the storage tray.
4. Remove the risers.
5. Remove the VSB cables from the system board.
6. Disconnect all the cables from the system board and make note of all the cable connections. For more information, see
Cabling diagram.
7. Remove lower brace cover.
8. Disconnect the liquid cooling tubes 11 and 12 from the Manifold for DLC module and keep in on the system board and make
sure do not damage any connectors on the system board.
9. Slide out the system board tray.
10. Unplug the cold plate tubes from the Manifold Liquid cooling module.
11. Remove the sensor tray.
Steps
1. Here is the orientation image for removal and installation sequence of liquid cooling tubes for processor, CBB, GPU cold
plates.

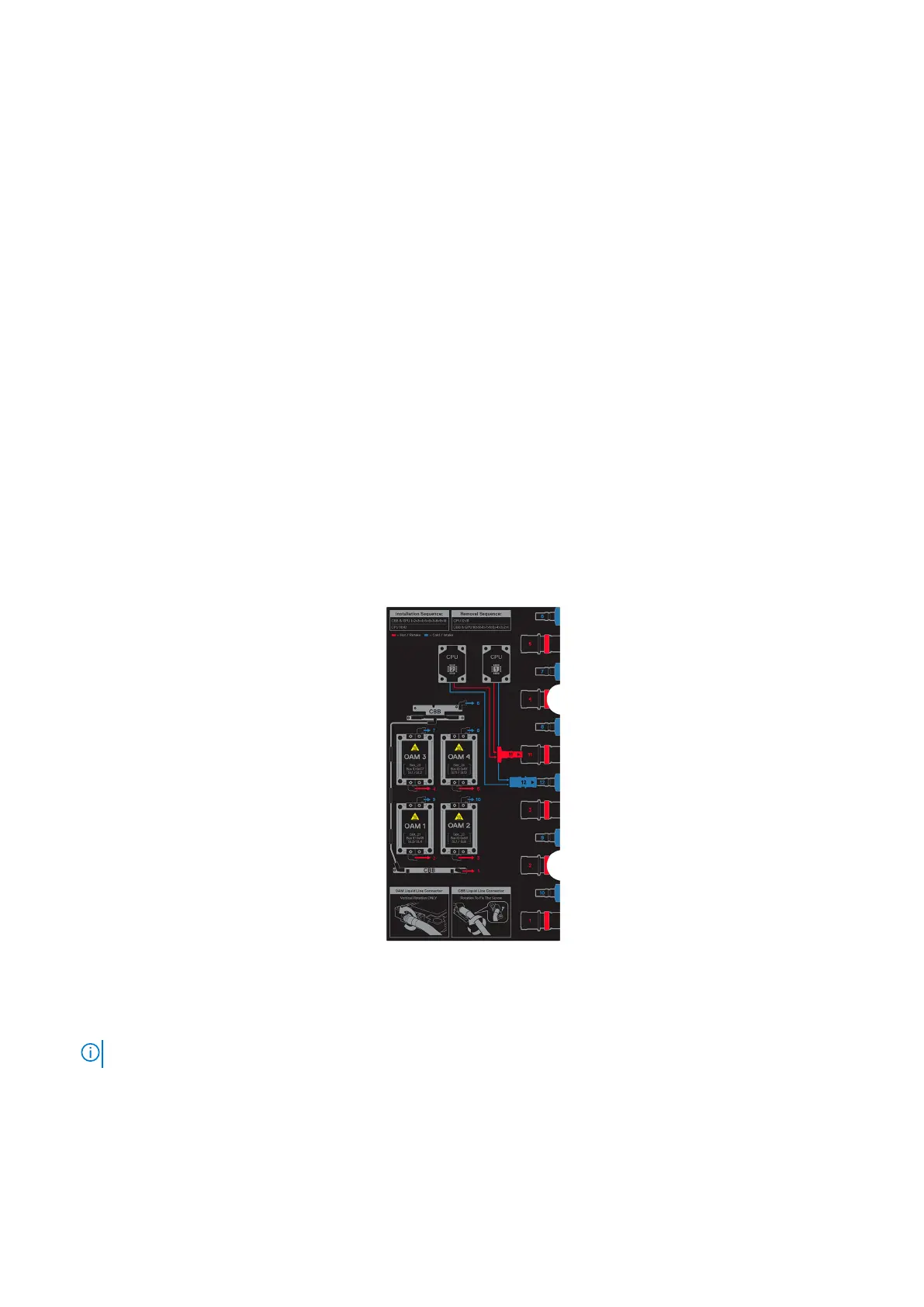

Figure 205. Removal and installation sequence of liquid cooling tubes for processor, CBB, GPU cold plates
2. Align and insert the GPU with GPU cold plates on the GPU socket. Using Torx 15 screwdriver, tighten the four screws
securing GPU module on GPU socket. Plug the cold plate tubes to the Manifold Liquid cooling module.
NOTE: The procedure to install the all the GPUs is same.
Installing and removing system components 201
