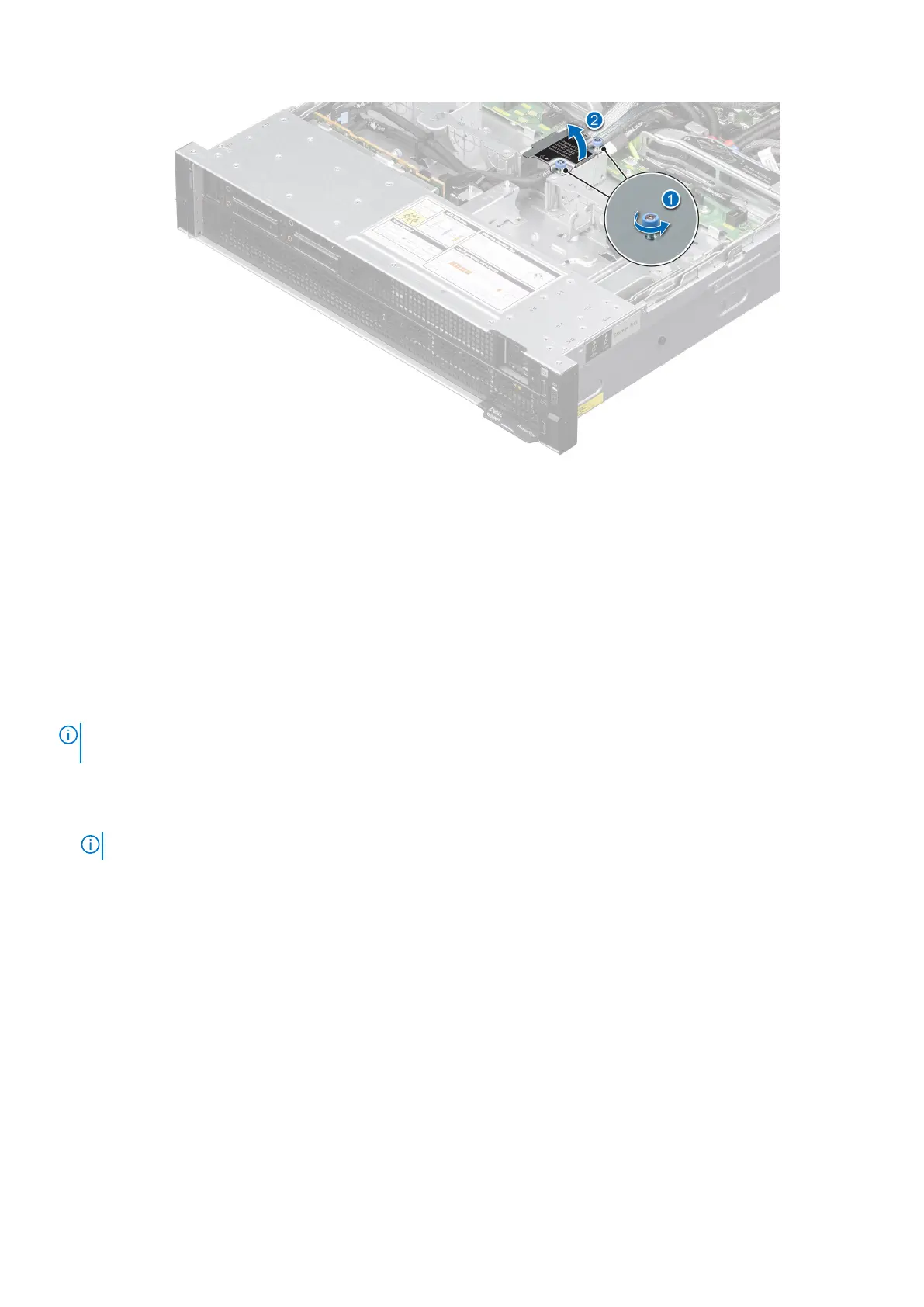

Figure 24. Removing the cable cover
Next steps
Replace the cable cover.
Installing the cable cover
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
NOTE:
Ensure that you note the routing of the cables as you remove them from the system board. Route the cables
properly when you replace them to prevent the cables from being pinched or crimped.
Steps
1. Push down the metallic cable cover on the storage tray.
NOTE: Route the cables through the cable holder.
2. Using the Phillips 2 screwdriver, tighten the blue thumb screws.
