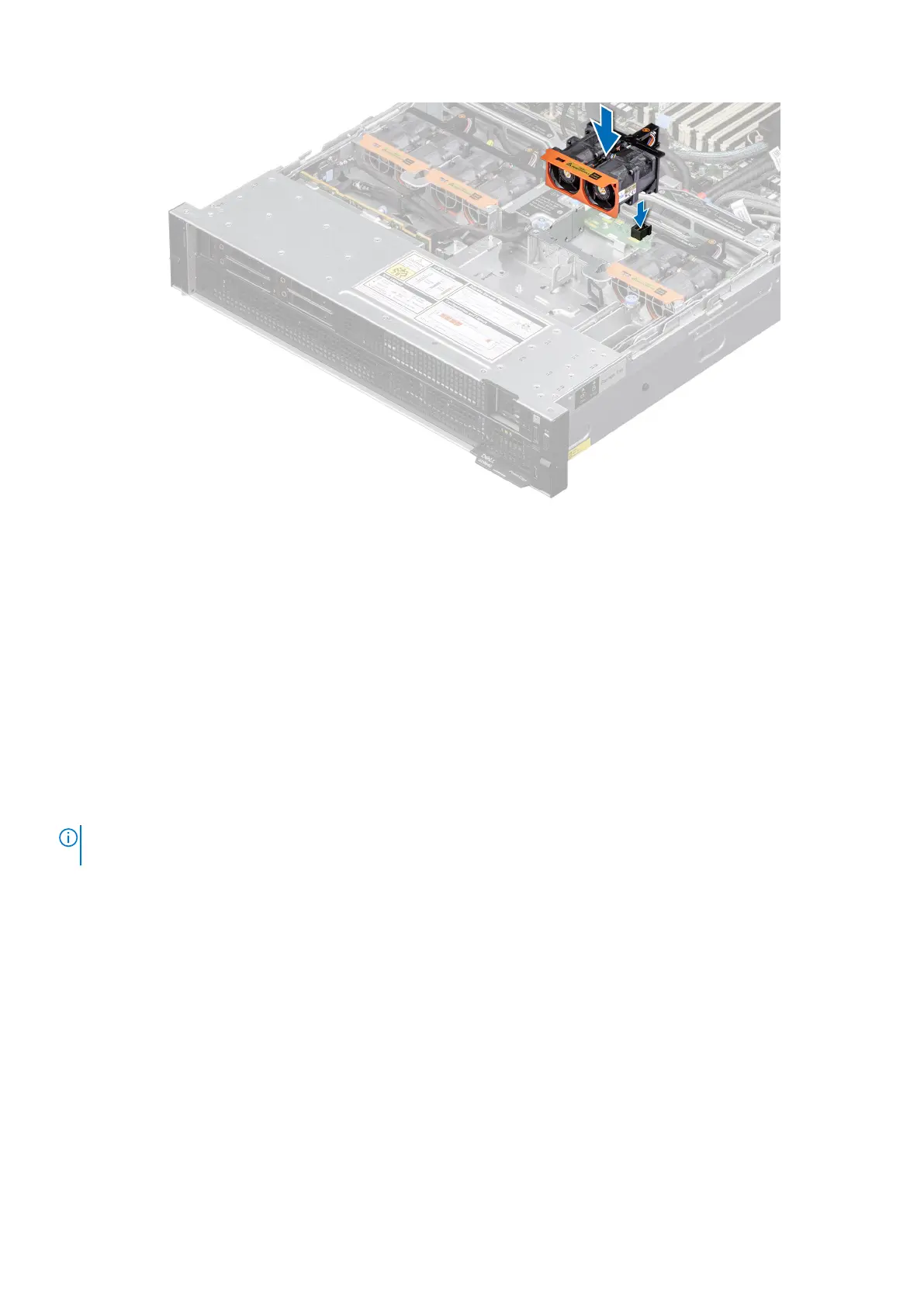

Figure 23. Installing a cooling fan module
Next steps
1. Follow the procedure listed in After working inside your system.
Cable cover
Removing the cable cover
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system. .
NOTE:
Ensure that you note the routing of the cables as you remove them from the system board. Route the cables
properly when you replace them to prevent the cables from being pinched or crimped.
Steps
1. Using the Phillips 2 screwdriver, loosen the blue thumb screws.
2. Pull up the metallic cover to disconnect the cables.
