3. Tilt the sensor tray along the corner of the GPU 3 and remove the GPU sensor along the GPU 3, GPU 4, GPU 2 and GPU 1
respectively

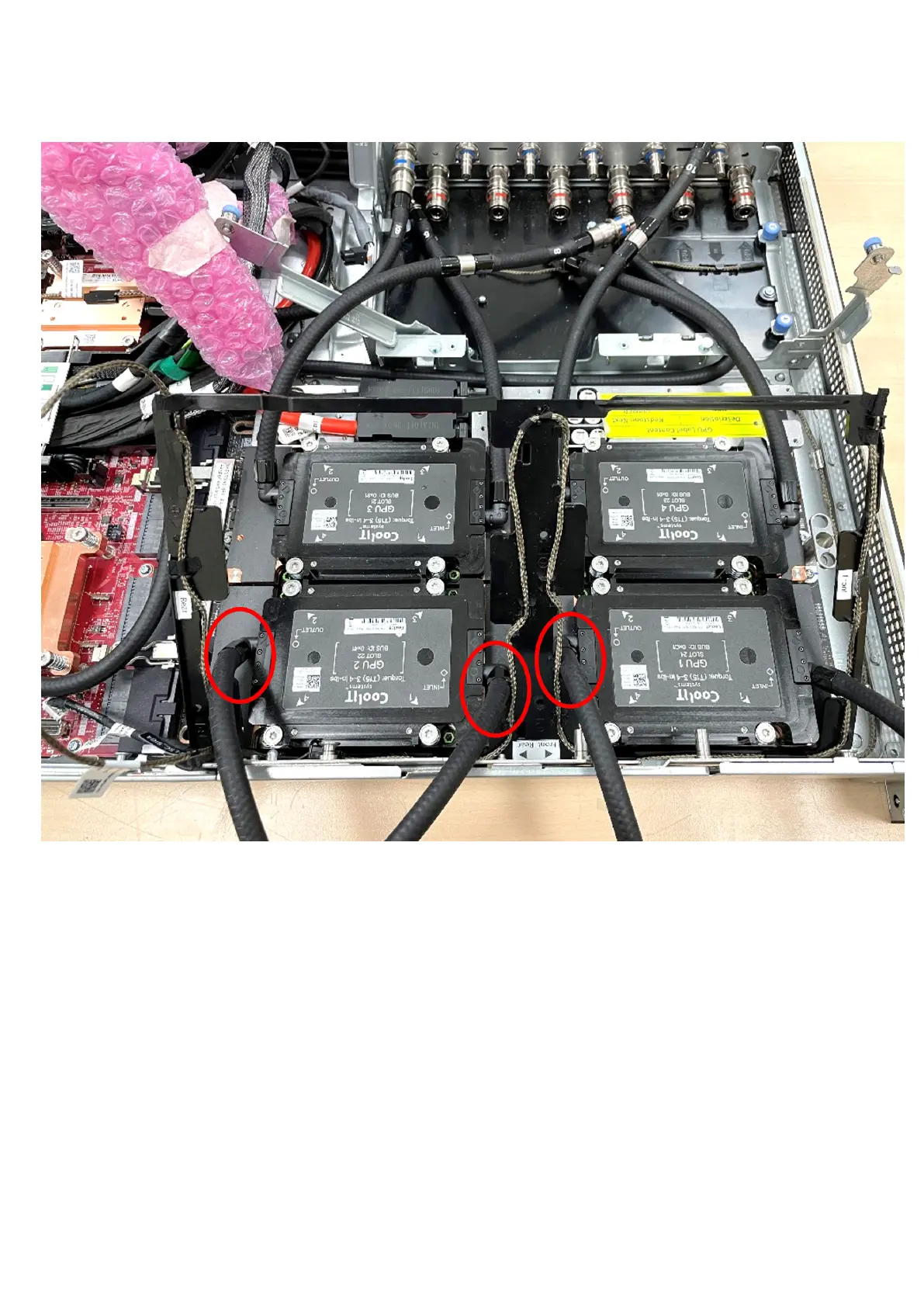

Figure 248. Remove the sensor tray
4. Remove the sensor tray cable connector on the PDB.
5. Remove and lift the sensor tray from the GPU cold plate.
Next steps
Replace the sensor tray for NVIDIA configurations.
Installing the sensor tray for NVIDIA GPU configurations
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system .
3. Disconnect the cables from the connector on the system board and the storage tray.
4. Remove the VSB from the system board and keep it on the storage tray and no need to disconnect from the PDB2.
Installing and removing system components
229
