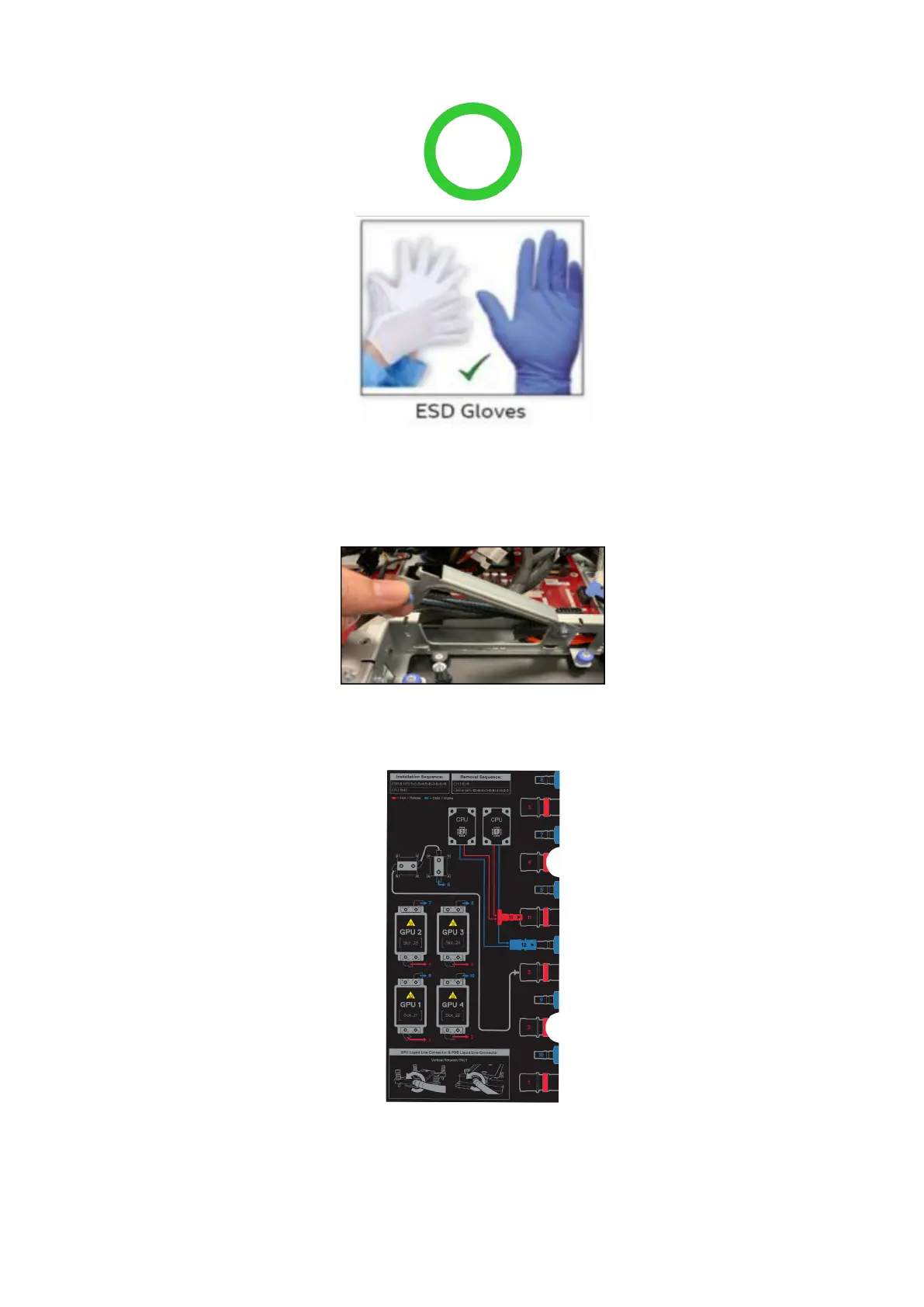

Figure 245. Wear ESD gloves
12. Do not touch the sensor tray cable directly.
Steps
1. Release the plunger and rotate the metallic gate to open.
Figure 246. Release the plunger
2. Release all the GPU cold plate tubes from the Manifold Liquid cooling module.
Figure 247. Manifold Liquid cooling module sequence
228
Installing and removing system components
