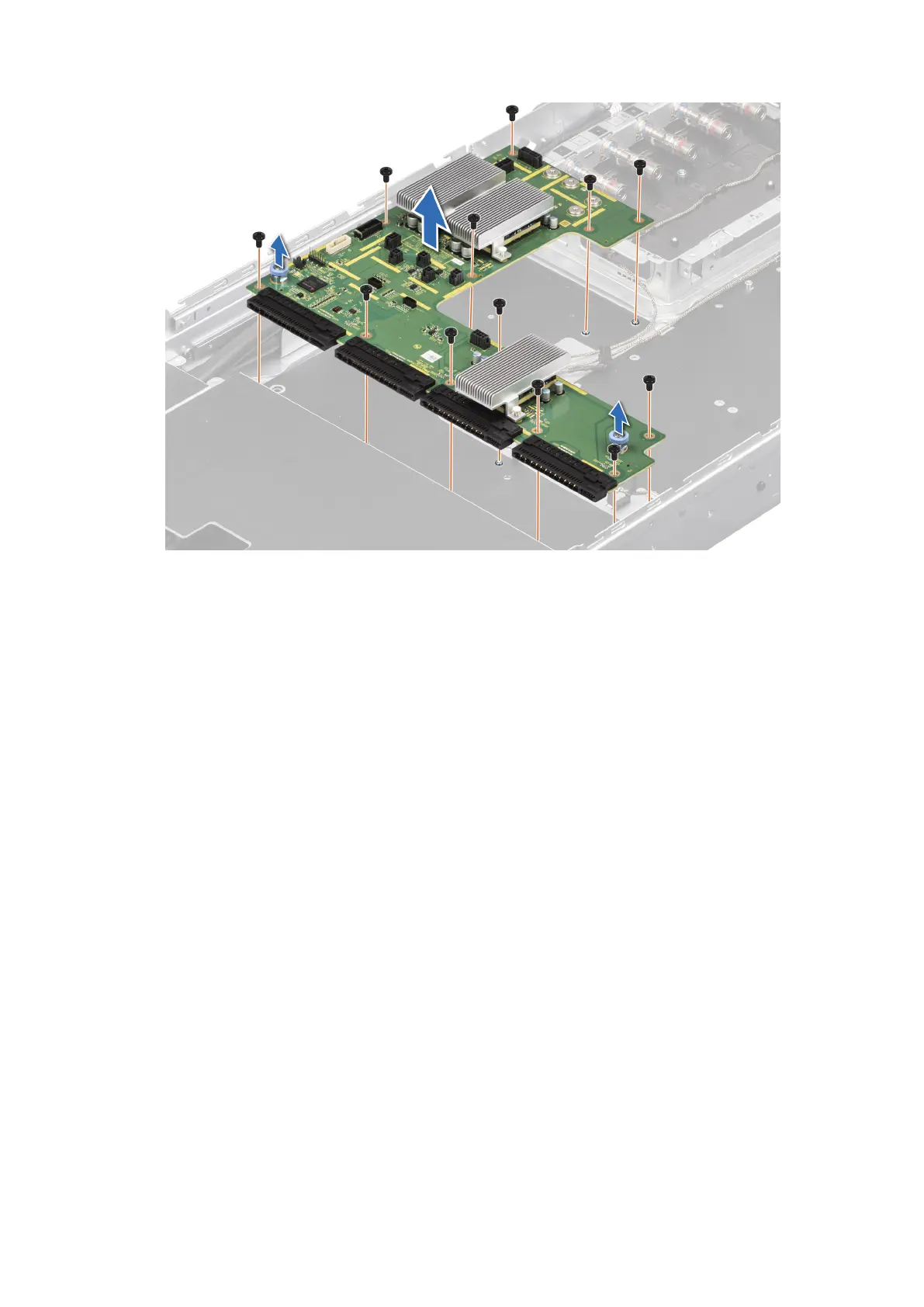

Figure 165. Removing the PDB
Next steps
Replace the PDB for Intel GPU configurations.
Installing the PDB for Intel GPU configurations
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system .
3. Disconnect the cables from the connector on the system board and the storage tray.
4. Remove the storage tray.
5. Remove the risers.
6. Remove the VSB cables from the system board.
7. Remove lower brace cover.
8. Disconnect all the cables from the system board and make note of all the cable connections. For more information, see
Cabling diagram.
9. Disconnect the liquid cooling tubes from the Manifold for DLC module and keep in on the system board and make sure do not
damage any connectors on the system board.
10. Remove the system board tray.
11. Disconnect the liquid cooling tubes from the Manifold for the connectors 6, 7, 8.
12. Remove the VSB cables from the PDB.
13. Disconnect the cables from the connector on the PDB.
14. Remove the power supply units.
Steps
1. Holding the blue holders, align and insert the PDB into the chassis. Using the Phillips 2 screwdriver, tighten the screws to
secure the PDB in to the chassis.
178
Installing and removing system components
