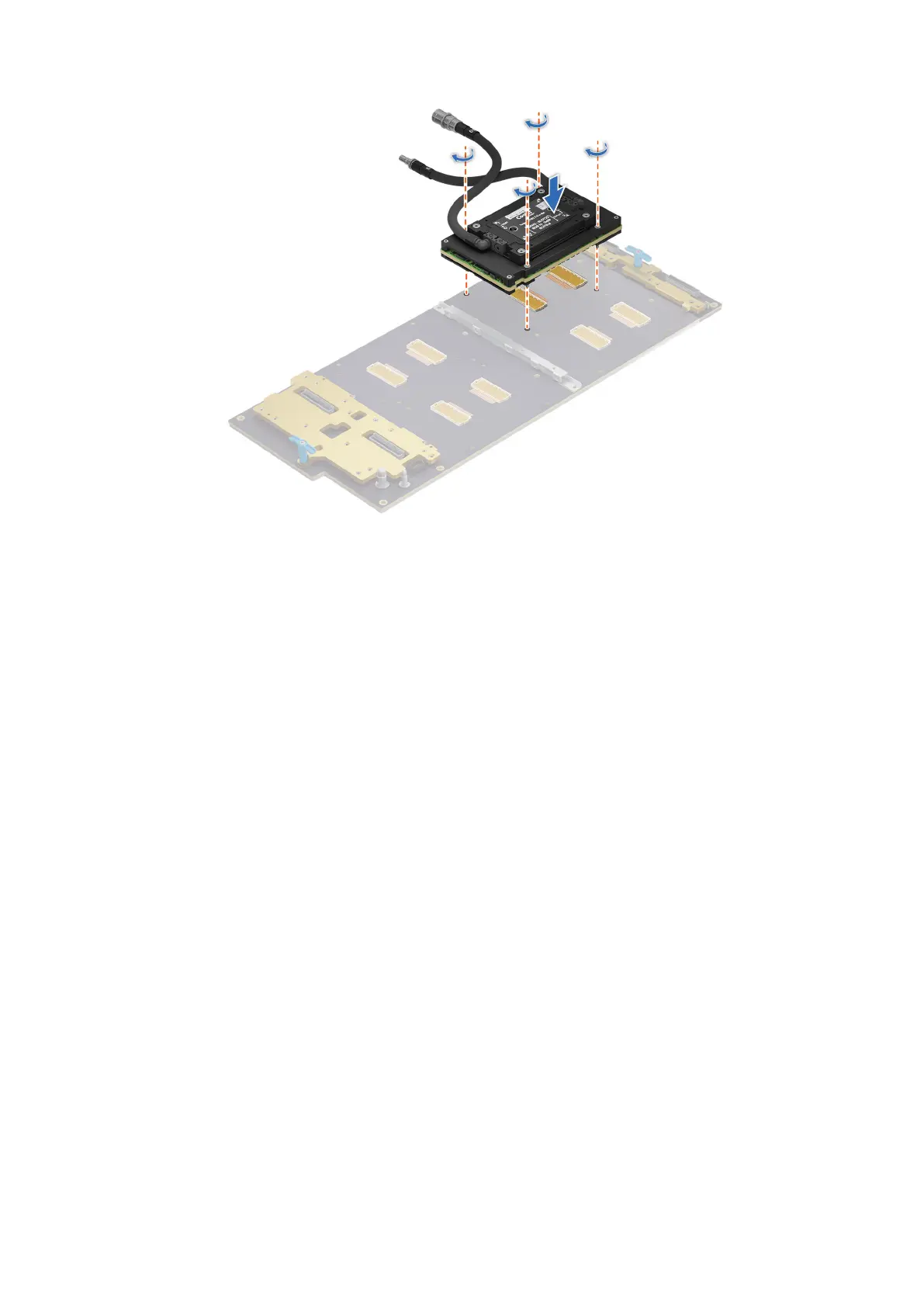

Figure 206. Installing the GPU with GPU module
Next steps
1. Install the sensor tray.
2. Plug the cold plate tubes to the Manifold Liquid cooling module.
3. Slide in the system board tray.
4. Reconnect the liquid cooling tubes 11 and 12 from the Manifold for DLC module.
5. Install the lower brace cover.
6. Reconnect all the cables onto the system board. For more information, see Cabling diagram.
7. Install the risers.
8. Install the storage tray.
9. Install the VSB cables on the system board.
10. Follow the procedure listed in the After working inside your system.
Removing the GPU board for Intel GPU configurations
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system .
3. Remove the storage tray.
4. Remove the risers.
5. Remove the VSB cables from the system board.
6. Disconnect all the cables from the system board and make note of all the cable connections. For more information, see
Cabling diagram.
7. Remove lower brace cover.
8. Disconnect the liquid cooling tubes 11 and 12 from the Manifold for DLC module and keep in on the system board and make
sure do not damage any connectors on the system board.
9. Slide out the system board tray.
10. Remove the CBB cold plate module.
11. Unplug the cold plate tubes from the Manifold Liquid cooling module.
12. Remove the sensor tray.
13. If you want to replace the whole GPU board, remove the GPU and GPU cold plate.
202
Installing and removing system components
