Cable routing for Intel GPU Configurations

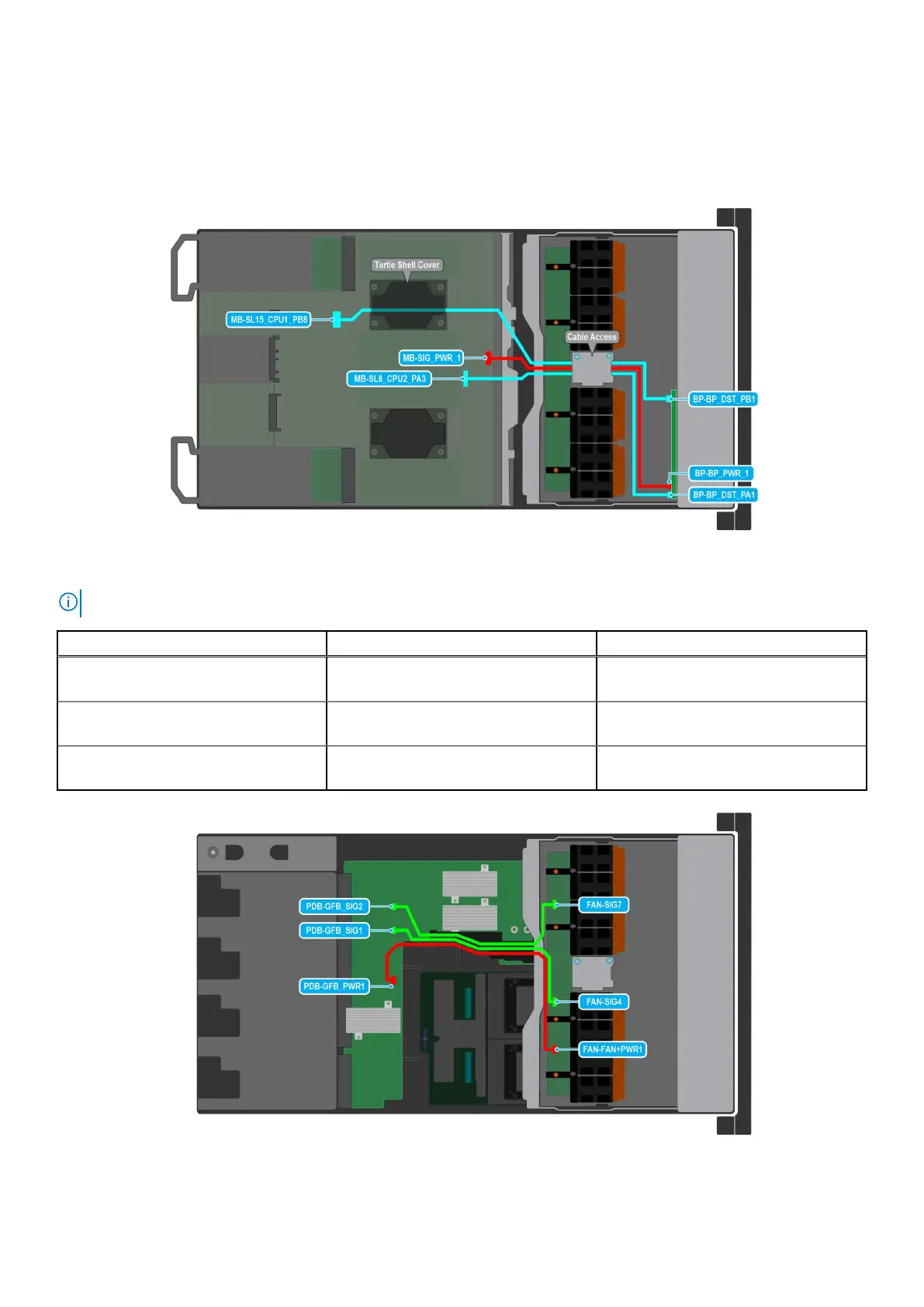

Figure 71. 4 x 2.5-inch Backplane cable connections on the system board for Intel GPU Configurations
NOTE: Make sure you route the SL15_CPU1_PB8 cable via processor 1 turtle shell.
Order From To
1 MB-SL6_CPU2_PA3 (signal connector
on system board)
BP-BP_DST_PA1 (backplane signal
connector )
2 MB-SIG_PWR_1 (system board power
connector)
BP-BP_PWR_1 (backplane power
connector)
3 MB-SL15_CPU1_PB8 (signal connector
on system board)
BP-BP_DST_PB1(backplane signal
connector)
Figure 72. Fan cables connection from the fan board of the Storage tray to the PDB of the bottom layer for the Intel
GPU configurations
