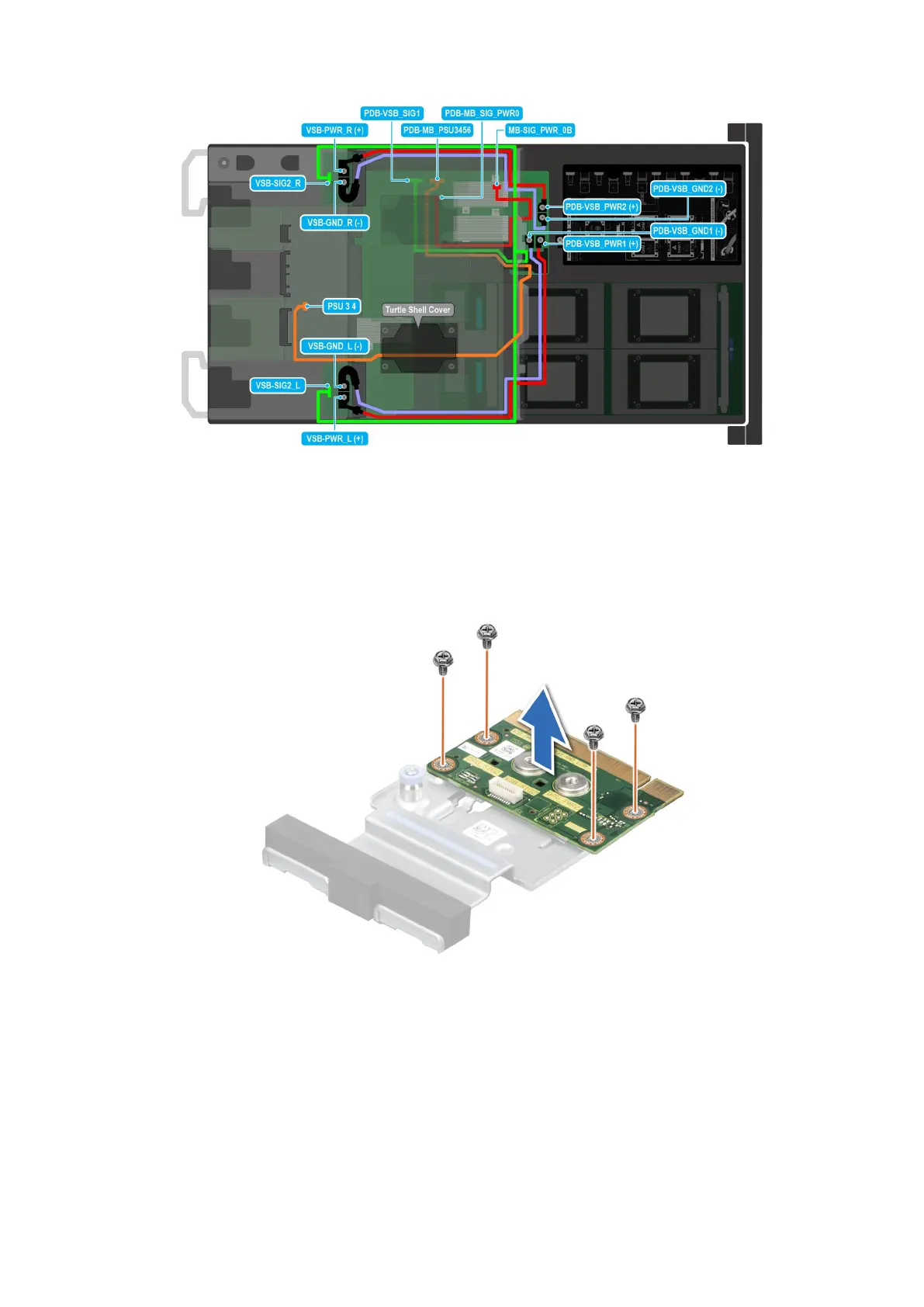

Figure 62. Cabling diagram
6. For NVIDIA GPU configurations, disconnect the VSB cables from the system board. Disconnect the VSB cables from
the PDB2 of the storage tray. Remove the storage tray. Disconnect the power cable from the PBD of the bottom layer
connected on to the PDB2 on the storage tray. Remove the system board tray. Disconnect the VSB cables from the PDB on
the bottom layer.
7. Remove all the screws and lift the VSB from the VSB tray.
Figure 63. Remove the VSB from the VSB tray
Next steps
Replace the Versabay assembly.
96
Installing and removing system components
