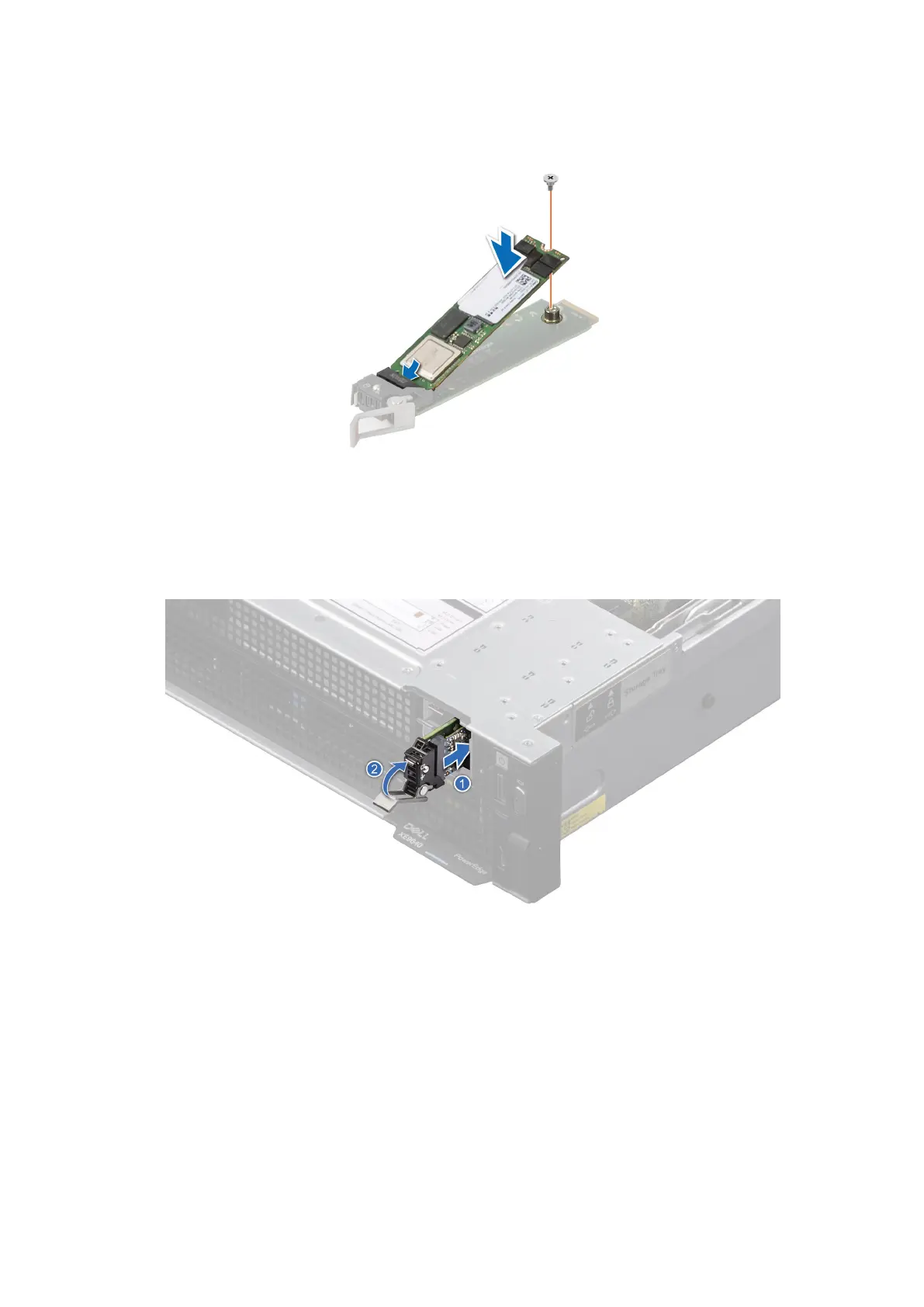

Figure 59. Installing the M.2 SSD
9. Slide the BOSS-N1 card carrier into the BOSS-N1 module slot.
10. Close the BOSS-N1 card carrier release latch to lock the carrier in place.
Figure 60. Installing the BOSS-N1 card carrier
Next steps
1. Install the riser 1A for Intel GPU configurations or install the riser 1B for NVIDIA GPU configurations.
2. Follow the procedure listed in After working inside your system.
94
Installing and removing system components
