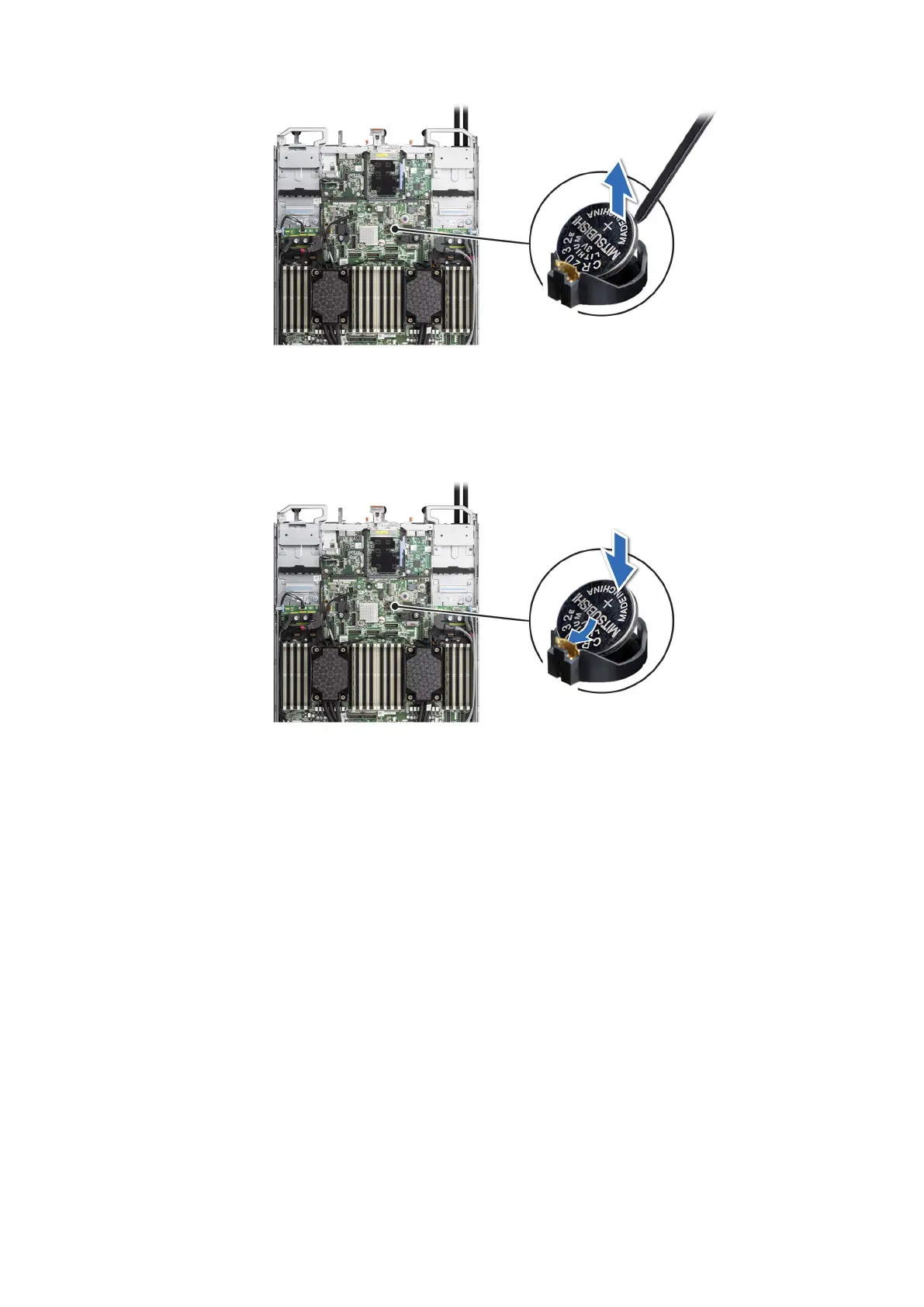

Figure 133. Removing the system battery
2. To install a new system battery:
a. Hold the battery with the positive side facing up and slide it under the securing tabs.
b. Press the battery into the connector until it snaps into place.
Figure 134. Installing the system battery
Next steps
1. Install the riser 1A for Intel GPU configurations or install the riser 1B for NVIDIA GPU configurations.
2. Follow the procedure listed in After working inside your system.
3. Confirm that the battery is operating properly, by performing the following steps:
a. Enter the System Setup, while booting, by pressing F2.
b. Enter the correct time and date in the System Setup Time and Date fields.
c. Exit the System Setup.
d. To test the newly installed battery, check the time and date at least an hour after installing the battery.
e. Enter the System Setup and if the time and date are still incorrect, see Getting help section.
150
Installing and removing system components
