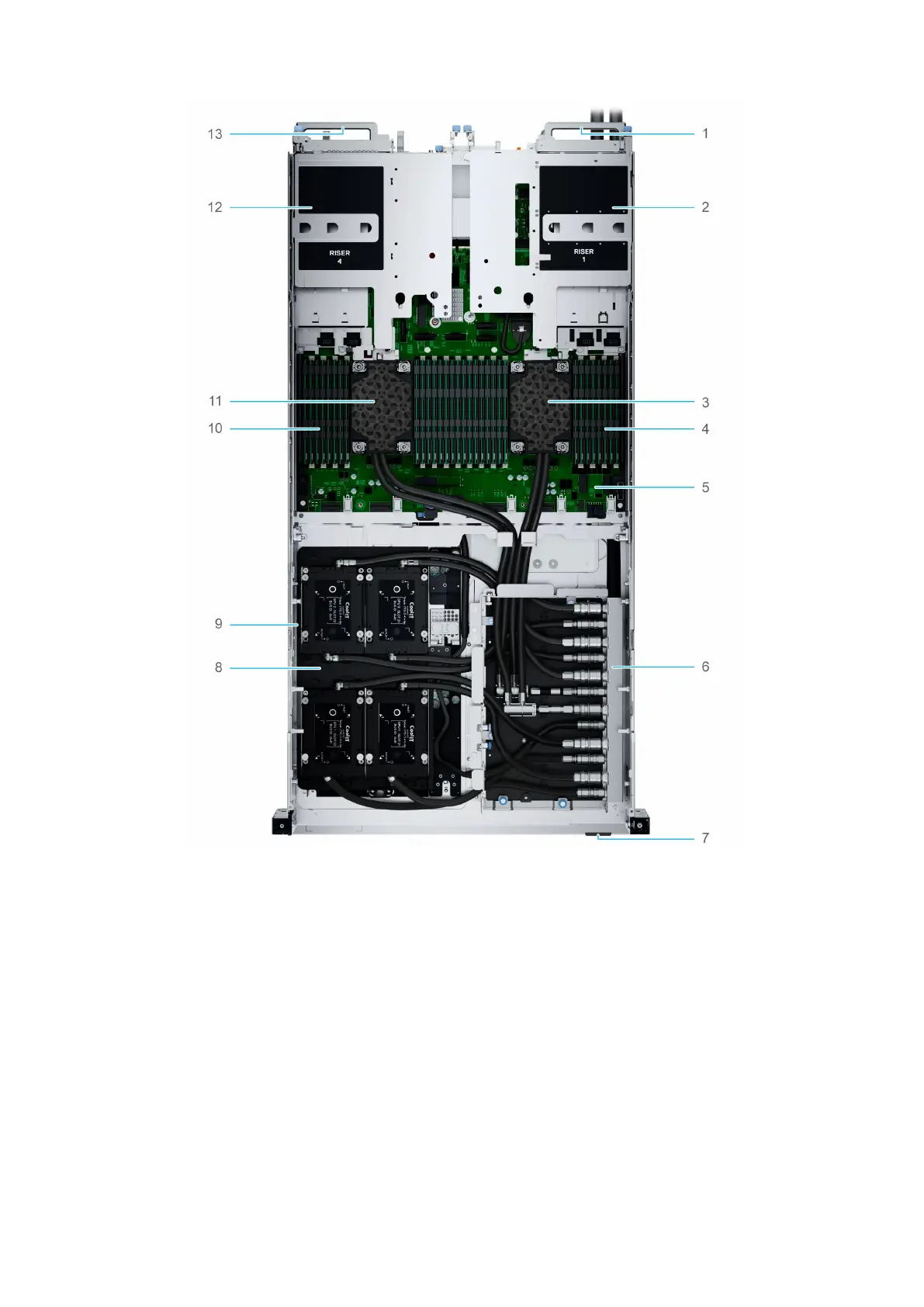

Figure 7. XE9640 with processors and NVIDIA GPUs - inside the system
1. System handle
2. Riser 1
3. Processor 1 with cold plate
4. Memory modules for processor 1
5. System board
6. Manifold Liquid cooling tray
7. Express service tag
8. Intel GPU cold plate
9. GPU board
10. Memory modules for processor 2
11. Processor 2 with cold plate
12. Riser 4
13. System handle
