Dell PowerEdge XE9640 - Page 162

Using both the hands, one hand holding the handle and another one holding the system handle, align system board tray
alignment slot into T-standoffs on chassis.

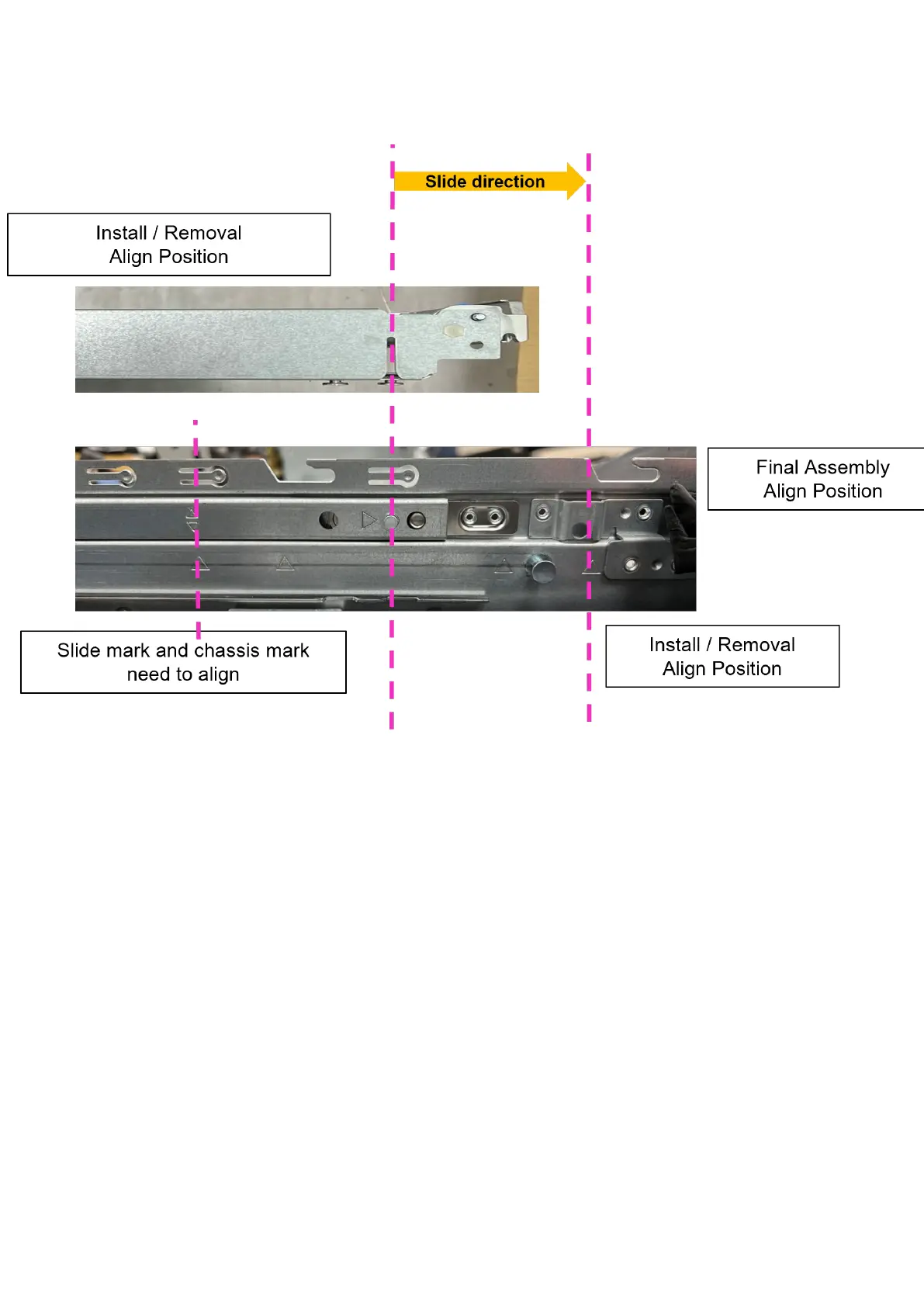

Figure 145. Alignment position
2. Hold the system board tray, slide it toward front of the chassis until the tray firmly locks in its place.
3. Unlock the two blue plungers near to the handle and the handle firmly locks into the chassis.
162
Installing and removing system components
