a. Lift the GPU assembly handle to disengage the GPU tray clips.
b. Lift the clips to release them from the clip holders.
c. Ensure that the clips are free and lower the GPU assembly handle.

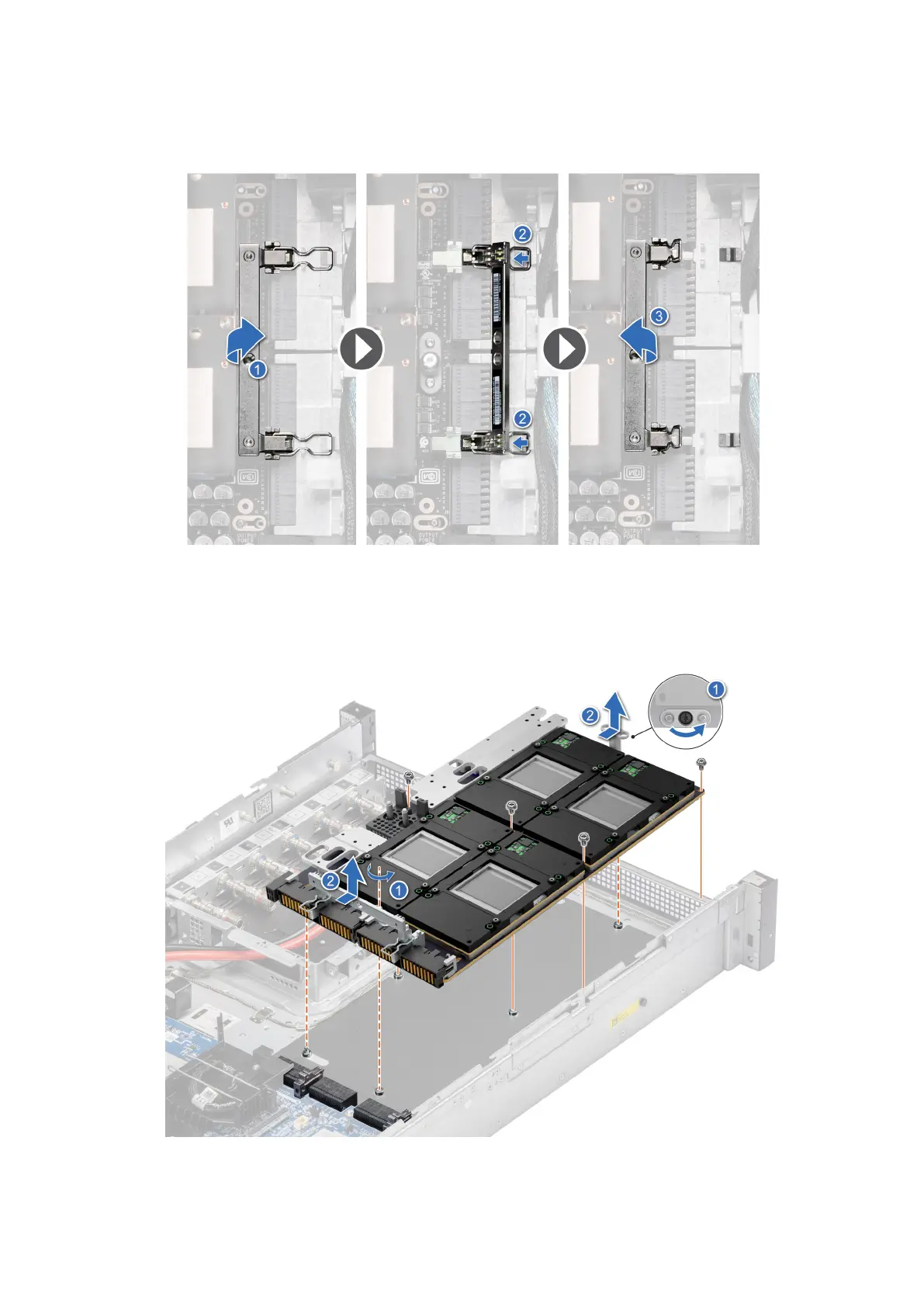

Figure 259. Unlocking the GPU assembly handle
3. Using the Phillips 2 screwdriver, remove the screws securing the GPU board from the chassis. Loosen the captive screws
securing the GPU board to the GPU tray and push the GPU board to the left holding the standoffs, to disengage from the
tray. Lift the GPU board from the tray.
Figure 260. Removing the GPU board
Installing and removing system components
