● Slide out the system board tray.
● Unplug the GPU cold plate tubes from the Manifold liquid cooling module.
● Remove the System board tray.
● Disconnect all the liquid cooling tubes from the Manifold.
4. For Intel GPU configurations:
● Remove the storage tray.
● Remove the risers.
● Remove the VSB cables from the system board.
● Remove lower brace cover.
● Disconnect all the cables from the system board and make note of all the cable connections. For more information, see
Cabling diagram.
● Disconnect the liquid cooling tubes 11 and 12 from the Manifold for DLC module and keep in on the system board and
make sure do not damage any connectors on the system board.
● Slide out the system board tray.
● Unplug the cold plate tubes from the Manifold Liquid cooling module.
Steps
1. Using the Phillips 2 screwdriver, loosen the thumb screws on the lower brace of the chassis. Lift up the lower brace away
from the chassis.

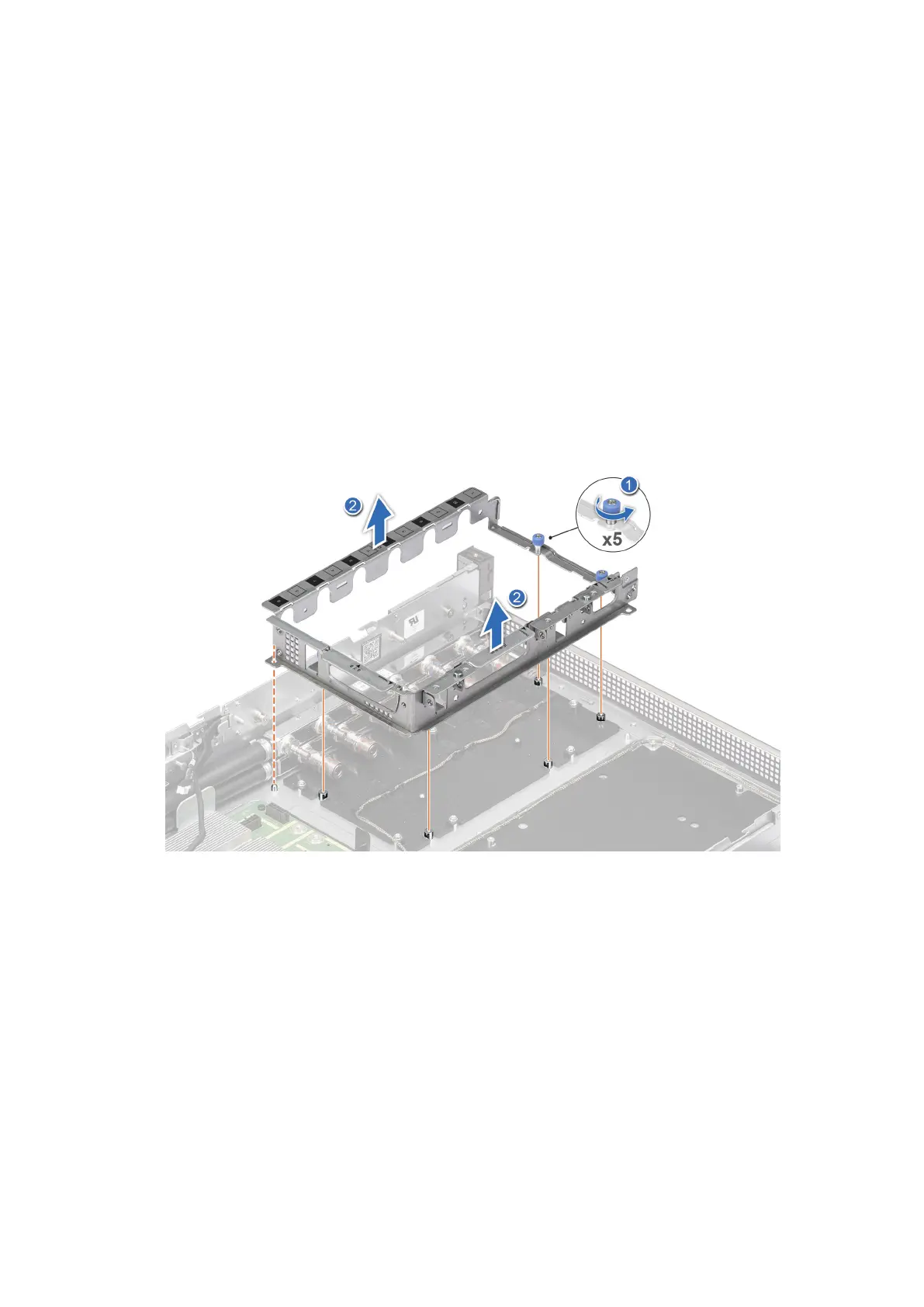

Figure 283. Removing the lower brace
2. Using the Torx 15 screwdriver, remove the screws from the manifold. Lift the tube out of the channel. Slide the manifold
toward rear of the chassis along the T-pin and lift up the manifold from the slots on the chassis.
252
