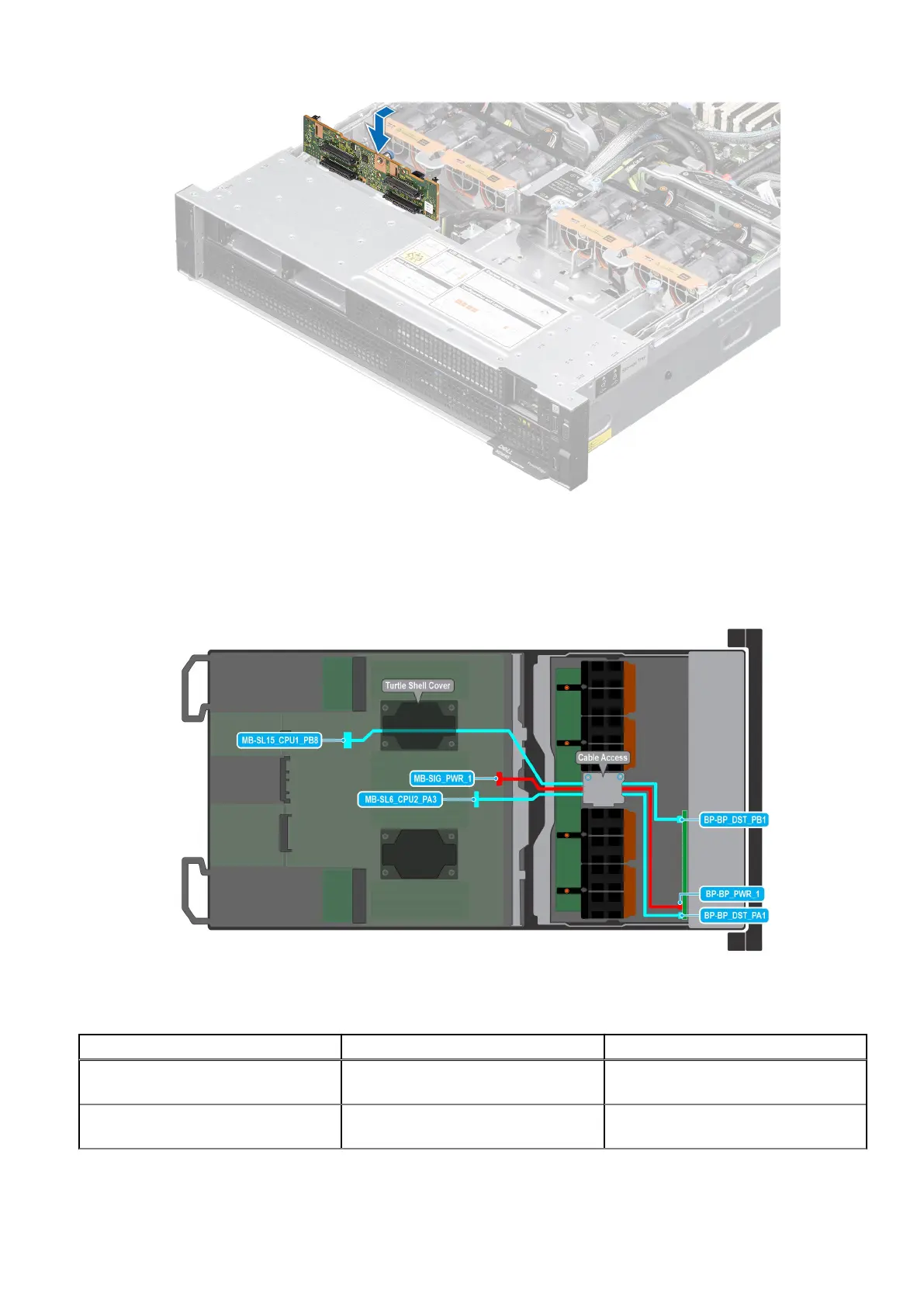

Figure 43. Installing the drive backplane
Next steps
1. Connect the drive backplane cables to the backplane, signal and power cables on the system board.
Figure 44. Cabling diagram
Table 64. 4 x 2.5-inch backplane cable connections
Order From To
1 MB-SL6_CPU2_PA3 (signal connector
on system board)
BP-BP_DST_PA1 (backplane signal
connector )
2 MB-SIG_PWR_1 (system board power
connector)
BP-BP_PWR_1 (backplane power
connector)
Installing and removing system components 83
