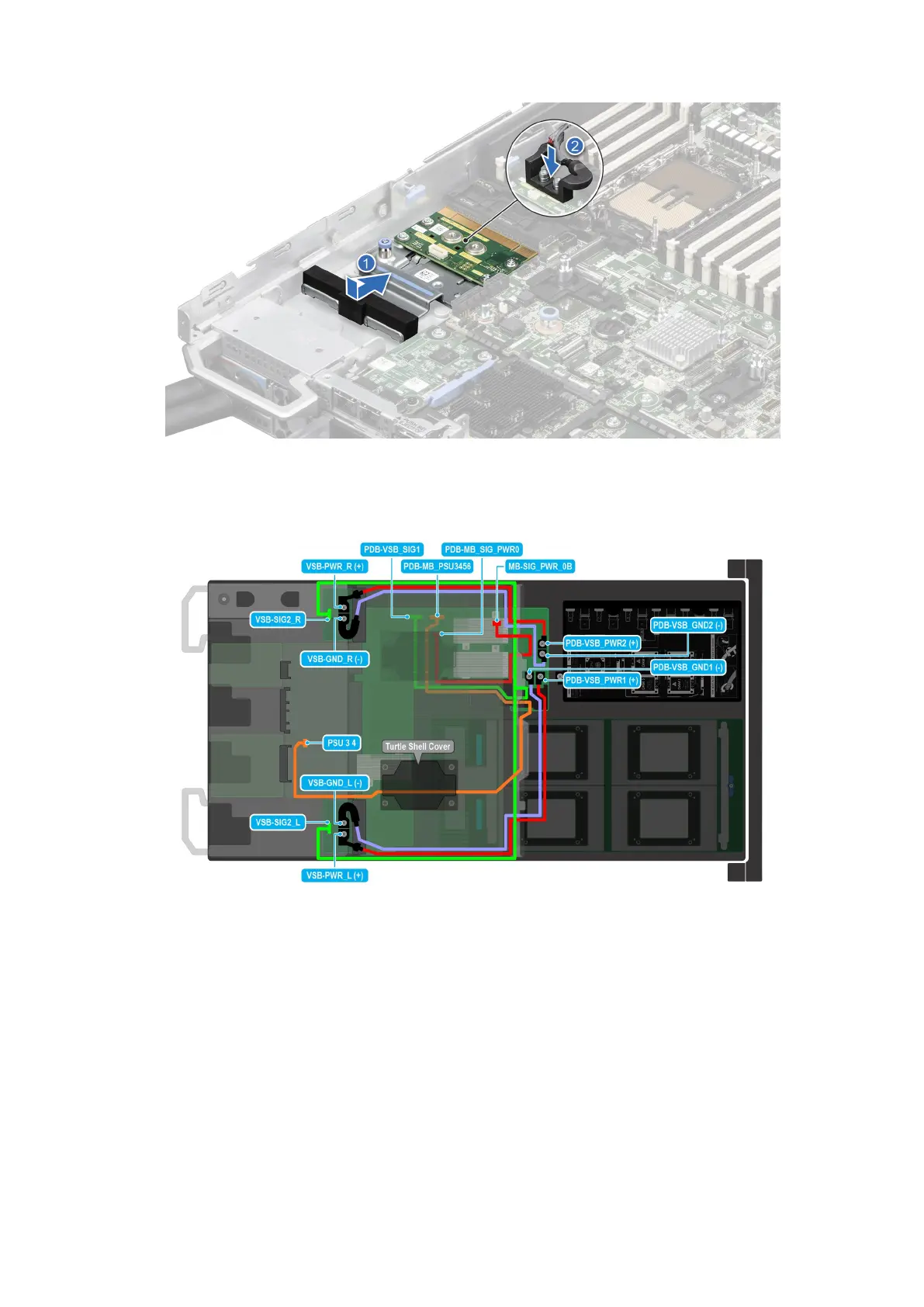

Figure 65. Installing the VSB assembly

4. For Intel GPU configurations, reconnect the VSB cables on the PDB of the bottom layer. Install the system board tray, and

then install the storage tray into the chassis. Reconnect the VSB cables on the system board.

Figure 66. Cabling diagram

5. For NVIDIA GPU configurations, reconnect the VSB cables on the PDB of the bottom layer. Install the system board tray,

and then install the storage tray into the chassis. Reconnect the VSB cables on the PBD2 of the storage tray and on the

system board.

6. Reconnect the signal cable on to the VSB.

Next steps

1. Install the riser 1A and 4A for Intel GPU configurations or install the riser 1B and 4B for NVIDIA GPU configurations.

2. Follow the procedure listed in After working inside your system.

Installing and removing system components
