3. Remove the air shroud.
About this task

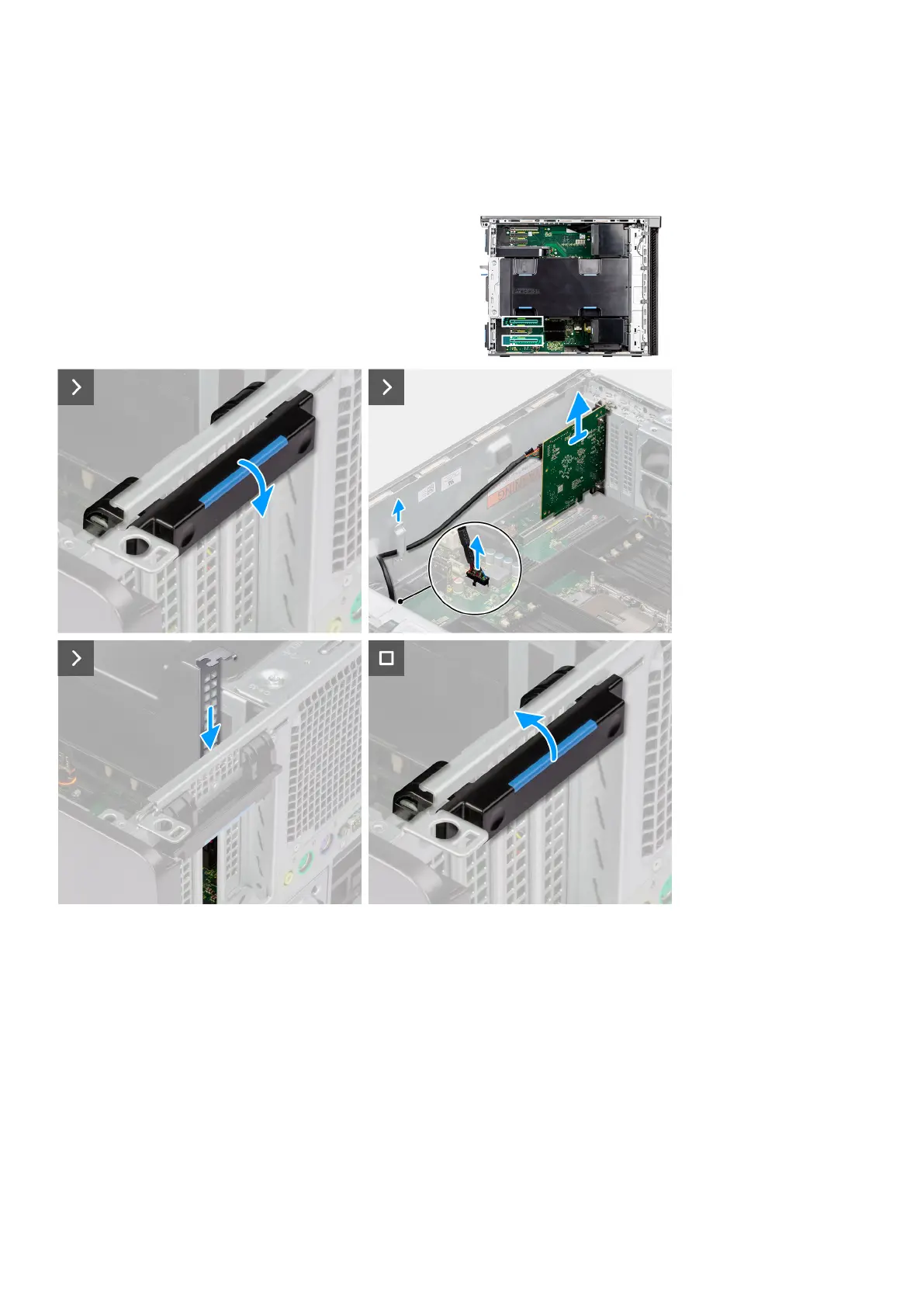

The following images indicate the location of the Thunderbolt 4 PCIe card and provide a visual representation of the removal
procedure.
Steps
1. Push the PCIe latch to open the PCIe door.
2. Disconnect the Thunderbolt 4 PCIe cable from the connector on the system board.
3. Unroute the Thunderbolt 4 PCIe cable from the routing clip on the chassis.
4. Lift and remove the Thunderbolt 4 PCIe card away from the expansion-card slot.
5. Align and place the PCIe filler into the PCIe slot and close the PCIe latch.
Installing the Thunderbolt 4 PCIe card
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
